Kubota L3560 vs Kubota L3800

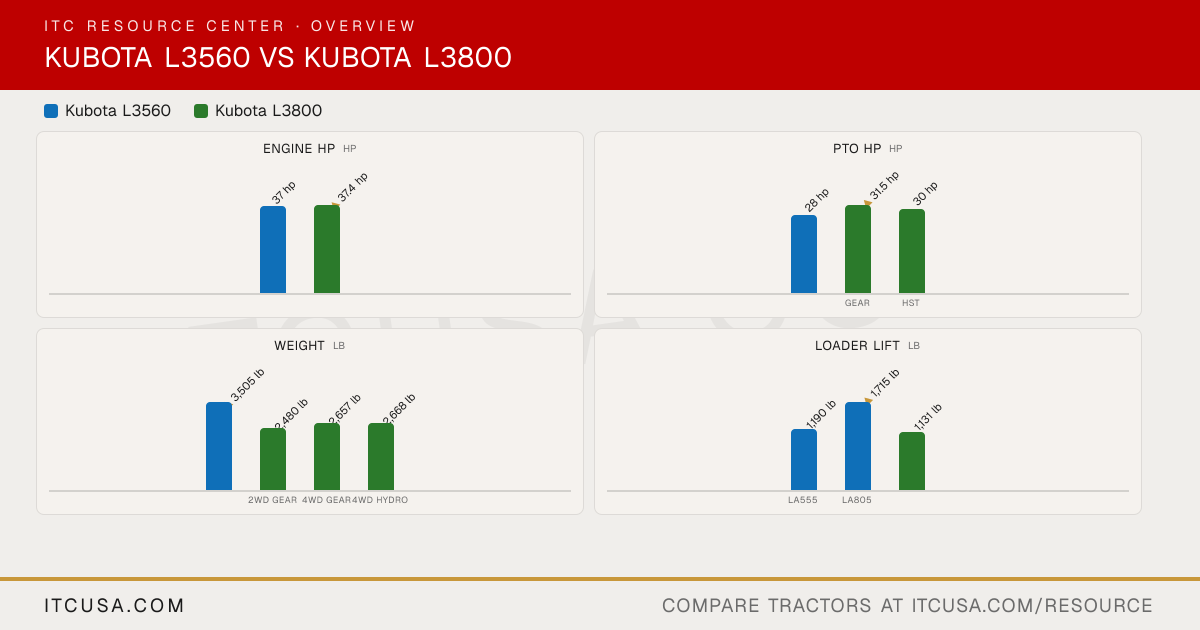

Across 7 measurable specs, the Kubota L3560 leads 5 categories to 2. Machine pages: Kubota L3560 and Kubota L3800.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3560	KubotaL3800

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1803-CR-E4-GL2	D1803
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Diesel, 3-cylinder, liquid-cooled
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	37 hp	37.4 hp
PTO Power	28 hp	Gear: 31.5 hp; HST: 30 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Dry paper, dual element	Not Published
Fuel System	Electronic CRS (Common Rail System)	Not Published
Alternator	40 A, 12 V	Not Published
▶Hydraulics
Pump Type	Tandem pump - gear type	Not Published
Implement Flow	8.1 gpm	6.3 gpm
Steering Flow	4.7 gpm	Not Published
Total Hydraulic Flow	12.8 gpm	Not Published
Overall Hydraulic Pump Flow	12.8 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (up to 3 optional)	Not Published
No. of Optional Remote Valves	Optional, up to 3 (double-acting valve or float detent valve options, any position)	Not Published
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	10 gal
Coolant Capacity	7.9 qt	Not Published
Crankcase Capacity	7.1 qt	Not Published
Transmission / Hydraulic System Capacity	11.1 gal	Gear: 7.1 gal; HST: 6.2 gal
Front Axle Fluid Capacity	6.9 qt	Not Published
▶PTO & Hitch
PTO Type	Live independent (hydraulic clutch)	Not Published
PTO Rear	540 rpm @ 2476 engine rpm	540 rpm
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity	3,750 lb	Not Published
Hitch Lift Capacity (at 24”)	2646 lb	Not Published
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic	Gear: 8-speed constant mesh; HST: hydrostatic
No. of Speeds	3-Range, 6 speeds (H-DS), infinitely variable in each	Gear: 8F/4R; HST: infinite (3-range)
Max Travel Speed (Forward)	16.5 mph	Not Published
Max Travel Speed (Reverse)	14.9 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, standard	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc type, mechanically activated	Wet disc
Seat Suspension & Adjustability	Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)	Not Published
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Bevel gear front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	115.0 in (without 3-point hitch)	2WD: 110.6 in; 4WD: 106.3 in
Overall Width	59.8 in	55.1 in
Wheelbase	71.1 in	63.3 in
Ground Clearance	13.5 in	2WD: 13.6 in; 4WD: 13.4 in
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	Not Published
Height to Top of ROPS	97.2 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	3505 lb	2WD gear: 2480 lb; 4WD gear: 2657 lb; 4WD hydro: 2668 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	2WD: 5.00-15 front; 4WD: 7.2-16 front; 11.2-24 rear
R1 Agricultural - Front	7.0-16	2WD: 5.00-15; 4WD: 7.2-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	27x10.50-15	2WD: 23x8.50-12; 4WD: 25x8.50-14
R3 Turf - Rear	41x18LL-16.1	13.6-16
R4 Industrial - Front	10-16.5	27x8.50-15 (4WD)
R4 Industrial - Rear	420/70-24	15-19.5
▶Loader & Attachments
Quick Attach Loader System	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	LA524 quick attach loader
Loader Model	LA555 or LA805	LA524
Loader Lift Height	LA555: 96.4 in; LA805: 104.7 in	LA524: 94.3 in
Loader Lift Capacity (Full Height)	LA555: 1190 lb; LA805: 1715 lb	LA524: 1131 lb (at pin)
Loader Breakout Force	LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin)	LA524: 2462 lbf (at pin)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00	None tagged yet

Find a Kubota dealer near you→

Kubota L3560 vs Kubota L3800: Quick Answers

Which has more horsepower, the Kubota L3560 or the Kubota L3800?

The Kubota L3800 leads on engine hp at 37.4 hp hp, compared to 37 hp hp for the Kubota L3560.

Which has more PTO horsepower, the Kubota L3560 or the Kubota L3800?

The Kubota L3800 leads on pto hp at 31.5 hp hp, compared to 28 hp hp for the Kubota L3560.

Which is heavier, the Kubota L3560 or the Kubota L3800?

The Kubota L3560 leads on weight at 3,505 lb lb, compared to 2,668 lb lb for the Kubota L3800.

Which has more loader lift capacity, the Kubota L3560 or the Kubota L3800?

The Kubota L3560 leads on loader lift at 1,715 lb lb, compared to 1,131 lb lb for the Kubota L3800.
