Across 7 measurable specs, the Bad Boy Tractors 4035 leads 5 categories to 2. Machine pages: Bad Boy Tractors 4035 and Kubota L3800.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 4035 | Kubota L3800 |
|---|
| Engine HP (hp) | 35 hp | ▲ 37.4 hp |
| PTO HP (hp) | 29.5 hp | ▲ 31.5 hp |
| Weight (lb) | ▲ 3,163.6 lb | 2,668 lb |
| Loader Lift (lb) | ▲ 2,200 lb | 1,131 lb |
| 3-Pt Lift (24 in) (lb) | 2,425 lb | n/a |
| Lift Height (in) | ▲ 104 in | 94.3 in |
| Breakout Force (lbf) | ▲ 3,660 lbf | 2,462 lbf |
| Hydraulic Flow (gpm) | ▲ 12.6 gpm | 6.3 gpm |
| Travel Speed (mph) | 19.1 mph | n/a |

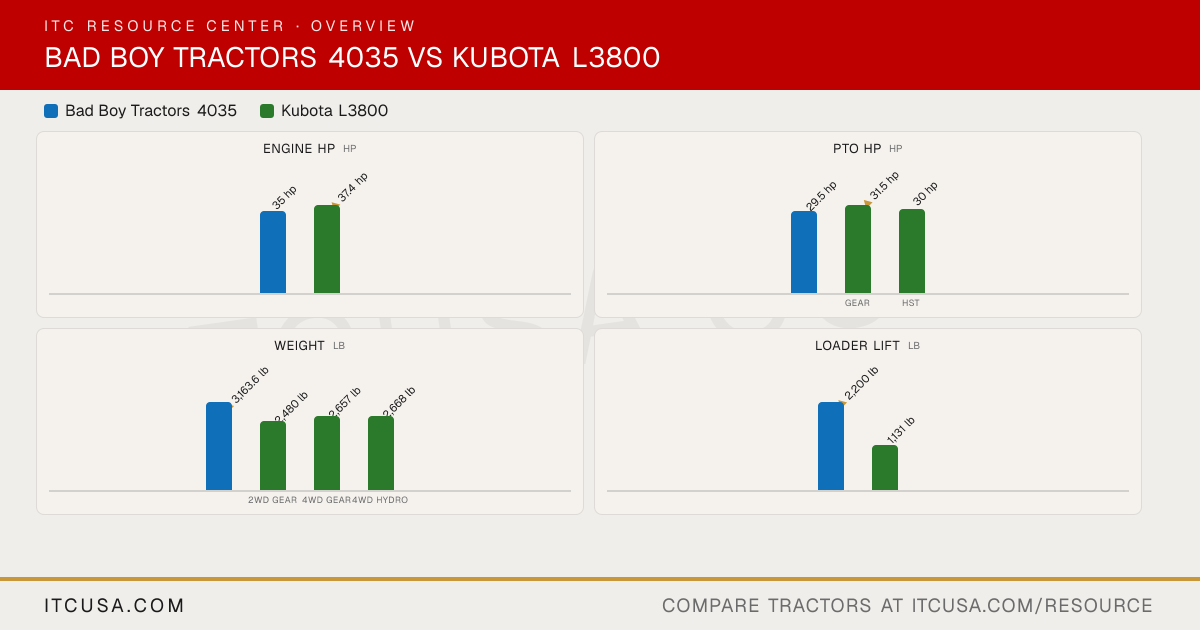

The headline numbers at a glance.
Bad Boy Tractors 4035Kubota L3800
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
▲3,163.6 lb
2,480 lb
2,657 lb
2,668 lb
2WD gear4WD gear4WD hydro
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors4035 | KubotaL3800 |
|---|
|
|---|
| Engine Manufacturer | TYM | Kubota |
|---|
| Engine Model | A1700N4-BUTR_4 | D1803 |
|---|
| Engine Type | Vertical, 4-stroke, water-cooled diesel | Diesel, 3-cylinder, liquid-cooled |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 104.7 in³ | 111.4 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2700 rpm |
|---|
| Engine Power (Gross) | 35 hp | 37.4 hp |
|---|
| PTO Power | 29.5 hp | Gear: 31.5 hp; HST: 30 hp |
|---|
| Engine Emissions Constraints | EPA Final Tier4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | 50 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 8.2 gpm | 6.3 gpm |
|---|
| Steering Flow | 4.4 gpm | Not Published |
|---|
| Total Hydraulic Flow | 12.6 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 12.6 gpm | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | Up to 2 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 7.13 gal | 10 gal |
|---|
| Coolant Capacity | 1.32 gal | Not Published |
|---|
| Crankcase Capacity | 1.14 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 9.77 gal | Gear: 7.1 gal; HST: 6.2 gal |
|---|
| Front Axle Fluid Capacity | 1.69 gal | Not Published |
|---|
|
|---|
| PTO Type | Independent | Not Published |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 3,306.9 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 2,425 lb | Not Published |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | Hydrostatic (HST), 3-range | Gear: 8-speed constant mesh; HST: hydrostatic |
|---|
| No. of Speeds | 3 range (HST) | Gear: 8F/4R; HST: infinite (3-range) |
|---|
| Max Travel Speed (Forward) | 19.08 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 19.08 mph | Not Published |
|---|
| Clutch | None (HST) | Not Published |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock | Rear differential lock standard |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet, multi-disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Selectable 4WD | Bevel gear front axle |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 134.88 in | 2WD: 110.6 in; 4WD: 106.3 in |
|---|
| Overall Width | 56.7 in | 55.1 in |
|---|
| Wheelbase | 65.7 in | 63.3 in |
|---|
| Ground Clearance | 15 in | 2WD: 13.6 in; 4WD: 13.4 in |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | 96.85 in | 91.7 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 85.9 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3,163.6 lb | 2WD gear: 2480 lb; 4WD gear: 2657 lb; 4WD hydro: 2668 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20 | 2WD: 5.00-15 front; 4WD: 7.2-16 front; 11.2-24 rear |
|---|
| R1 Agricultural - Front | 8.0-16 | 2WD: 5.00-15; 4WD: 7.2-16 |
|---|
| R1 Agricultural - Rear | 12.4-24 | 11.2-24 |
|---|
| R3 Turf - Front | Not Published | 2WD: 23x8.50-12; 4WD: 25x8.50-14 |
|---|
| R3 Turf - Rear | Not Published | 13.6-16 |
|---|
| R4 Industrial - Front | 28x8.50-15 | 27x8.50-15 (4WD) |
|---|
| R4 Industrial - Rear | 43x16.00-20 | 15-19.5 |
|---|
|
|---|
| Quick Attach Loader System | SSQA | LA524 quick attach loader |
|---|
| Loader Model | BBL400 | LA524 |
|---|
| Loader Lift Height | 104 in | LA524: 94.3 in |
|---|
| Loader Lift Capacity (Full Height) | 2,200 lb | LA524: 1131 lb (at pin) |
|---|
| Loader Breakout Force | 3,660 lb | LA524: 2462 lbf (at pin) |
|---|
|
|---|
| Warranty Length & Coverage | Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours | Not Published |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Bad Boy Tractors 4035 vs Kubota L3800: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 4035 or the Kubota L3800?
- The Kubota L3800 leads on engine hp at 37.4 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035.
- Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kubota L3800?
- The Kubota L3800 leads on pto hp at 31.5 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.
- Which is heavier, the Bad Boy Tractors 4035 or the Kubota L3800?
- The Bad Boy Tractors 4035 leads on weight at 3,163.6 lb lb, compared to 2,668 lb lb for the Kubota L3800.
- Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kubota L3800?
- The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,131 lb lb for the Kubota L3800.
