Bad Boy Tractors 4035 vs Kubota L3560

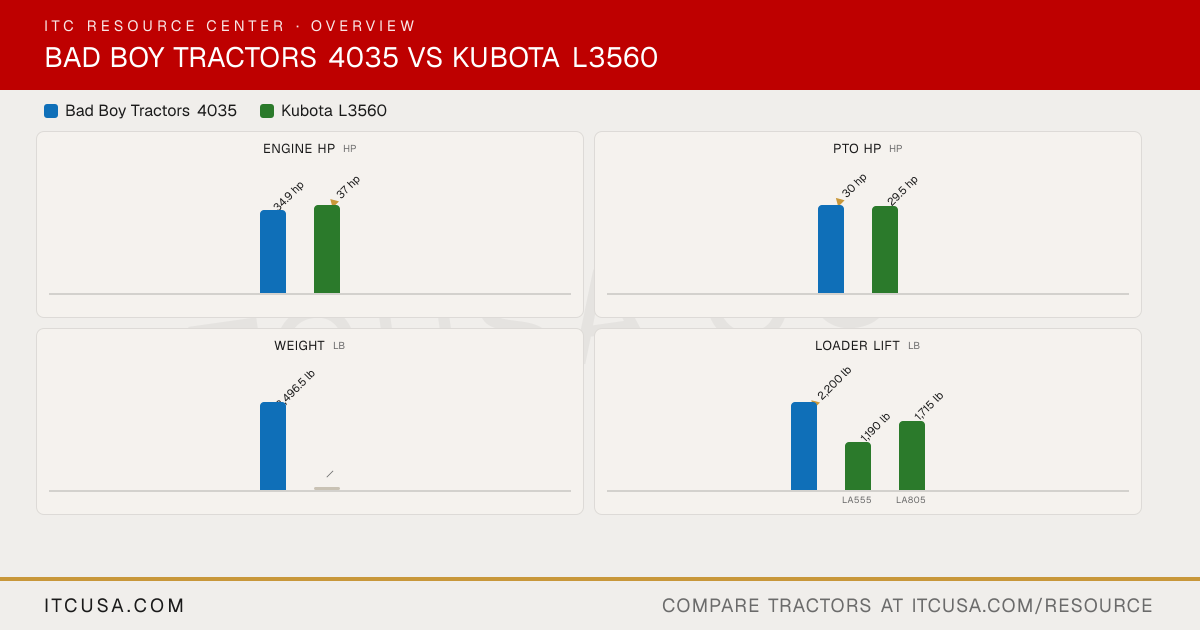

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 4035, 4 to the Kubota L3560. Machine pages: Bad Boy Tractors 4035 and Kubota L3560.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	KubotaL3560

▶Engine
PTO Power	30 hp	29.5 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Dry paper, dual element
Engine Type	3 Cylinder, Water-Cooled, Diesel	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
Fuel System	Diesel fuel	Electronic CRS (Common Rail System)
Displacement	104.7 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Water cooled	Liquid-cooled
Engine Manufacturer	A1700N4-BUTC_4	Kubota
Engine Power (Gross)	34.9 hp	37 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
▶Weight
Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Published
Weight with Cab and Loader	3,728 lbs	Not Published
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Not Published	Tandem pump - gear type
Steering Flow	4.4 gpm	DT (4WD), GST (4WD): 4.9 gpm; HST (4WD), HSTC (4WD, CAB): 4.7 gpm
Implement Flow	8.2 gpm	DT (4WD), GST (4WD): 8.3 gpm; HST (4WD), HSTC (4WD, CAB): 8.1 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	DT (4WD), GST (4WD): 13.2 gpm; HST (4WD), HSTC (4WD, CAB): 12.8 gpm
Hydraulic System Type	Open Center	Open center
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	DT (4WD), GST (4WD): 13.2 gpm; HST (4WD), HSTC (4WD, CAB): 12.8 gpm
No. of Optional Remote Valves	Optional (up to 2)	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 RPM	DT (4WD), GST (4WD): 540 rpm @ 2550 engine rpm; HST (4WD), HSTC (4WD, CAB): 540 rpm @ 2476 engine rpm
PTO Type	Independent	Live independent (hydraulic clutch)
Lift Control Type	Position Control	Position control
Hitch Lift Capacity	3,306.9 lb	3,858 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Cat 1	SAE Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	2,756 lb
▶Tire Options
R3 Turf - Rear	Not Published	41X18LL-16.1
R3 Turf - Front	Not Published	27X10.50-15
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	43X16.00-20	420/70-24
R4 Industrial - Front	28X8.50-15	10-16.5
R1 Agricultural - Rear	12.4-24 6PR	12.4-24
R1 Agricultural - Front	8.0-16 4PR	7.2-16
▶Fluid Capacity
Coolant Capacity	1.32 gal	7.9 qt
Crankcase Capacity	1.14 gal	7.1 qt
Fuel Tank Capacity	7.13 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	11.1 gal
▶Loader & Attachments
Loader Lift Height	104 in	LA555: 96.4 in; LA805: 104.7 in
Loader Breakout Force	3,660 lb	LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N)
Quick Attach Loader System	SSQA	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	LA555: 1190 lb; LA805: 1715 lb
▶Transmission & Drivetrain
Clutch	None (HST)	DT (4WD), GST (4WD): Dry type single stage; HST (4WD), HSTC (4WD, CAB): N/A
No. of Speeds	3 Range	DT (4WD): 8Fx8R; GST (4WD): 12Fx8R; HST (4WD), HSTC (4WD, CAB): 3-Range, 6 speeds (H-DS), infinitely variable in each
Transmission Type	HST (3-range)	DT (4WD): Gear; GST (4WD): Glide Shift; HST (4WD), HSTC (4WD, CAB): Hydrostatic
Max Travel Speed (Forward)	19.08 mph (range C)	DT (4WD), GST (4WD): 16.0 mph; HST (4WD), HSTC (4WD, CAB): 16.8 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	DT (4WD), GST (4WD): 15.2 mph; HST (4WD), HSTC (4WD, CAB): 15.1 mph
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock, standard
▶Chassis, Steering & Controls
Brakes	Wet multi-disc	Wet disc type, mechanically activated
Steering	Fully hydraulic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in	74.6 in
Overall Width	56.7 in	66.5 in
Overall Length	134.88 in.	—
Ground Clearance	15 in	15.9 in
Height to Top of ROPS	96.85 in	DT (4WD), GST (4WD), HST (4WD): 97.6 in; HSTC (4WD, CAB): Not Applicable
Height to Top of Cab Model	Not Applicable	DT (4WD), GST (4WD), HST (4WD): Not Applicable; HSTC (4WD, CAB): 91.1 in
Height to Top of ROPS (folded)	Not Published	DT (4WD), GST (4WD), HST (4WD): 90.6 in; HSTC (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	Not Published	8.9 ft (2.7 m)
Overall Length with 3-Point Hitch	134.88 in	129.5 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 4035 vs Kubota L3560: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Kubota L3560?

The Kubota L3560 leads on engine hp at 37 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kubota L3560?

The Bad Boy Tractors 4035 leads on pto hp at 30 hp hp, compared to 29.5 hp hp for the Kubota L3560.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kubota L3560?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,715 lb lb for the Kubota L3560.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Kubota L3560?

The Kubota L3560 leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035.
