Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaL4701

n/a

KubotaLX4020

Comparison loaded for 2 tractors.

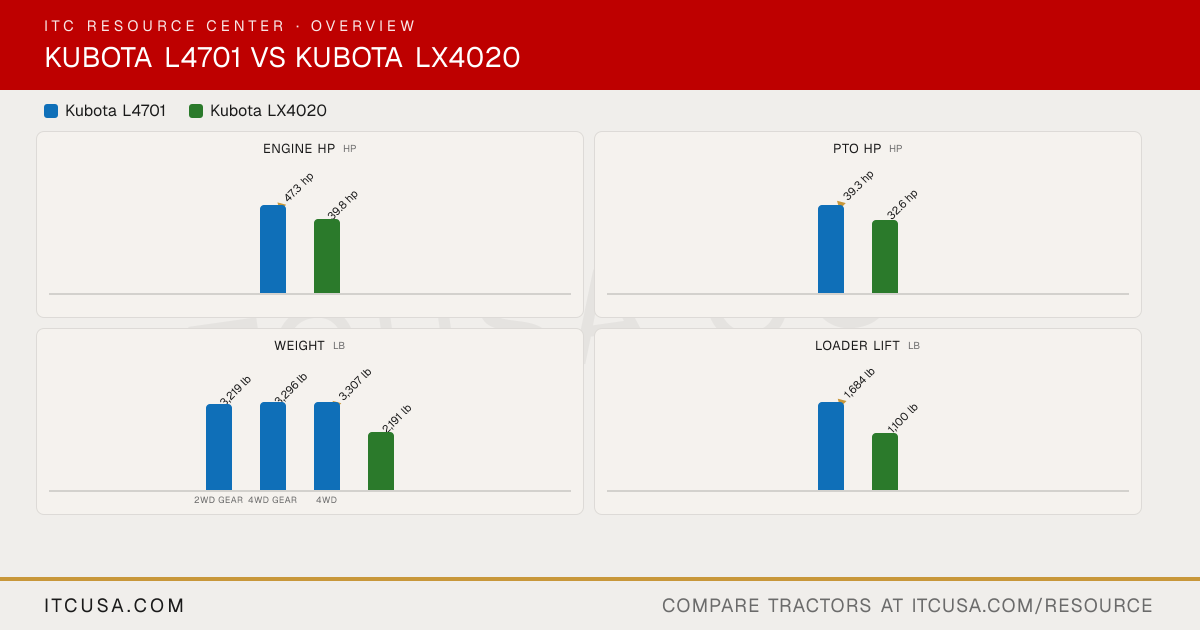

The headline numbers at a glance.

Kubota L4701Kubota LX4020

Engine HPhp

▲47.3 hp

39.8 hp

PTO HPhp

▲39.3 hp

32.6 hp

Weightlb

3,219 lb

3,296 lb

▲3,307 lb

2,191 lb

2WD gear4WD gear4WD

Loader Liftlb

▲1,684 lb

1,100 lb

3-Pt Lift (24 in)lb

▲2,310 lb

1,962 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4701	KubotaLX4020


Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-E4-LB1	V1505-CR-TE5-D40R4
Engine Type	Liquid-cooled, 4-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection	Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
No. of Cylinders	4	4
Displacement	148.5 in³	91.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	47.3 hp	39.8 hp
PTO Power	F (2WD gear), DT (4WD gear): 39.3 hp; HST (4WD): 37.8 hp	32.6 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled, water with pressurized radiator	Pressurized radiator
Air Cleaner	Dry paper dual element	6 in paper filter (with dual element)
Fuel System	Common rail (CRS) direct injection, electronic fuel injection	Direct injection
Alternator	40 A, 12 V	Not Published

Pump Type	Open center tandem pump, gear type	Dual pump
Implement Flow	7.8 gpm	5.4 gpm
Steering Flow	4.7 gpm	4.1 gpm
Total Hydraulic Flow	12.5 gpm	9.5 gpm
Overall Hydraulic Pump Flow	12.5 gpm	9.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 3 (self canceling detent valve or float detent valve options)	Optional, up to 2

Fuel Tank Capacity	13.5 gal	8.5 gal
Coolant Capacity	6.9 qt	4.5 qt
Crankcase Capacity	8.7 qt	5.0 qt
Transmission / Hydraulic System Capacity	10.6 gal	5.5 gal
Front Axle Fluid Capacity	6.9 qt	4.8 qt

PTO Type	Live independent PTO with hydraulic clutch	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	2460 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2870 lb	2535 lb
Hitch Lift Capacity (at 24”)	2310 lb	1962 lb
Lift Control Type	Position control (draft control optional)	Position control valve

Transmission Type	F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range	Hydrostatic transmission
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range	3 ranges
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 14.9 mph; HST (4WD): 15.8 mph	17.0 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 14.3 mph; HST (4WD): 14.2 mph	13.0 mph
Clutch	F (2WD gear), DT (4WD gear): Dry type single stage; HST (4WD): No transmission clutch	Not Published
Differential Lock & Limited Slip Options	Rear differential lock standard	Differential lock standard

Frame Type	Two-post foldable ROPS (factory certified) with retractable seat belt	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Mechanical wet disc type, pedals can be locked together	Multi-plate wet disk
Seat Suspension & Adjustability	Not Published	Seat Type: Deluxe; Seat Suspension: Adjustable
Front Axle Type	F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing	Not Published
Front Axle Rating	F (2WD gear): 3300 lb (at 50.4 in tread); DT (4WD gear), HST (4WD): 3300 lb (at 45.5 in tread)	Not Published
Drawbar Capacity	1430 lb	1100 lb

Overall Length with 3-Point Hitch	F (2WD gear): 130.3 in; DT (4WD gear), HST (4WD): 127.4 in	116.1 in
Overall Width	62.4 in	53.7 in
Wheelbase	F (2WD gear): 72.8 in; DT (4WD gear), HST (4WD): 72.6 in	66.7 in
Ground Clearance	15.2 in	8.9 in
Min. Turn Radius without Brakes	F (2WD gear): 10.2 ft; DT (4WD gear), HST (4WD): 11.5 ft	7.5 ft (with brake applied)
Height to Top of ROPS	91.7 in	88.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	85.6 in

Tractor Weight (Base)	F (2WD gear): 3219 lb; DT (4WD gear): 3296 lb; HST (4WD): 3307 lb	2191 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	F (2WD gear): 7.5L-15 (6-16 optional); DT (4WD gear), HST (4WD): 8.3-16	180/85D12
R1 Agricultural - Rear	14.9-24	320/85D16
R3 Turf - Front	27x8.5-15 (2WD and 4WD; 27x10.5-15 optional on 4WD)	24X8.50-14
R3 Turf - Rear	44x18-20	13.6-16
R4 Industrial - Front	10-16.5 (4WD)	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	17.5L-24 (4WD)	14-17.5 or 15-19.5

Quick Attach Loader System	2-Lever Quick Coupler, no tools required to attach and detach loader	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	LA765	LA545
Loader Lift Height	LA765: 105.2 in	87.6 in
Loader Lift Capacity (Full Height)	LA765: 1684 lb	1100 lb
Loader Breakout Force	LA765: 3153 lbf	Not Published

Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
