Compare Tractors

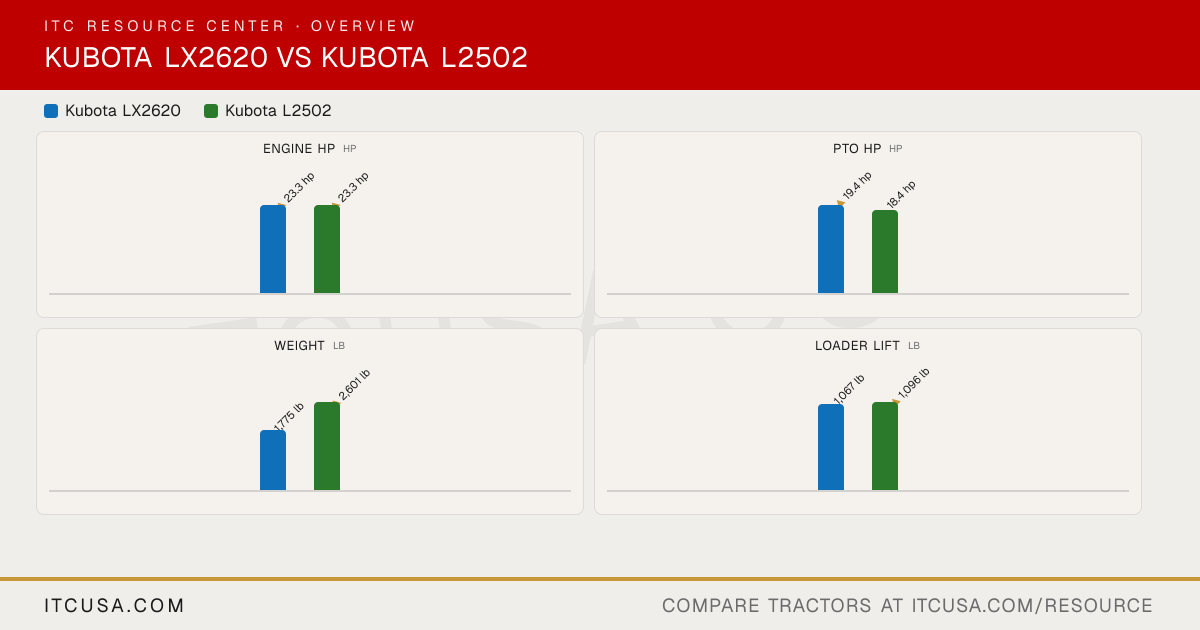

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable
Differential Lock & Limited Slip Options
Differential lock standard
Rear differential lock, pedal operated
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Integral type power steering
Brakes
Multi-plate wet disc
Mechanical, wet disc type
Seat Suspension & Adjustability
Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type
Not Published
Cast-iron front axle
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
730 lb
Overall Length with 3-Point Hitch
101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model
LA535
LA526
Loader Lift Height
LA535: 84 in
LA526: 94.8 in
Loader Lift Capacity (Full Height)
LA535: 1067 lb
LA526: 1,096 lb
Loader Breakout Force
Not Published
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
