Kubota L2502 vs Kubota LX2620

Across 8 measurable specs, the Kubota LX2620 leads 4 categories to 3 (1 tied). Machine pages: Kubota L2502 and Kubota LX2620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

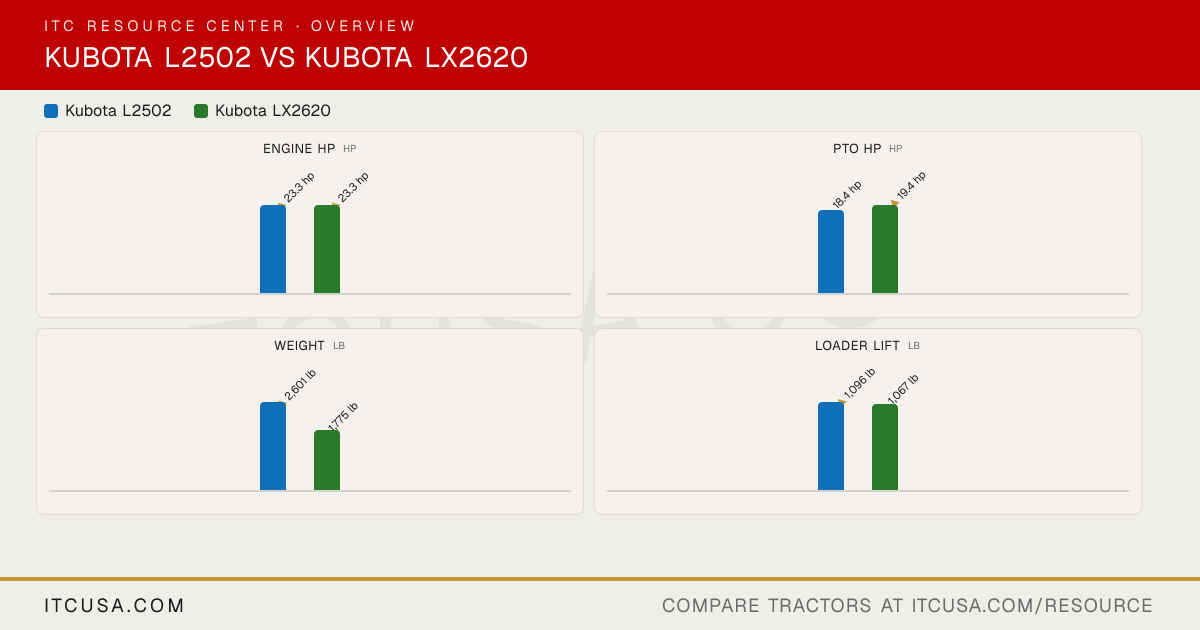

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL2502	KubotaLX2620

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1703-M-DI-E4 / D1703-M-DI-E4K	D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDC); D1305-E4-D36R (LX2620SUHSD)
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	100.5 in³	77.0 in³
Rated Engine Speed	2200 rpm	2500 rpm
Engine Power (Gross)	23.3 hp	23.3 hp
PTO Power	18.4 hp	19.4 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Dry type, single element	4.5 in paper filter with dual filter
Fuel System	Direct injection	Indirect injection
Alternator	40 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Dual pump
Implement Flow	5.2 gpm	Not Published
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	8.28 gpm (5.15 + 3.13, computed)	8.7 gpm
Overall Hydraulic Pump Flow	8.28 gpm (5.15 + 3.13, computed)	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	7.1 gal (LX2620HSD); 8.5 gal (LX2620HSDC); 7.1 gal (LX2620SUHSD)
Coolant Capacity	6.3 qt	4.5 qt (LX2620HSD); 5.7 qt (LX2620HSDC); 4.5 qt (LX2620SUHSD)
Crankcase Capacity	6.0 qt	4.2 qt
Transmission / Hydraulic System Capacity	HST (4WD): 6.9 gal; DT (2WD): 7.4 gal; DT (4WD): 7.5 gal	4.0 gal
Front Axle Fluid Capacity	4.8 qt	5.0 qt
▶PTO & Hitch
PTO Type	DT (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-independent hydraulic PTO with PTO brake, wet	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	2500 rpm (LX2620HSD); 2500 rpm (LX2620HSDC); Optional (LX2620SUHSD)
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity	1874 lb	2139 lb
Hitch Lift Capacity (at 24”)	1389 lb	1676 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	DT (2WD), DT (4WD): Constant mesh with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	Hydrostatic transmission (HST), 3 ranges
No. of Speeds	DT (2WD), DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	3 ranges
Max Travel Speed (Forward)	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph	11.2 mph
Max Travel Speed (Reverse)	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 10.3 mph	8.4 mph
Clutch	DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Hydrostatic power steering
Brakes	Mechanical, wet disc type	Multi-plate wet disc
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Front Axle Type	Cast-iron front axle	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	730 lb	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	DT (2WD): 110.6 in; DT (4WD), HST (4WD): 108.5 in (without 3-point hitch)	101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Overall Width	55.1 in	53.7 in
Wheelbase	DT (2WD): 63.8 in; DT (4WD), HST (4WD): 63.4 in	65.6 in
Ground Clearance	DT (2WD): 13.6 in; DT (4WD), HST (4WD): 13.4 in	14.6 in
Min. Turn Radius without Brakes	DT (2WD): 7.9 ft; DT (4WD), HST (4WD): 8.2 ft (with brake applied)	6.9 ft (with brake applied)
Height to Top of ROPS	91.7 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	84.6 in
▶Weight
Tractor Weight (Base)	DT (2WD): 2601 lb; DT (4WD): 2811 lb; HST (4WD): 2833 lb	1775 lb (LX2620HSD); 2249 lb (LX2620HSDC); 1775 lb (LX2620SUHSD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial (R14 hybrid also offered)
R1 Agricultural - Front	DT (2WD): 5.0-15; DT (4WD), HST (4WD): 7.2-16	180/85D12 (7-12)
R1 Agricultural - Rear	11.2-24	320/85D16 (12.4-16)
R3 Turf - Front	DT (2WD): 23X8.50-12; DT (4WD), HST (4WD): 25X8.50-14	24x8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5	14-17.5 or 15-19.5
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	LA535: 2-lever quick coupler standard; Swift-tach optional
Loader Model	LA526	LA535
Loader Lift Height	LA526: 94.8 in	LA535: 84 in
Loader Lift Capacity (Full Height)	LA526: 1,096 lb	LA535: 1067 lb
Loader Breakout Force	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00	None tagged yet

Find a Kubota dealer near you→

Kubota L2502 vs Kubota LX2620: Quick Answers

Which has more horsepower, the Kubota L2502 or the Kubota LX2620?

They are effectively tied: both machines are rated at 23.3 hp hp for engine hp.

Which has more PTO horsepower, the Kubota L2502 or the Kubota LX2620?

The Kubota LX2620 leads on pto hp at 19.4 hp hp, compared to 18.4 hp hp for the Kubota L2502.

Which is heavier, the Kubota L2502 or the Kubota LX2620?

The Kubota L2502 leads on weight at 2,601 lb lb, compared to 1,775 lb lb for the Kubota LX2620.

Which has more loader lift capacity, the Kubota L2502 or the Kubota LX2620?

The Kubota L2502 leads on loader lift at 1,096 lb lb, compared to 1,067 lb lb for the Kubota LX2620.

Which has more three-point hitch lift capacity, the Kubota L2502 or the Kubota LX2620?

The Kubota LX2620 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,389 lb lb for the Kubota L2502.
