Bad Boy Tractors 1022 vs Kubota LX2620

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota LX2620 leads 8 categories to 0. Machine pages: Bad Boy Tractors 1022 and Kubota LX2620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1022	Kubota LX2620
Engine HP (hp)	21.5 hp	▲ 23.3 hp
PTO HP (hp)	15.4 hp	▲ 19.4 hp
Weight (lb)	1,433 lb	▲ 1,775 lb
Loader Lift (lb)	617 lb	▲ 1,067 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,676 lb
Lift Height (in)	78.5 in	▲ 84 in
Breakout Force (lbf)	1,253 lbf	n/a
Hydraulic Flow (gpm)	6.3 gpm	▲ 8.7 gpm
Travel Speed (mph)	7.8 mph	▲ 11.2 mph

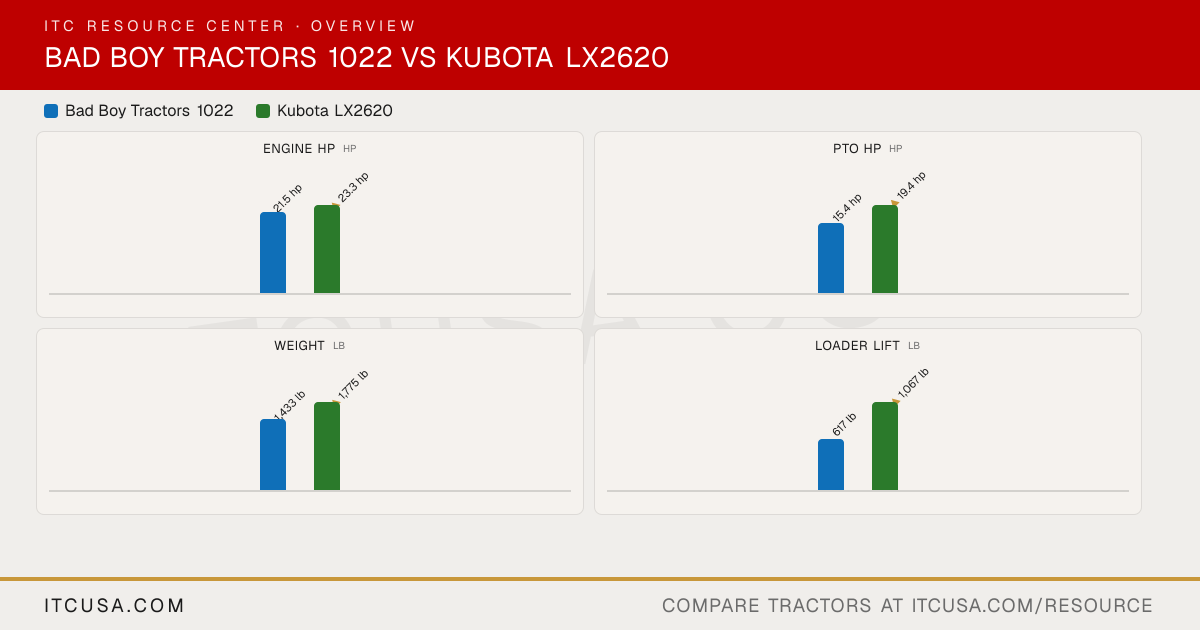

The headline numbers at a glance.

Bad Boy Tractors 1022Kubota LX2620

Engine HPhp

21.5 hp

▲23.3 hp

PTO HPhp

15.4 hp

▲19.4 hp

Weightlb

1,433 lb

▲1,775 lb

Loader Liftlb

617 lb

▲1,067 lb

3-Pt Lift (24 in)lb

679 lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	KubotaLX2620


Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNM74F	D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDC); D1305-E4-D36R (LX2620SUHSD)
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	60.6 in³	77.0 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	23.3 hp
PTO Power	15.4 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Single dry element	4.5 in paper filter with dual filter
Fuel System	Indirect injection	Indirect injection
Alternator	40 A, 12 V	Not Published

Pump Type	Single gear pump with flow divider	Dual pump
Implement Flow	4.17 gpm	Not Published
Steering Flow	2.11 gpm	Not Published
Total Hydraulic Flow	6.3 gpm	8.7 gpm
Overall Hydraulic Pump Flow	6.97 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	7.1 gal (LX2620HSD); 8.5 gal (LX2620HSDC); 7.1 gal (LX2620SUHSD)
Coolant Capacity	3.7 qt	4.5 qt (LX2620HSD); 5.7 qt (LX2620HSDC); 4.5 qt (LX2620SUHSD)
Crankcase Capacity	2.1 qt	4.2 qt
Transmission / Hydraulic System Capacity	3.6 gal	4.0 gal
Front Axle Fluid Capacity	2.6 qt	5.0 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	2500 rpm (LX2620HSD); 2500 rpm (LX2620HSDC); Optional (LX2620SUHSD)
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	2139 lb
Hitch Lift Capacity (at 24”)	679 lb	1676 lb
Lift Control Type	Position control	Position control valve

Transmission Type	Hydrostatic (HST)	Hydrostatic transmission (HST), 3 ranges
No. of Speeds	2 range	3 ranges
Max Travel Speed (Forward)	7.8 mph	11.2 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock standard

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb

Overall Length with 3-Point Hitch	94.2 in	101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Overall Width	44.5 in	53.7 in
Wheelbase	53.1 in	65.6 in
Ground Clearance	8.3 in	14.6 in
Min. Turn Radius without Brakes	86.6 in	6.9 ft (with brake applied)
Height to Top of ROPS	86.6 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	84.6 in

Tractor Weight (Base)	1,433 lb	1775 lb (LX2620HSD); 2249 lb (LX2620HSDC); 1775 lb (LX2620SUHSD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial (R14 hybrid also offered)
R1 Agricultural - Front	16x7.50-9	180/85D12 (7-12)
R1 Agricultural - Rear	24x12.00-12	320/85D16 (12.4-16)
R3 Turf - Front	18x8.5-10	24x8.50-14
R3 Turf - Rear	26x12.00-12	13.6-16
R4 Industrial - Front	18x8.5-10	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	26x12.00-12	14-17.5 or 15-19.5

Quick Attach Loader System	Quick attach front loader	LA535: 2-lever quick coupler standard; Swift-tach optional
Loader Model	BBL100	LA535
Loader Lift Height	78.5 in	LA535: 84 in
Loader Lift Capacity (Full Height)	617 lb	LA535: 1067 lb
Loader Breakout Force	1,253 lbf	Not Published

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Find a Bad Boy dealer near you Find a Kubota dealer near you

Bad Boy Tractors 1022 vs Kubota LX2620: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the Kubota LX2620?: The Kubota LX2620 leads on engine hp at 23.3 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Kubota LX2620?: The Kubota LX2620 leads on pto hp at 19.4 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which is heavier, the Bad Boy Tractors 1022 or the Kubota LX2620?: The Kubota LX2620 leads on weight at 1,775 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kubota LX2620?: The Kubota LX2620 leads on loader lift at 1,067 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Kubota LX2620?: The Kubota LX2620 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1022	Kubota LX2620
Engine HP (hp)	21.5 hp	▲ 23.3 hp
PTO HP (hp)	15.4 hp	▲ 19.4 hp
Weight (lb)	1,433 lb	▲ 1,775 lb
Loader Lift (lb)	617 lb	▲ 1,067 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,676 lb
Lift Height (in)	78.5 in	▲ 84 in
Breakout Force (lbf)	1,253 lbf	n/a
Hydraulic Flow (gpm)	6.3 gpm	▲ 8.7 gpm
Travel Speed (mph)	7.8 mph	▲ 11.2 mph

The headline numbers at a glance.

Bad Boy Tractors 1022Kubota LX2620

Engine HPhp

21.5 hp

▲23.3 hp

PTO HPhp

15.4 hp

▲19.4 hp

Weightlb

1,433 lb

▲1,775 lb

Loader Liftlb

617 lb

▲1,067 lb

3-Pt Lift (24 in)lb

679 lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	KubotaLX2620


Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNM74F	D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDC); D1305-E4-D36R (LX2620SUHSD)
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	60.6 in³	77.0 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	23.3 hp
PTO Power	15.4 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Single dry element	4.5 in paper filter with dual filter
Fuel System	Indirect injection	Indirect injection
Alternator	40 A, 12 V	Not Published

Pump Type	Single gear pump with flow divider	Dual pump
Implement Flow	4.17 gpm	Not Published
Steering Flow	2.11 gpm	Not Published
Total Hydraulic Flow	6.3 gpm	8.7 gpm
Overall Hydraulic Pump Flow	6.97 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	7.1 gal (LX2620HSD); 8.5 gal (LX2620HSDC); 7.1 gal (LX2620SUHSD)
Coolant Capacity	3.7 qt	4.5 qt (LX2620HSD); 5.7 qt (LX2620HSDC); 4.5 qt (LX2620SUHSD)
Crankcase Capacity	2.1 qt	4.2 qt
Transmission / Hydraulic System Capacity	3.6 gal	4.0 gal
Front Axle Fluid Capacity	2.6 qt	5.0 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	2500 rpm (LX2620HSD); 2500 rpm (LX2620HSDC); Optional (LX2620SUHSD)
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	2139 lb
Hitch Lift Capacity (at 24”)	679 lb	1676 lb
Lift Control Type	Position control	Position control valve

Transmission Type	Hydrostatic (HST)	Hydrostatic transmission (HST), 3 ranges
No. of Speeds	2 range	3 ranges
Max Travel Speed (Forward)	7.8 mph	11.2 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock standard

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb

Overall Length with 3-Point Hitch	94.2 in	101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Overall Width	44.5 in	53.7 in
Wheelbase	53.1 in	65.6 in
Ground Clearance	8.3 in	14.6 in
Min. Turn Radius without Brakes	86.6 in	6.9 ft (with brake applied)
Height to Top of ROPS	86.6 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	84.6 in

Tractor Weight (Base)	1,433 lb	1775 lb (LX2620HSD); 2249 lb (LX2620HSDC); 1775 lb (LX2620SUHSD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial (R14 hybrid also offered)
R1 Agricultural - Front	16x7.50-9	180/85D12 (7-12)
R1 Agricultural - Rear	24x12.00-12	320/85D16 (12.4-16)
R3 Turf - Front	18x8.5-10	24x8.50-14
R3 Turf - Rear	26x12.00-12	13.6-16
R4 Industrial - Front	18x8.5-10	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	26x12.00-12	14-17.5 or 15-19.5

Quick Attach Loader System	Quick attach front loader	LA535: 2-lever quick coupler standard; Swift-tach optional
Loader Model	BBL100	LA535
Loader Lift Height	78.5 in	LA535: 84 in
Loader Lift Capacity (Full Height)	617 lb	LA535: 1067 lb
Loader Breakout Force	1,253 lbf	Not Published

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Find a Bad Boy dealer near you Find a Kubota dealer near you

Bad Boy Tractors 1022 vs Kubota LX2620: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the Kubota LX2620?

The Kubota LX2620 leads on engine hp at 23.3 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Kubota LX2620?

The Kubota LX2620 leads on pto hp at 19.4 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the Kubota LX2620?

The Kubota LX2620 leads on weight at 1,775 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kubota LX2620?

The Kubota LX2620 leads on loader lift at 1,067 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Kubota LX2620?

The Kubota LX2620 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
