Bad Boy Tractors 3026 vs Kubota LX2620

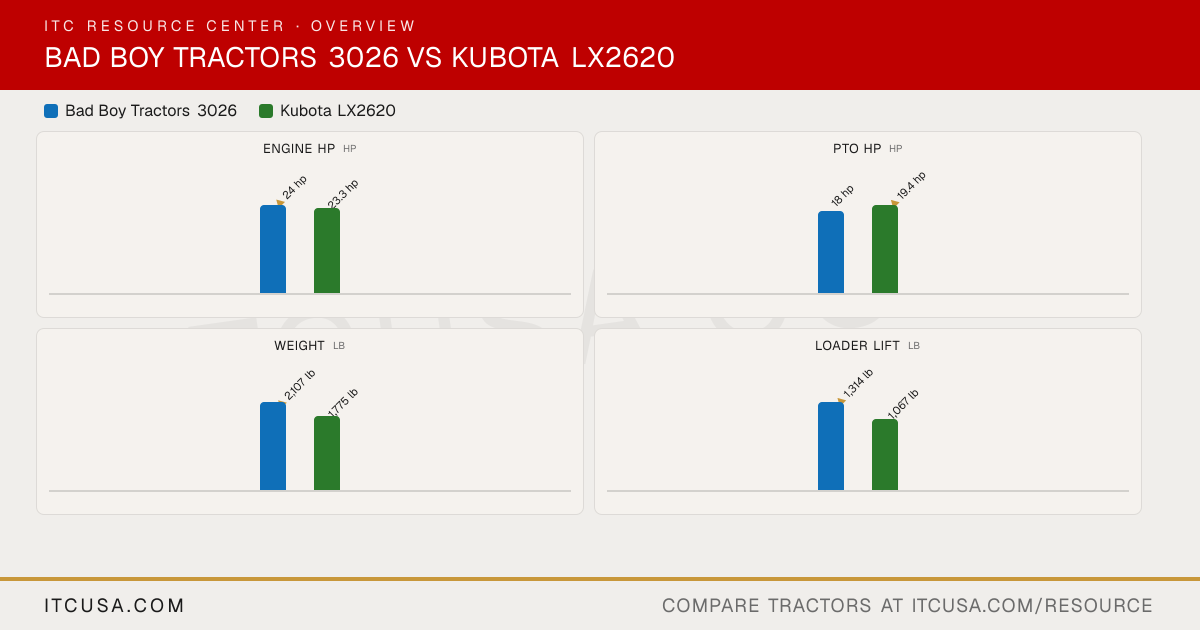

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 5 categories to 3. Machine pages: Bad Boy Tractors 3026 and Kubota LX2620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KubotaLX2620

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1100N2	D1305-E4-D36R (LX2620HSD); D1305-E4-D26Q (LX2620HSDC); D1305-E4-D36R (LX2620SUHSD)
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	70.7 in³	77.0 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	24 hp	23.3 hp
PTO Power	18 hp	19.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Dry element	4.5 in paper filter with dual filter
Fuel System	Indirect injection (swirl chamber)	Indirect injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Dual pump
Implement Flow	4.3 gpm	Not Published
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	8.7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.1 gal (LX2620HSD); 8.5 gal (LX2620HSDC); 7.1 gal (LX2620SUHSD)
Coolant Capacity	1.21 gal	4.5 qt (LX2620HSD); 5.7 qt (LX2620HSDC); 4.5 qt (LX2620SUHSD)
Crankcase Capacity	0.79 gal	4.2 qt
Transmission / Hydraulic System Capacity	2.90 gal	4.0 gal
Front Axle Fluid Capacity	0.79 gal	5.0 qt
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	2500 rpm (LX2620HSD); 2500 rpm (LX2620HSDC); Optional (LX2620SUHSD)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	2139 lb
Hitch Lift Capacity (at 24”)	974 lb	1676 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission (HST), 3 ranges
No. of Speeds	3 range (L/M/H)	3 ranges
Max Travel Speed (Forward)	14.8 mph	11.2 mph
Max Travel Speed (Reverse)	14.8 mph	8.4 mph
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Multi-plate wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Deluxe seat with adjustable suspension (LX2620HSD); Deluxe seat with adjustable suspension (LX2620HSDC); Standard seat with normal suspension (LX2620SUHSD)
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	101.8 in (LX2620HSD); 103.9 in (LX2620HSDC); 101.8 in (LX2620SUHSD) (without 3-point hitch)
Overall Width	53.9 in	53.7 in
Wheelbase	65.7 in	65.6 in
Ground Clearance	16.4 in	14.6 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	91.4 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	84.6 in
▶Weight
Tractor Weight (Base)	2,107 lb	1775 lb (LX2620HSD); 2249 lb (LX2620HSDC); 1775 lb (LX2620SUHSD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R1 Agricultural, R3 Turf, R4 Industrial (R14 hybrid also offered)
R1 Agricultural - Front	7-16 6PR	180/85D12 (7-12)
R1 Agricultural - Rear	11.2-20	320/85D16 (12.4-16)
R3 Turf - Front	Not Published	24x8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	25x8.50-14	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	14-17.5	14-17.5 or 15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	LA535: 2-lever quick coupler standard; Swift-tach optional
Loader Model	BBL300	LA535
Loader Lift Height	87.5 in	LA535: 84 in
Loader Lift Capacity (Full Height)	1,314 lb	LA535: 1067 lb
Loader Breakout Force	1,960 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 3026 vs Kubota LX2620: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Kubota LX2620?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 23.3 hp hp for the Kubota LX2620.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kubota LX2620?

The Kubota LX2620 leads on pto hp at 19.4 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Kubota LX2620?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,775 lb lb for the Kubota LX2620.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kubota LX2620?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 1,067 lb lb for the Kubota LX2620.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kubota LX2620?

The Kubota LX2620 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
