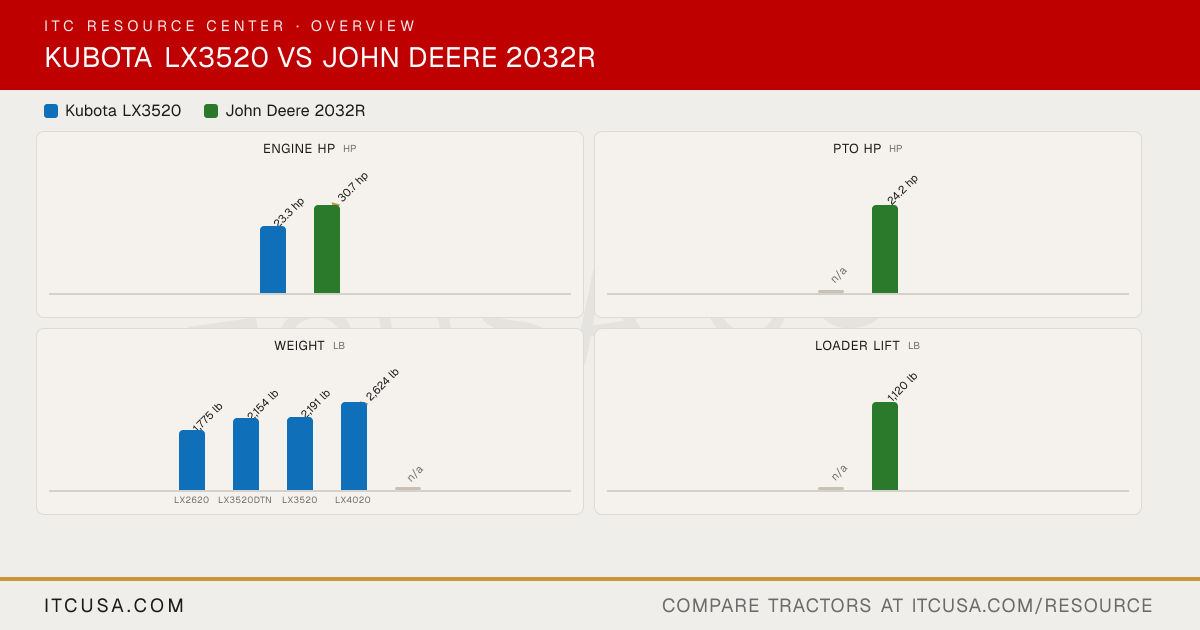

▶ EnginePTO Power 28.7 (21.4) HP (kW) 24.2 hp Air Cleaner LX2620: 4.5 inch paper filter (with dual filter); LX3520/LX4020: 6 inch paper filter (with dual element) Dual element Engine Type Indirect injection, vertical, water-cooled, 4-cycle diesel and Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger Diesel Fuel System Common Rail (CRS) diesel Direct injection Displacement 77 in³ 100.2 in³ No. of Cylinders 4 3 Rated Engine Speed 2500 rpm 2500 rpm Cooling System Type Pressurized radiator with radial air flow fan Liquid-cooled Engine Manufacturer Kubota Yanmar Engine Power (Gross) 23.3 hp 30.7 hp @ 500 rpm Alternator — 85 A, 12 V Engine Emissions Constraints — Tier 4 ▶ WeightTractor Weight (Base) LX2620: 1,775 lbs; LX3520DTN: 2,154 lbs; LX3520: 2,191 lbs; LX4020: 2,624 lbs — Tractor Weight with Loader — Not Published Weight with Cab and Loader — Not Applicable Weight with ROPS and Loader — Not Published ▶ WarrantyWarranty Length & Coverage Full warranty: 2 years / 2,000 hours | Powertrain warranty: 6 years / 2,000 hours 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) ▶ HydraulicsPump Type Dual pump Tandem gear Pump Flow (Total) LX2620: 8.7 gpm (33.1 ℓ/min); LX3520: 9.1 gpm (34.5 ℓ/min); LX4020: 9.5 gpm (35.8 ℓ/min) — Total Hydraulic Flow 9.1 (34.5) gpm (l/min.) 9.3 gpm Hydraulic System Type Open center Open center System Operating Pressure Open center system — Overall Hydraulic Pump Flow 9.1 (34.5) gpm (l/min.) 9.3 gpm Steering Flow — 4.0 gpm Implement Flow — 5.3 gpm Rear Remote Hydraulic Flow — Not Published No. of Optional Remote Valves — Up to 3 No. of Standard Remote Valves — Not Published ▶ PTO & HitchPTO Rear 540 rpm 543 rpm PTO Type Independent Independent Lift Control Type Position control valve Position control Hitch Lift Capacity 2348 (1065) lbs. (kg) Not Published Mid PTO (Type / RPM) 2500 RPM (LX2620), 2460 RPM (LX3520/LX4020, optional) — Mid-PTO Availability 2460 RPM Yes (1998 rpm) Rear PTO (Type / RPM) 540 RPM — Category, 3-Point Hitch Category I Category 1 Three-Point Hitch Category Category I — Lift Capacity at 24 in Behind LX2620: 1,819 lbs; LX3520/LX4020: 1,962 lbs — Hitch Lift Capacity (at 24”) — Not Published ▶ Tire OptionsR3 Turf - Rear 16.6-16 14-17.5 R3 Turf - Front 24x8.5-14 23X8.50-14 Tire Size & Options Front R1: 7-12; R4: 23×8.50-12; R4 large: 25×8.50-14; R14: 23×8.50-12; R14 large: 25×8.50-14; TURF: 24×8.50-14; Rear R1: 12.4-16; R4: 14-17.5; R14: 14-17.5; TURF: 13.6-16; R4 large: 15-19.5; R14 large: 15-19.5 R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial R4 Industrial - Rear 14-17.5 or 15-19.5 14-17.5 R4 Industrial - Front 23x8.5-12 or 25x8.5-14 23x8.50-14 R1 Agricultural - Rear 320/85D16 12.4-16 R1 Agricultural - Front 180/85D12 7.00-12 ▶ Fluid CapacityCoolant Capacity LX2620: 4.5 qts (4.3 ℓ); LX3520/LX4020: 5.7 qts (5.4 ℓ) 5.2 qt Crankcase Capacity LX2620: 4.2 qts (4.0 ℓ); LX3520/LX4020: 5.0 qts (4.7 ℓ) 4.5 qt Fuel Tank Capacity LX2620: 7.1 gal (27 ℓ); LX3520/LX4020: 8.5 gal (32 ℓ) 8.5 gal Transmission/Hydraulic Capacity LX2620: 4.0 gal (15 ℓ); LX3520/LX4020: 5.5 gal (21.0 ℓ) — Transmission / Hydraulic System Capacity 5.5 (21.0) gal (ℓ) 6.2 gal Front Axle Fluid Capacity — 4.0 qt ▶ Loader & AttachmentsLoader Lift Height 87.6 (2226) in. (mm) 85 in Quick Attach Loader System 2-Lever Quick Coupler (Standard); Swift-Tach (Optional) Quik-Park Loader Lift Capacity (Full Height) 1100 (499) lbs. (kg) 1,120 lb Loader Breakout Force — 1,949 lbf ▶ Transmission & DrivetrainClutch N/A Not Applicable No. of Speeds HST (3 range) Infinite (2-range) Number of Speeds 3 ranges (Low, Mid, High) — Transmission Type HST (3 ranges) Hydrostatic - two range Max Travel Speed (Forward) 17.0 (0-27.4) mph (km/h) Not Published Max Travel Speed (Reverse) 13.0 (0-20.8) mph (km/h) Not Published Differential Lock & Limited Slip Options Standard Differential lock ▶ Chassis, Steering & ControlsBrakes Multi-plate wet disk Wet disc Steering Hydrostatic power steering Power steering Seat Suspension & Adjustability Deluxe suspension seat (high back, designed to absorb shock) Marine-grade seat Frame Type — Open station with foldable ROPS Front Axle Type — Not Published Drawbar Capacity — Not Published Front Axle Rating — 1,940 lb ▶ Dimensions & ManeuverabilityWheelbase 66.7 (1695) in. (mm) 67.8 in Overall Width 53.7 (1365) in. (mm) 55.1 in Overall Length LX2620: 101.8 in.; LX3520DTN: 98.2 in.; LX3520/LX4020: 101.6-103.9 in. (2580-103.9 in) — Ground Clearance 12.8 (325) in. (mm) 9.8 in Height to Top of ROPS LX3520 Narrow: 56.7 in. (folded) 92.3 in Height to Top of ROPS (folded) 56.7 (1440) in. (mm) Not Published Min. Turn Radius without Brakes 7.5 (2.3) feet (m) Front drive disengaged 98.4 in Overall Length with 3-Point Hitch 101.8 (2586) in. (mm) 117.5 in Height to Top of Cab Model — Not Applicable
