Which has more horsepower, the John Deere 2032R or the Kubota LX3520?

The John Deere 2032R leads on engine hp at 30.7 hp hp, compared to 23.3 hp hp for the Kubota LX3520.

John Deere 2032R vs Kubota LX3520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 1 measurable specs, the John Deere 2032R leads 1 categories to 0. Machine pages: John Deere 2032R and Kubota LX3520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 2032R	Kubota LX3520
Engine HP (hp)	▲ 30.7 hp	23.3 hp
PTO HP (hp)	24.2 hp	n/a
Weight (lb)	n/a	2,624 lb
Loader Lift (lb)	1,120 lb	n/a
3-Pt Lift (24 in) (lb)	n/a	1,962 lb
Lift Height (in)	85 in	n/a
Breakout Force (lbf)	1,949 lbf	n/a
Hydraulic Flow (gpm)	9.3 gpm	n/a

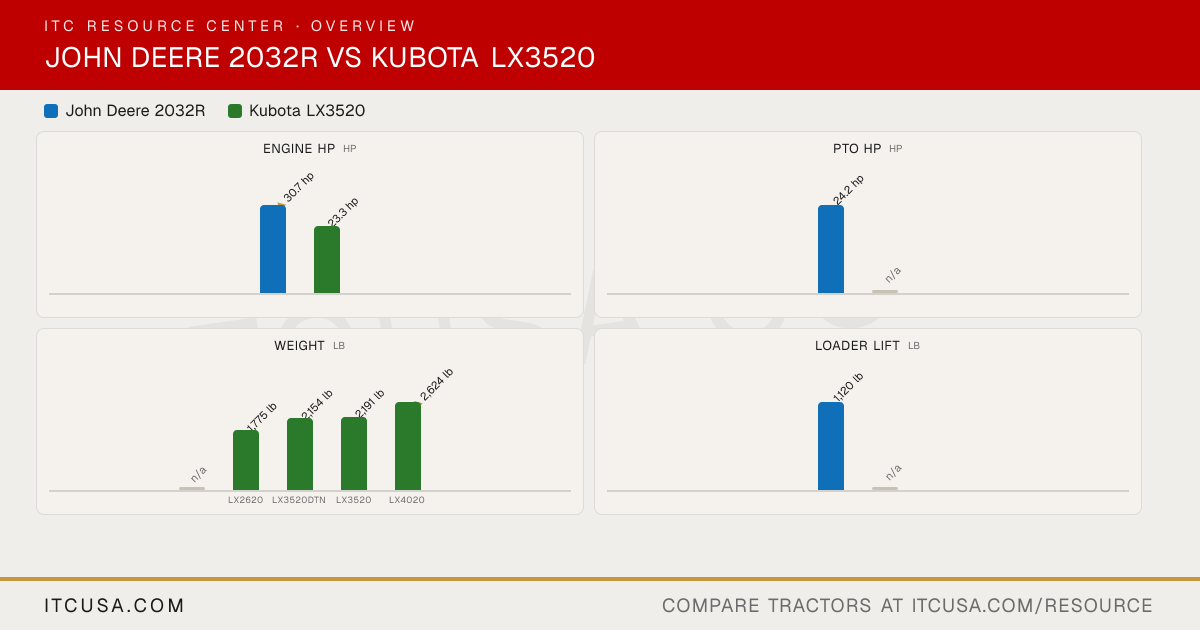

The headline numbers at a glance.

John Deere 2032RKubota LX3520

Engine HPhp

▲30.7 hp

23.3 hp

PTO HPhp

24.2 hp

n/a

Weightlb

n/a

1,775 lb

2,154 lb

2,191 lb

▲2,624 lb

LX2620LX3520DTNLX3520LX4020

Loader Liftlb

1,120 lb

n/a

3-Pt Lift (24 in)lb

n/a

1,819 lb

▲1,962 lb

LX2620LX3520/LX4020

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere2032R	KubotaLX3520


PTO Power	24.2 hp	28.7 (21.4) HP (kW)
Alternator	85 A, 12 V	n/a
Air Cleaner	Dual element	LX2620: 4.5 inch paper filter (with dual filter); LX3520/LX4020: 6 inch paper filter (with dual element)
Engine Type	Diesel	Indirect injection, vertical, water-cooled, 4-cycle diesel and Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
Fuel System	Direct injection	Common Rail (CRS) diesel
Displacement	100.2 in³	77 in³
No. of Cylinders	3	4
Rated Engine Speed	2500 rpm	2500 rpm
Cooling System Type	Liquid-cooled	Pressurized radiator with radial air flow fan
Engine Manufacturer	Yanmar	Kubota
Engine Power (Gross)	30.7 hp @ 500 rpm	23.3 hp
Engine Emissions Constraints	Tier 4	n/a

Weight with ROPS and Loader	Not Published	n/a
Weight with Cab and Loader	Not Applicable	n/a
Tractor Weight (Base)	n/a	LX2620: 1,775 lbs; LX3520DTN: 2,154 lbs; LX3520: 2,191 lbs; LX4020: 2,624 lbs

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Full warranty: 2 years / 2,000 hours \| Powertrain warranty: 6 years / 2,000 hours

Pump Type	Tandem gear	Dual pump
Steering Flow	4.0 gpm	n/a
Implement Flow	5.3 gpm	n/a
Total Hydraulic Flow	9.3 gpm	9.1 (34.5) gpm (l/min.)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	n/a
Overall Hydraulic Pump Flow	9.3 gpm	9.1 (34.5) gpm (l/min.)
No. of Optional Remote Valves	Up to 3	n/a
No. of Standard Remote Valves	Not Published	n/a
System Operating Pressure	n/a	Open center system

PTO Rear	543 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control valve
Hitch Lift Capacity	Not Published	2348 (1065) lbs. (kg)
Mid-PTO Availability	Yes (1998 rpm)	2460 RPM
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	Not Published	LX2620: 1,819 lbs; LX3520/LX4020: 1,962 lbs

R3 Turf - Rear	14-17.5	16.6-16
R3 Turf - Front	23X8.50-14	24x8.5-14
Tire Size & Options	R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial	Front R1: 7-12; R4: 23×8.50-12; R4 large: 25×8.50-14; R14: 23×8.50-12; R14 large: 25×8.50-14; TURF: 24×8.50-14; Rear R1: 12.4-16; R4: 14-17.5; R14: 14-17.5; TURF: 13.6-16; R4 large: 15-19.5; R14 large: 15-19.5
R4 Industrial - Rear	14-17.5	14-17.5 or 15-19.5
R4 Industrial - Front	23x8.50-14	23x8.5-12 or 25x8.5-14
R1 Agricultural - Rear	12.4-16	320/85D16
R1 Agricultural - Front	7.00-12	180/85D12

Coolant Capacity	5.2 qt	LX2620: 4.5 qts (4.3 ℓ); LX3520/LX4020: 5.7 qts (5.4 ℓ)
Crankcase Capacity	4.5 qt	LX2620: 4.2 qts (4.0 ℓ); LX3520/LX4020: 5.0 qts (4.7 ℓ)
Fuel Tank Capacity	8.5 gal	LX2620: 7.1 gal (27 ℓ); LX3520/LX4020: 8.5 gal (32 ℓ)
Front Axle Fluid Capacity	4.0 qt	n/a
Transmission / Hydraulic System Capacity	6.2 gal	5.5 (21.0) gal (ℓ)

Loader Lift Height	85 in	87.6 (2226) in. (mm)
Loader Breakout Force	1,949 lbf	n/a
Quick Attach Loader System	Quik-Park	2-Lever Quick Coupler (Standard); Swift-Tach (Optional)
Loader Lift Capacity (Full Height)	1,120 lb	1100 (499) lbs. (kg)

Clutch	Not Applicable	N/A
No. of Speeds	Infinite (2-range)	HST (3 range)
Transmission Type	Hydrostatic - two range	HST (3 ranges)
Max Travel Speed (Forward)	Not Published	17.0 (0-27.4) mph (km/h)
Max Travel Speed (Reverse)	Not Published	13.0 (0-20.8) mph (km/h)
Differential Lock & Limited Slip Options	Differential lock	Standard

Brakes	Wet disc	Multi-plate wet disk
Steering	Power steering	Hydrostatic power steering
Frame Type	Open station with foldable ROPS	n/a
Front Axle Type	Not Published	n/a
Drawbar Capacity	Not Published	n/a
Front Axle Rating	1,940 lb	n/a
Seat Suspension & Adjustability	Marine-grade seat	Deluxe suspension seat (high back, designed to absorb shock)

Wheelbase	67.8 in	66.7 (1695) in. (mm)
Overall Width	55.1 in	53.7 (1365) in. (mm)
Ground Clearance	9.8 in	12.8 (325) in. (mm)
Height to Top of ROPS	92.3 in	LX3520 Narrow: 56.7 in. (folded)
Height to Top of Cab Model	Not Applicable	n/a
Height to Top of ROPS (folded)	Not Published	56.7 (1440) in. (mm)
Min. Turn Radius without Brakes	98.4 in	7.5 (2.3) feet (m) Front drive disengaged
Overall Length with 3-Point Hitch	117.5 in	101.8 (2586) in. (mm)
Overall Length	n/a	LX2620: 101.8 in.; LX3520DTN: 98.2 in.; LX3520/LX4020: 101.6-103.9 in. (2580-103.9 in)

Find a John Deere dealer near you Find a Kubota dealer near you

John Deere 2032R vs Kubota LX3520: Quick Answers

Which has more horsepower, the John Deere 2032R or the Kubota LX3520?: The John Deere 2032R leads on engine hp at 30.7 hp hp, compared to 23.3 hp hp for the Kubota LX3520.
