Kubota LX3520DTN vs Bobcat CT2035 | Side-by-side comparison | ITC Resource Center
Compare Tractors

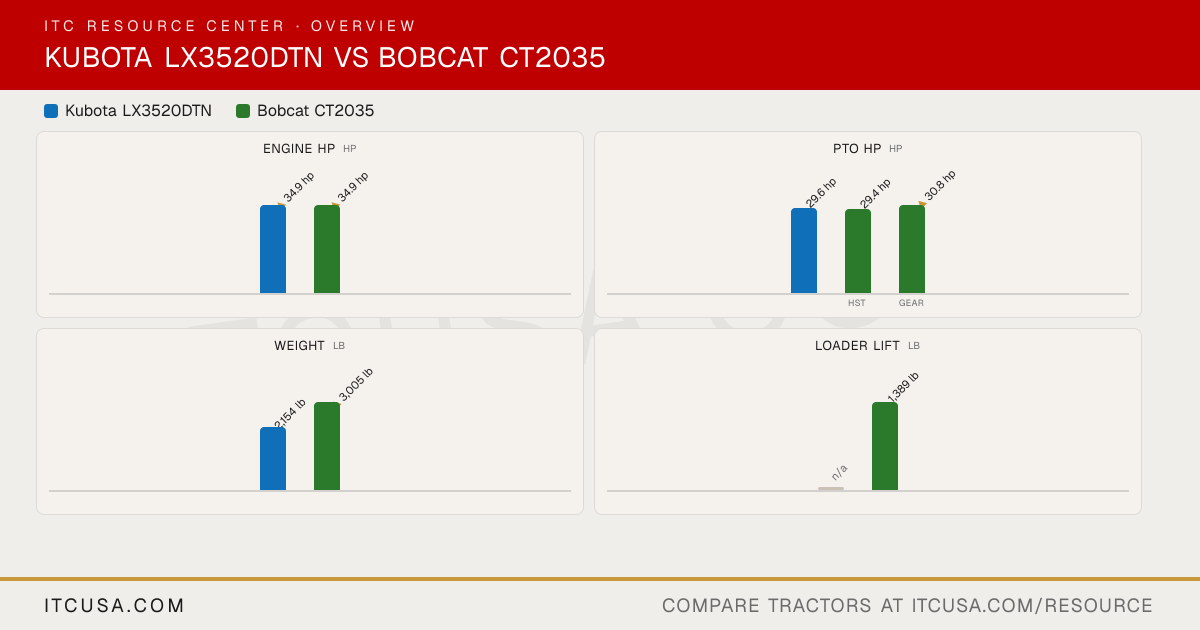

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX3520DTN
BobcatCT2035
Engine Manufacturer
Kubota
Daedong
Engine Model
V1505-CR-TE5-D40R6
3H-TH4A
Engine Type
Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
Diesel
No. of Cylinders
4
3
Displacement
91.4 in³
111.4 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
34.9 hp
34.9 hp
PTO Power
29.6 hp
HST: 29.4 hp; MST (gear): 30.8 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Pressurized radiator
Water-cooled
Air Cleaner
6 in paper filter (with dual element)
Dry type, replaceable
Fuel System
Direct injection
Common rail direct injection (CRDI)
Alternator
Not Published
75 A, 12 V
Pump Type
Dual pump
Not Published
Implement Flow
5.2 gpm
6.9 gpm
Steering Flow
Not Published
4.5 gpm
Total Hydraulic Flow
9.1 gpm
11.4 gpm
Overall Hydraulic Pump Flow
9.1 gpm
11.4 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
None (rear hydraulics optional)
No. of Optional Remote Valves
Optional, up to 2
2 pairs
Fuel Tank Capacity
8.5 gal
9.0 gal
Coolant Capacity
4.5 qt
Not Published
Crankcase Capacity
5.0 qt
7.8 qt
Transmission / Hydraulic System Capacity
5.5 gal
5.8 gal
Front Axle Fluid Capacity
4.8 qt
6.3 qt
PTO Type
Independent
Live
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Optional: 1988 rpm
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity
2348 lb
2271 lb
Hitch Lift Capacity (at 24”)
1819 lb
1631 lb
Lift Control Type
Position control valve
Hydraulic Position Control System
Transmission Type
Gear
3-Range HST
No. of Speeds
12 forward, 12 reverse
Infinite, 3 range
Max Travel Speed (Forward)
14.7 mph
14.0 mph
Max Travel Speed (Reverse)
14.6 mph
9.7 mph
Clutch
Dry type single stage
Not Published
Differential Lock & Limited Slip Options
Standard
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Multi-plate wet disk
Wet multi-disc
Seat Suspension & Adjustability
Not Published
Adjustable seat (standard)
Front Axle Type
Not Published
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
1433 lb
Overall Length with 3-Point Hitch
98.2 in (without 3-point hitch)
120.9 in
Overall Width
39.4 in
62.4 in
Wheelbase
61.0 in
65.7 in
Ground Clearance
12.8 in
11.7 in
Min. Turn Radius without Brakes
7.5 ft (with brake applied)
96.5 in (with brake applied)
Height to Top of ROPS
84.0 in
92.2 in
Height to Top of ROPS (folded)
56.7 in
Not Published
Height to Top of Cab Model
85.6 in
Not Published
Tractor Weight (Base)
2154 lb
3005 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
6-14
7-16
R1 Agricultural - Rear
8.3-24
11.4-24
R3 Turf - Front
Not Published
27x8.5-15
R3 Turf - Rear
Not Published
41x14-20
R4 Industrial - Front
Not Published
25x8.5-14
R4 Industrial - Rear
Not Published
15-19.5
Quick Attach Loader System
Not Published
Standard quick attach mounting system
Loader Model
Not Published
FL8
Loader Lift Height
Not Published
99.6 in
Loader Lift Capacity (Full Height)
Not Published
1389 lb
Loader Breakout Force
Not Published
3285 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
