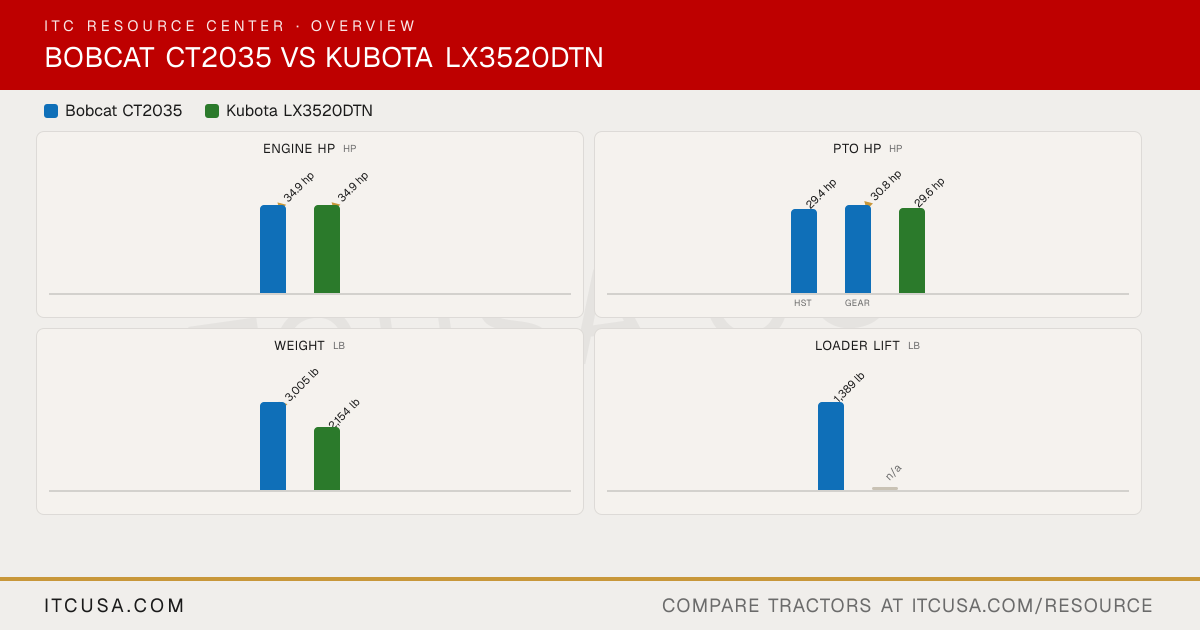

Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT2035
KubotaLX3520DTN
Engine Manufacturer
Daedong
Kubota
Engine Model
3H-TH4A
V1505-CR-TE5-D40R6
Engine Type
Diesel
Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders
3
4
Displacement
111.4 in³
91.4 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
34.9 hp
34.9 hp
PTO Power
HST: 29.4 hp; MST (gear): 30.8 hp
29.6 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Water-cooled
Pressurized radiator
Air Cleaner
Dry type, replaceable
6 in paper filter (with dual element)
Fuel System
Common rail direct injection (CRDI)
Direct injection
Alternator
75 A, 12 V
Not Published
Pump Type
Not Published
Dual pump
Implement Flow
6.9 gpm
5.2 gpm
Steering Flow
4.5 gpm
Not Published
Total Hydraulic Flow
11.4 gpm
9.1 gpm
Overall Hydraulic Pump Flow
11.4 gpm
9.1 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
None (rear hydraulics optional)
0
No. of Optional Remote Valves
2 pairs
Optional, up to 2
Fuel Tank Capacity
9.0 gal
8.5 gal
Coolant Capacity
Not Published
4.5 qt
Crankcase Capacity
7.8 qt
5.0 qt
Transmission / Hydraulic System Capacity
5.8 gal
5.5 gal
Front Axle Fluid Capacity
6.3 qt
4.8 qt
PTO Type
Live
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Optional: 1988 rpm
Not Published
Category, 3-Point Hitch
Category 1
Category I
Hitch Lift Capacity
2271 lb
2348 lb
Hitch Lift Capacity (at 24”)
1631 lb
1819 lb
Lift Control Type
Hydraulic Position Control System
Position control valve
Transmission Type
3-Range HST
Gear
No. of Speeds
Infinite, 3 range
12 forward, 12 reverse
Max Travel Speed (Forward)
14.0 mph
14.7 mph
Max Travel Speed (Reverse)
9.7 mph
14.6 mph
Clutch
Not Published
Dry type single stage
Differential Lock & Limited Slip Options
Rear differential lock (standard)
Standard
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Wet multi-disc
Multi-plate wet disk
Seat Suspension & Adjustability
Adjustable seat (standard)
Not Published
Front Axle Type
Four-wheel drive (standard)
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1433 lb
1100 lb
Overall Length with 3-Point Hitch
120.9 in
98.2 in (without 3-point hitch)
Overall Width
62.4 in
39.4 in
Wheelbase
65.7 in
61.0 in
Ground Clearance
11.7 in
12.8 in
Min. Turn Radius without Brakes
96.5 in (with brake applied)
7.5 ft (with brake applied)
Height to Top of ROPS
92.2 in
84.0 in
Height to Top of ROPS (folded)
Not Published
56.7 in
Height to Top of Cab Model
Not Published
85.6 in
Tractor Weight (Base)
3005 lb
2154 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural
R1 Agricultural - Front
7-16
6-14
R1 Agricultural - Rear
11.4-24
8.3-24
R3 Turf - Front
27x8.5-15
Not Published
R3 Turf - Rear
41x14-20
Not Published
R4 Industrial - Front
25x8.5-14
Not Published
R4 Industrial - Rear
15-19.5
Not Published
Quick Attach Loader System
Standard quick attach mounting system
Not Published
Loader Model
FL8
Not Published
Loader Lift Height
99.6 in
Not Published
Loader Lift Capacity (Full Height)
1389 lb
Not Published
Loader Breakout Force
3285 lb
Not Published
Warranty Length & Coverage
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
