Bad Boy Tractors 3026 vs Kubota LX3520DTN

Across 6 measurable specs, the Kubota LX3520DTN leads 5 categories to 1. Machine pages: Bad Boy Tractors 3026 and Kubota LX3520DTN.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

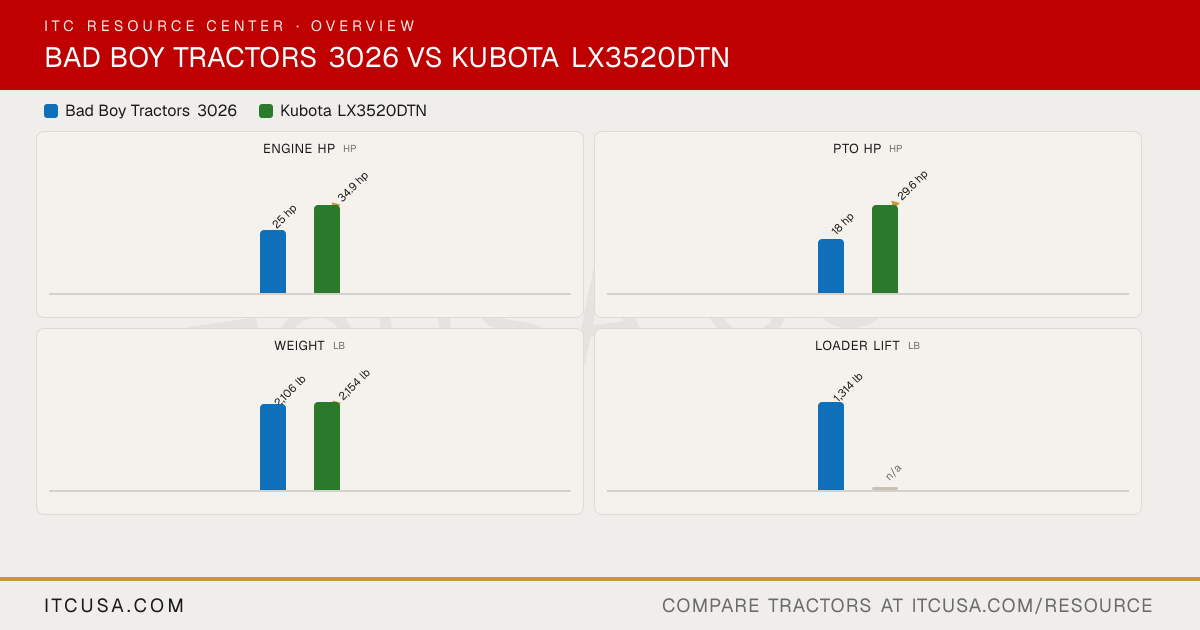

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KubotaLX3520DTN

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1100N2	V1505-CR-TE5-D40R6
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	Turbocharged, direct injection, liquid-cooled diesel
No. of Cylinders	3	4
Displacement	71.7 in³	91.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	34.9 hp
PTO Power	18 hp	29.6 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Dry element	6 in paper filter (with dual element)
Fuel System	Indirect injection (swirl chamber)	Direct injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Dual pump
Implement Flow	4.3 gpm	Not Published
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	9.1 gpm
Overall Hydraulic Pump Flow	7.7 gpm	9.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None
No. of Optional Remote Valves	1	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	8.5 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	5.0 qt
Transmission / Hydraulic System Capacity	2.90 gal	5.5 gal
Front Axle Fluid Capacity	0.79 gal	4.8 qt
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	2,348 lb
Hitch Lift Capacity (at 24”)	974 lb	1,819 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Gear
No. of Speeds	3 range (L/M/H)	Not Published
Max Travel Speed (Forward)	14.8 mph	14.7 mph
Max Travel Speed (Reverse)	14.8 mph	14.6 mph
Clutch	Dry, single plate	Dry type single stage
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Standard
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Multi-plate wet disk
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,100 lb
▶Dimensions & Maneuverability
Overall Width	53.8 in	39.4 in
Wheelbase	65.7 in	61.0 in
Ground Clearance	16.4 in	12.8 in
Min. Turn Radius without Brakes	Not Published	7.5 ft (with brake applied)
Height to Top of ROPS	91.4 in	84.0 in
Height to Top of ROPS (folded)	Not Published	56.7 in
Height to Top of Cab Model	Not Published	85.6 in
Overall Length	110 in	98.2 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	2,106 lb	2,154 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	R1 Agricultural
R1 Agricultural - Front	7-16 6PR	6-14
R1 Agricultural - Rear	11.2-20	8.3-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	Not Published
R4 Industrial - Rear	14x17.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	Not Published
Loader Lift Height	86 in	Not Published
Loader Lift Capacity (Full Height)	1,314 lb	Not Published
Loader Breakout Force	1,960 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 3026 vs Kubota LX3520DTN: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Kubota LX3520DTN?

The Kubota LX3520DTN leads on engine hp at 34.9 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kubota LX3520DTN?

The Kubota LX3520DTN leads on pto hp at 29.6 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Kubota LX3520DTN?

The Kubota LX3520DTN leads on weight at 2,154 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kubota LX3520DTN?

The Kubota LX3520DTN leads on 3-pt lift (24 in) at 1,819 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
