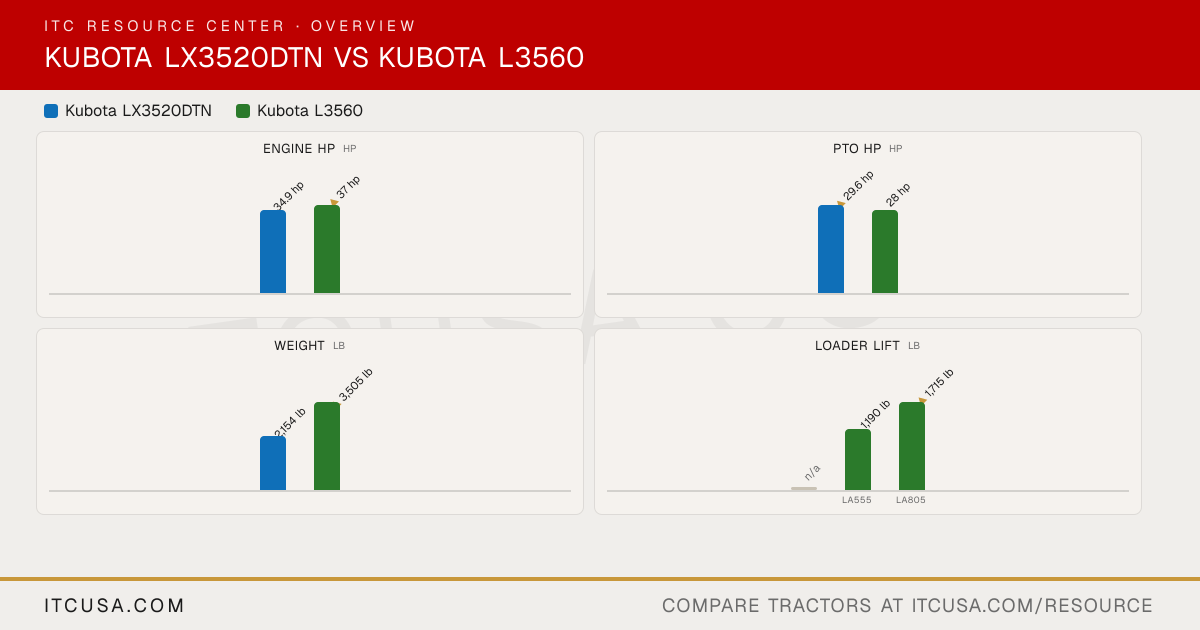

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V1505-CR-TE5-D40R6 D1803-CR-E4-GL2 Engine Type Turbocharged, direct injection, liquid-cooled diesel Naturally aspirated, multi-valve, liquid-cooled diesel No. of Cylinders 4 3 Displacement 91.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 34.9 hp 37 hp PTO Power 29.6 hp 28 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Pressurized radiator Liquid-cooled Air Cleaner 6 in paper filter (with dual element) Dry paper, dual element Fuel System Direct injection Electronic CRS (Common Rail System) Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Dual pump Tandem pump - gear type Implement Flow Not Published 8.1 gpm Steering Flow Not Published 4.7 gpm Total Hydraulic Flow 9.1 gpm 12.8 gpm Overall Hydraulic Pump Flow 9.1 gpm 12.8 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None None standard (up to 3 optional) No. of Optional Remote Valves Optional, up to 2 Optional, up to 3: double-acting valve or float detent valve, any position ▶ Fluid CapacityFuel Tank Capacity 8.5 gal 13.5 gal Coolant Capacity Not Published 7.9 qt Crankcase Capacity 5.0 qt 7.1 qt Transmission / Hydraulic System Capacity 5.5 gal 11.1 gal Front Axle Fluid Capacity 4.8 qt 6.9 qt ▶ PTO & HitchPTO Type Independent Live independent (hydraulic clutch) PTO Rear 540 rpm DT, GST: 540 rpm @ 2550 engine rpm; HST, HSTC: 540 rpm @ 2476 engine rpm Mid-PTO Availability Not Published Optional Category, 3-Point Hitch Category I SAE Category I Hitch Lift Capacity 2,348 lb 3,750 lb Hitch Lift Capacity (at 24”) 1,819 lb 2,646 lb Lift Control Type Position control valve Position control ▶ Transmission & DrivetrainTransmission Type Gear Hydrostatic No. of Speeds Not Published 3-Range, 6 speeds (H-DS), infinitely variable in each Max Travel Speed (Forward) 14.7 mph 16.5 mph Max Travel Speed (Reverse) 14.6 mph 14.9 mph Clutch Dry type single stage Not Published Differential Lock & Limited Slip Options Standard Rear differential lock, standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Multi-plate wet disk Wet disc type, mechanically activated Seat Suspension & Adjustability Not Published Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Front Axle Type Not Published 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating Not Published Not Published Drawbar Capacity 1,100 lb 1,433 lb ▶ Dimensions & ManeuverabilityOverall Width 39.4 in 59.8 in Wheelbase 61.0 in 71.1 in Ground Clearance 12.8 in 13.5 in Min. Turn Radius without Brakes 7.5 ft (with brake applied) 8.9 ft (with brake applied) Height to Top of ROPS 84.0 in 97.2 in Height to Top of ROPS (folded) 56.7 in Not Published Height to Top of Cab Model Not Applicable Not Published Overall Length 98.2 in (without 3-point hitch, with R1 tires) 115.0 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 2,154 lb 3,505 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural - Front 6-14 7.2-16 R1 Agricultural - Rear 8.3-24 12.4-24 R3 Turf - Front Not Published 27x10.50-15 R3 Turf - Rear Not Published 41x18LL-16.1 R4 Industrial - Front Not Published 10-16.5 R4 Industrial - Rear Not Published 420/70-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published LA555: 2-lever mechanical quick coupler (standard); LA805: 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) Loader Model Not Published LA555 or LA805 Loader Lift Height Not Published LA555: 96.4 in; LA805: 104.7 in Loader Lift Capacity (Full Height) Not Published LA555: 1,190 lb; LA805: 1,715 lb (at pivot pin) Loader Breakout Force Not Published LA555: 2,030 lb; LA805: 2,549 lb ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
