Kubota L3560 vs Kubota LX3520DTN
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 6 measurable specs, the Kubota L3560 leads 5 categories to 1. Machine pages: Kubota L3560 and Kubota LX3520DTN.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Kubota L3560 | Kubota LX3520DTN |
|---|---|---|
| Engine HP (hp) | ▲ 37 hp | 34.9 hp |
| PTO HP (hp) | 28 hp | ▲ 29.6 hp |
| Weight (lb) | ▲ 3,505 lb | 2,154 lb |
| Loader Lift (lb) | 1,715 lb | n/a |
| 3-Pt Lift (24 in) (lb) | ▲ 2,646 lb | 1,819 lb |
| Lift Height (in) | 104.7 in | n/a |
| Breakout Force (lbf) | 2,549 lbf | n/a |
| Hydraulic Flow (gpm) | ▲ 12.8 gpm | 9.1 gpm |
| Travel Speed (mph) | ▲ 16.5 mph | 14.7 mph |

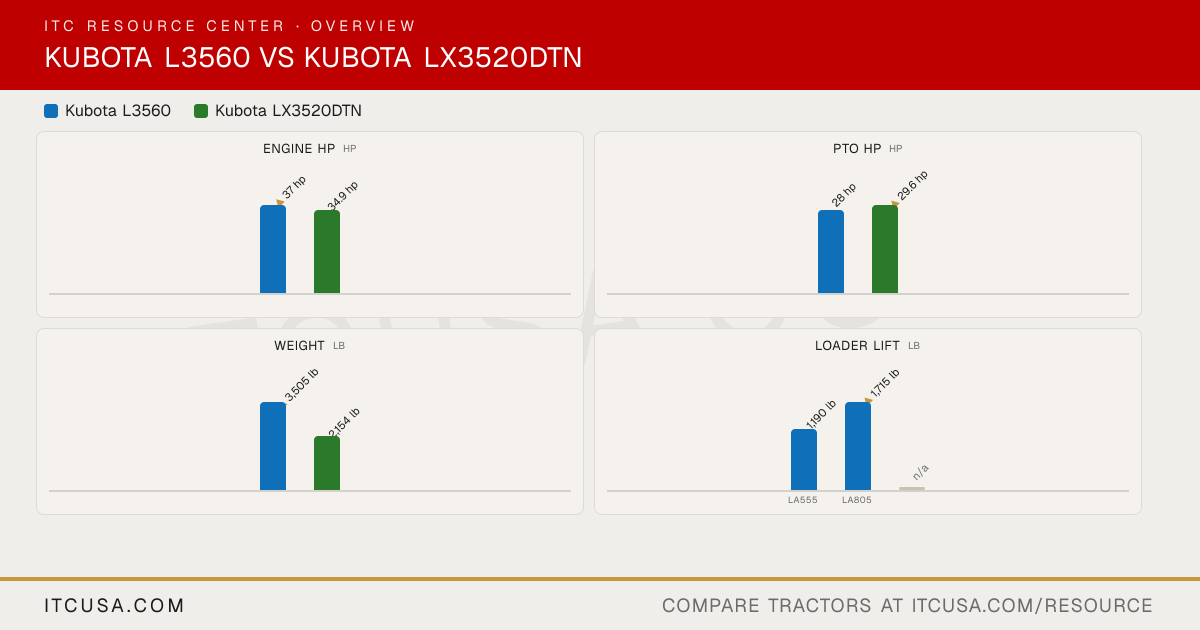

Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL3560 | KubotaLX3520DTN |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | D1803-CR-E4-GL2 | V1505-CR-TE5-D40R6 |
| Engine Type | Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated | Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger |
| No. of Cylinders | 3 | 4 |
| Displacement | 111.4 in³ | 91.4 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 37 hp | 34.9 hp |
| PTO Power | 28 hp | 29.6 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid-cooled | Pressurized radiator |
| Air Cleaner | Dry paper, dual element | 6 in paper filter (with dual element) |
| Fuel System | Electronic CRS (Common Rail System) | Direct injection |
| Alternator | 40 A, 12 V | Not Published |
Kubota L3560 vs Kubota LX3520DTN: Quick Answers
- Which has more horsepower, the Kubota L3560 or the Kubota LX3520DTN?
- The Kubota L3560 leads on engine hp at 37 hp hp, compared to 34.9 hp hp for the Kubota LX3520DTN.
- Which has more PTO horsepower, the Kubota L3560 or the Kubota LX3520DTN?
- The Kubota LX3520DTN leads on pto hp at 29.6 hp hp, compared to 28 hp hp for the Kubota L3560.
- Which is heavier, the Kubota L3560 or the Kubota LX3520DTN?
- The Kubota L3560 leads on weight at 3,505 lb lb, compared to 2,154 lb lb for the Kubota LX3520DTN.
- Which has more three-point hitch lift capacity, the Kubota L3560 or the Kubota LX3520DTN?
- The Kubota L3560 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,819 lb lb for the Kubota LX3520DTN.
