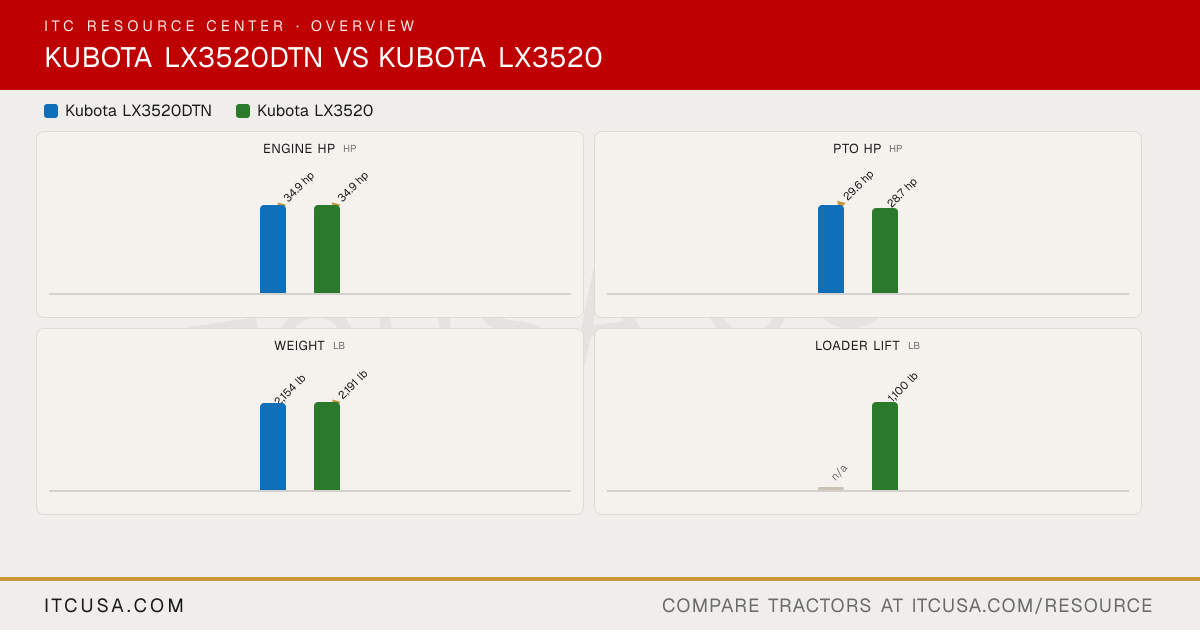

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX3520DTN
KubotaLX3520
Engine Manufacturer
Kubota
Kubota
Engine Model
V1505-CR-TE5-D40R6
V1505-CR-TE5-D40R5
Engine Type
Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders
4
4
Displacement
91.4 in³
91.4 in³
Rated Engine Speed
2600 rpm
2700 rpm
Engine Power (Gross)
34.9 hp
34.9 hp
PTO Power
29.6 hp
28.7 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Pressurized radiator
Pressurized radiator
Air Cleaner
6 in paper filter (with dual element)
6 in paper filter (with dual element)
Fuel System
Direct injection
Direct injection
Alternator
Not Published
Not Published
Pump Type
Dual pump
Dual pump
Implement Flow
5.2 gpm
5.4 gpm
Steering Flow
Not Published
4.1 gpm
Total Hydraulic Flow
9.1 gpm
9.5 gpm
Overall Hydraulic Pump Flow
9.1 gpm
9.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
0
No. of Optional Remote Valves
Optional, up to 2
Optional, up to 2
Fuel Tank Capacity
8.5 gal
8.5 gal
Coolant Capacity
4.5 qt
4.5 qt
Crankcase Capacity
5.0 qt
5.0 qt
Transmission / Hydraulic System Capacity
5.5 gal
5.5 gal
Front Axle Fluid Capacity
4.8 qt
4.8 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
2460 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2348 lb
2535 lb
Hitch Lift Capacity (at 24”)
1819 lb
1962 lb
Lift Control Type
Position control valve
Position control valve
Transmission Type
Gear
HST (3 ranges)
No. of Speeds
12 forward, 12 reverse
HST (3 range)
Max Travel Speed (Forward)
14.7 mph
17.0 mph
Max Travel Speed (Reverse)
14.6 mph
13.0 mph
Clutch
Dry type single stage
Not Published
Differential Lock & Limited Slip Options
Standard
Standard
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Multi-plate wet disk
Multi-plate wet disk
Seat Suspension & Adjustability
Not Published
Deluxe suspension seat (high back, designed to absorb shock)
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
1100 lb
Overall Length with 3-Point Hitch
98.2 in (without 3-point hitch)
116.1 in
Overall Width
39.4 in
53.7 in
Wheelbase
61.0 in
66.7 in
Ground Clearance
12.8 in
8.9 in
Min. Turn Radius without Brakes
7.5 ft (with brake applied)
7.5 ft (with brake applied)
Height to Top of ROPS
84.0 in
88.4 in
Height to Top of ROPS (folded)
56.7 in
Not Published
Height to Top of Cab Model
85.6 in
85.6 in
Tractor Weight (Base)
2154 lb
2191 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front
6-14
180/85D12
R1 Agricultural - Rear
8.3-24
320/85D16
R3 Turf - Front
Not Published
24x8.5-14
R3 Turf - Rear
Not Published
13.6-16
R4 Industrial - Front
Not Published
23x8.5-12 or 25x8.5-14
R4 Industrial - Rear
Not Published
14-17.5 or 15-19.5
Quick Attach Loader System
Not Published
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
Not Published
LA545
Loader Lift Height
Not Published
87.6 in
Loader Lift Capacity (Full Height)
Not Published
1100 lb
Loader Breakout Force
Not Published
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
