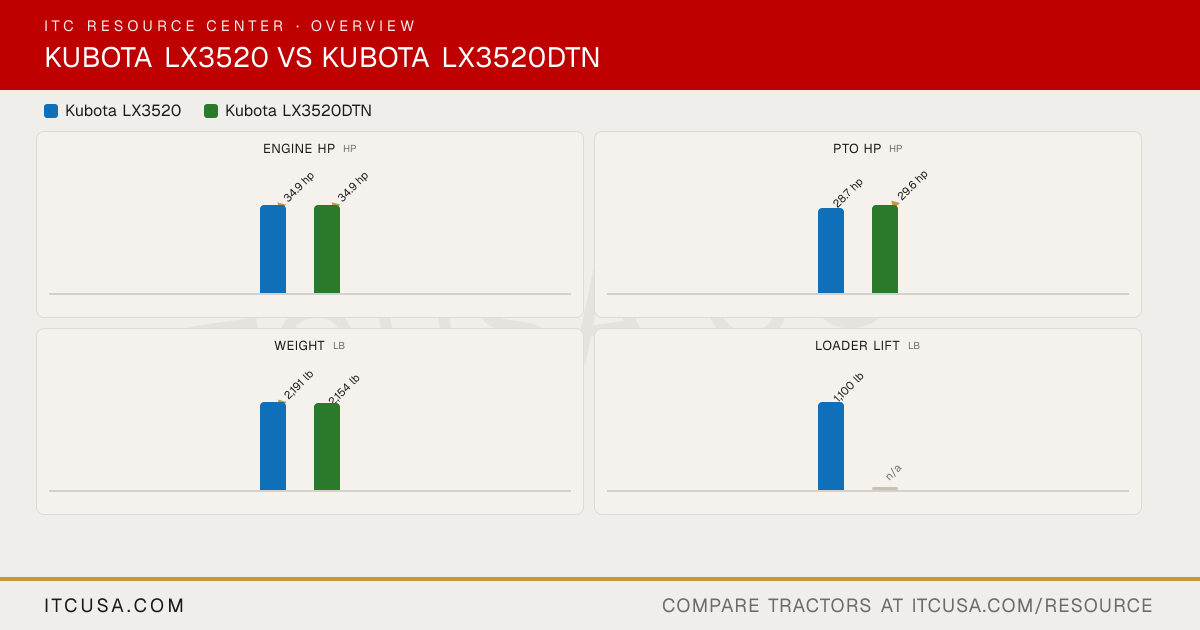

Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX3520
KubotaLX3520DTN
Engine Manufacturer
Kubota
Kubota
Engine Model
V1505-CR-TE5-D40R5
V1505-CR-TE5-D40R6
Engine Type
Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders
4
4
Displacement
91.4 in³
91.4 in³
Rated Engine Speed
2700 rpm
2600 rpm
Engine Power (Gross)
34.9 hp
34.9 hp
PTO Power
28.7 hp
29.6 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Pressurized radiator
Pressurized radiator
Air Cleaner
6 in paper filter (with dual element)
6 in paper filter (with dual element)
Fuel System
Direct injection
Direct injection
Alternator
Not Published
Not Published
Pump Type
Dual pump
Dual pump
Implement Flow
5.4 gpm
5.2 gpm
Steering Flow
4.1 gpm
Not Published
Total Hydraulic Flow
9.5 gpm
9.1 gpm
Overall Hydraulic Pump Flow
9.5 gpm
9.1 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
0
No. of Optional Remote Valves
Optional, up to 2
Optional, up to 2
Fuel Tank Capacity
8.5 gal
8.5 gal
Coolant Capacity
4.5 qt
4.5 qt
Crankcase Capacity
5.0 qt
5.0 qt
Transmission / Hydraulic System Capacity
5.5 gal
5.5 gal
Front Axle Fluid Capacity
4.8 qt
4.8 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
2460 rpm
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2535 lb
2348 lb
Hitch Lift Capacity (at 24”)
1962 lb
1819 lb
Lift Control Type
Position control valve
Position control valve
Transmission Type
HST (3 ranges)
Gear
No. of Speeds
HST (3 range)
12 forward, 12 reverse
Max Travel Speed (Forward)
17.0 mph
14.7 mph
Max Travel Speed (Reverse)
13.0 mph
14.6 mph
Clutch
Not Published
Dry type single stage
Differential Lock & Limited Slip Options
Standard
Standard
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Multi-plate wet disk
Multi-plate wet disk
Seat Suspension & Adjustability
Deluxe suspension seat (high back, designed to absorb shock)
Not Published
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
1100 lb
Overall Length with 3-Point Hitch
116.1 in
98.2 in (without 3-point hitch)
Overall Width
53.7 in
39.4 in
Wheelbase
66.7 in
61.0 in
Ground Clearance
8.9 in
12.8 in
Min. Turn Radius without Brakes
7.5 ft (with brake applied)
7.5 ft (with brake applied)
Height to Top of ROPS
88.4 in
84.0 in
Height to Top of ROPS (folded)
Not Published
56.7 in
Height to Top of Cab Model
85.6 in
85.6 in
Tractor Weight (Base)
2191 lb
2154 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural
R1 Agricultural - Front
180/85D12
6-14
R1 Agricultural - Rear
320/85D16
8.3-24
R3 Turf - Front
24x8.5-14
Not Published
R3 Turf - Rear
13.6-16
Not Published
R4 Industrial - Front
23x8.5-12 or 25x8.5-14
Not Published
R4 Industrial - Rear
14-17.5 or 15-19.5
Not Published
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Not Published
Loader Model
LA545
Not Published
Loader Lift Height
87.6 in
Not Published
Loader Lift Capacity (Full Height)
1100 lb
Not Published
Loader Breakout Force
Not Published
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
