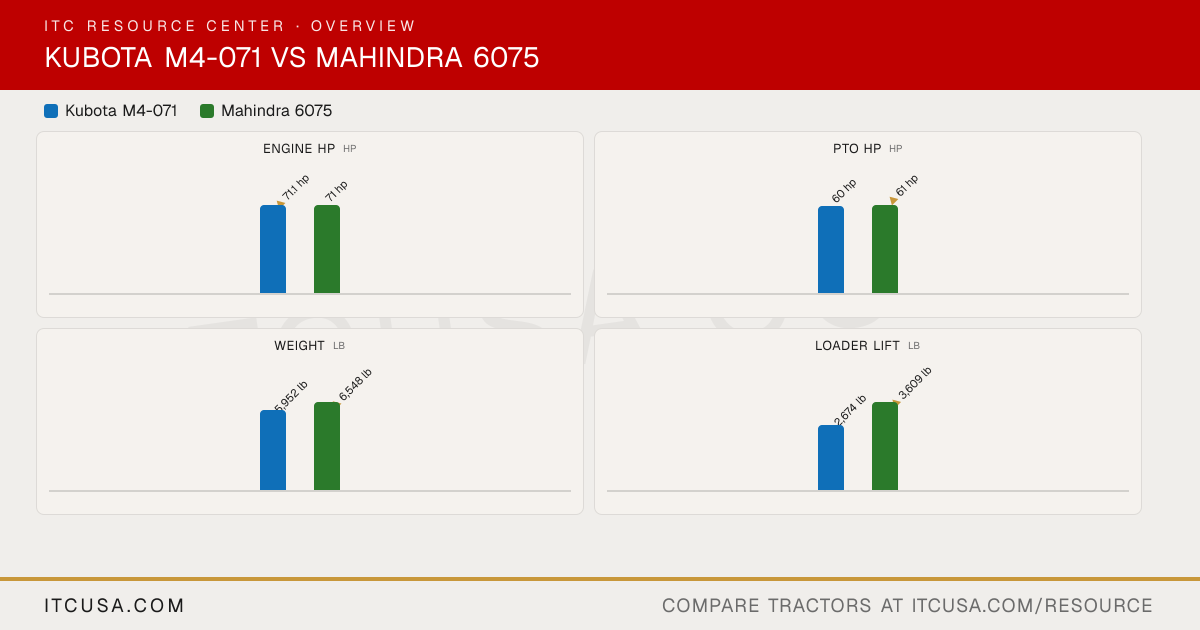

▶ EngineEngine Manufacturer Kubota Mahindra Engine Model V3307-CR-TE4 VNEM 373 Engine Type 4-cylinder, turbocharged, common-rail diesel Turbocharged and intercooled, common-rail, liquid-cooled diesel (Tier 4 Final) No. of Cylinders 4 3 Displacement 203 in³ 161.7 in³ Rated Engine Speed 2400 rpm 2100 rpm Engine Power (Gross) 71.1 hp 71 hp PTO Power 60 hp 61 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Not Published Fuel System Common rail direct injection Common rail direct injection Alternator 130 A Power Shuttle: 55 A; Power Shuttle Cab: 140 A ▶ HydraulicsPump Type Not Published Not Published Implement Flow 16.7 gpm 11.1 gpm Steering Flow 6.3 gpm 4.6 gpm Total Hydraulic Flow 23.0 gpm (16.7 + 6.3, computed) 15.7 gpm Overall Hydraulic Pump Flow 23.0 gpm (16.7 + 6.3, computed) 15.7 gpm Hydraulic System Type Open center Open center, position and draft control, telescoping stabilizers and flex links Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 (SCD) Double auxiliary valves No. of Optional Remote Valves Max. 3 3rd valve ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 23.8 gal Coolant Capacity 10.6 qt Not Published Crankcase Capacity 12.7 qt Not Published Transmission / Hydraulic System Capacity 49.6 qt Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake 2 speed independent push button type 1 PTO (wet clutch) PTO Rear 540 rpm (540/540E optional) 540 @ 1993 rpm and 540E @ 1469 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I / II CAT I & II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3,307 lb 5,952 lb Lift Control Type Position, draft (top link sensing) and mixed control Position and draft control ▶ Transmission & DrivetrainTransmission Type Fully synchronized 6-speed main gear shift with electro-hydraulic shuttle, 12F/12R (option: 18F/18R with creep) Full synchro mesh speed and constant mesh range No. of Speeds F12 / R12 (option: F18 / R18 with creep) 15F / 15R Max Travel Speed (Forward) Not Published 21.4 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Multiple wet disc Power shuttle with wet clutch and torsional damper Differential Lock & Limited Slip Options Front: limited-slip differential; Rear: mechanical differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering with tiltable steering column Brakes Hydraulic wet disc Oil immersed brakes, lever actuated parking brake Seat Suspension & Adjustability Not Published mComfort seat with contoured cushions, armrests and adjustable legroom; air-ride suspension seat in cab Front Axle Type Bevel gear type (4WD, mechanical on-the-go 4WD clutch) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 75.6 in 82 in Wheelbase 84.1 in 87.4 in Ground Clearance 18.1 in (front axle crop clearance) 15.5 in Min. Turn Radius without Brakes 11.8 ft 12.5 ft (3.8 m) Height to Top of ROPS Not Published 106 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 101 in 115 in Overall Length 144 in 152.7 in ▶ WeightTractor Weight (Base) 5,952 lb 6,548 lb (6075 Power Shuttle); 7,495 lb (6075 Power Shuttle Cab) Weight with ROPS and Loader Not Published 8,428 lb (6,548 + 1,880, computed; 1,604.8 gal loader shipping weight) Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard: 320/70R24 front, 420/75R34 rear Agricultural, Industrial R1 Agricultural - Front 320/70R24 11.2 x 24 R1 Agricultural - Rear 420/75R34 16.9 x 30 R3 Turf - Front 9.50-24 Not Published R3 Turf - Rear 18.4-26 Not Published R4 Industrial - Front 14-17.5 43 x 16-20 R4 Industrial - Rear 16.9-24 18.4-28 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid steer tool carrier system for ultra-fast attachments hookup Loader Model LA1154A 6075L Loader Lift Height LA1154A: 133.0 in (height position); 117.6 in (power position) Loader 6075L: 133 in Loader Lift Capacity (Full Height) LA1154A: 2,674 lb (height position); 2,928 lb (power position) Loader 6075L: 3,609 lb (at pivot pin) Loader Breakout Force LA1154A: 4,079 lbf (height position); 5,128 lbf (power position) Loader 6075L: 5,000 lb ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours, all usage 5-year limited powertrain warranty
