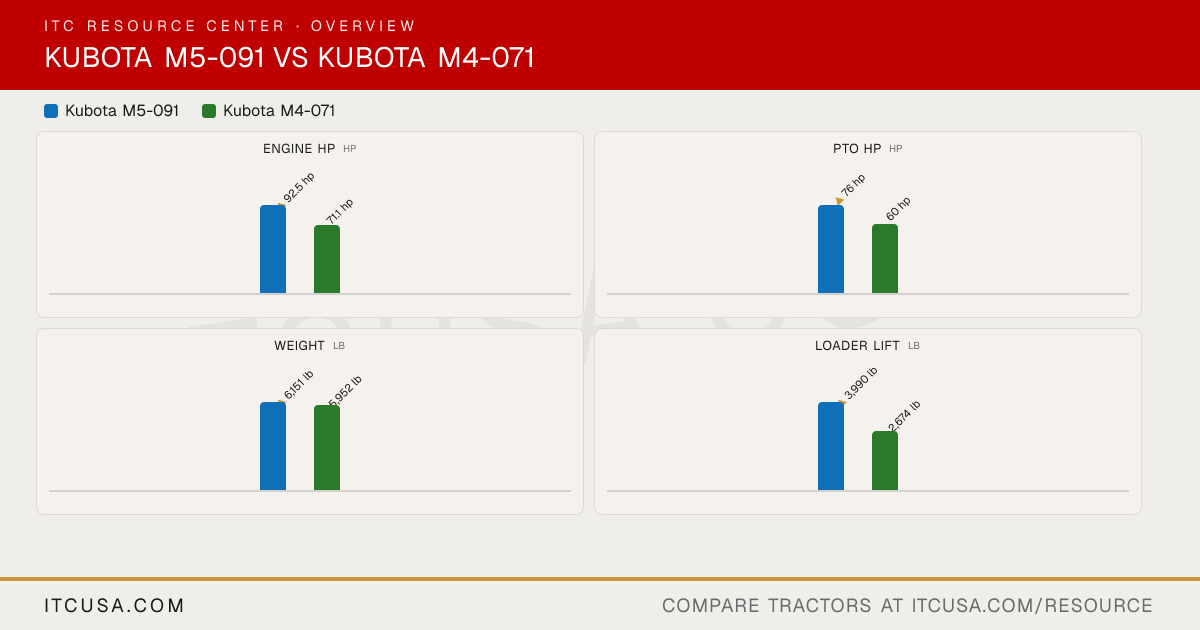

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V3800CR-TIEF4 V3307-CR-TE4 Engine Type 4-cylinder, turbocharged and intercooled, common-rail diesel, DPF, DOC and SCR 4-cylinder, turbocharged, common-rail diesel No. of Cylinders 4 4 Displacement 230 in³ 203 in³ Rated Engine Speed 2400 rpm 2400 rpm Engine Power (Gross) 92.5 hp 71.1 hp PTO Power 76 hp 60 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry paper, dual element, 8 in diameter, with pre-cleaner Not Published Fuel System Common rail direct injection Common rail direct injection Alternator 60 A 130 A ▶ HydraulicsPump Type Gear pump Not Published Implement Flow 15.9 gpm 16.7 gpm Steering Flow 5.4 gpm 6.3 gpm Total Hydraulic Flow 21.3 gpm 23.0 gpm (16.7 + 6.3, computed) Overall Hydraulic Pump Flow 21.3 gpm 23.0 gpm (16.7 + 6.3, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 15.7 gpm Not Published No. of Standard Remote Valves 2 standard (3 maximum) 1 (SCD) No. of Optional Remote Valves Not Published Max. 3 ▶ Fluid CapacityFuel Tank Capacity 27.7 gal 23.8 gal Coolant Capacity 11 qt 10.6 qt Crankcase Capacity 11.3 qt 12.7 qt Transmission / Hydraulic System Capacity 63.4 qt 49.6 qt Front Axle Fluid Capacity 6.3 qt (differential) plus 3.7 qt (each bevel gear case) Not Published ▶ PTO & HitchPTO Type Live-independent PTO, electro-hydraulic clutch with brake Live-independent PTO, electro-hydraulic clutch with brake PTO Rear 540 rpm (540/540E on 12-speed models) 540 rpm (540/540E optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category I / II Hitch Lift Capacity 7,055 lb Not Published Hitch Lift Capacity (at 24”) 4,630 lb (8-speed); 6,063 lb (12-speed) 3,307 lb Lift Control Type Position, draft (top link sensing) and mixed control Position, draft (top link sensing) and mixed control ▶ Transmission & DrivetrainTransmission Type Fully synchronized main gear shift with electro-hydraulic shuttle Fully synchronized 6-speed main gear shift with electro-hydraulic shuttle, 12F/12R (option: 18F/18R with creep) No. of Speeds 8 forward, 8 reverse (8-speed models); 12 forward, 12 reverse (12-speed models) F12 / R12 (option: F18 / R18 with creep) Max Travel Speed (Forward) 17.7 mph (8-speed); 22.6 mph (12-speed) Not Published Max Travel Speed (Reverse) 8-speed: 18.4 mph; 12-speed: 23.5 mph Not Published Clutch Multiple wet disc Multiple wet disc Differential Lock & Limited Slip Options Front: limited-slip differential; Rear: mechanical differential lock Front: limited-slip differential; Rear: mechanical differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Hydraulic wet disc Hydraulic wet disc Seat Suspension & Adjustability Suspension seat with fore and aft travel adjustment, suspension tension knob, backrest tilt adjustment and arm rest Not Published Front Axle Type Bevel gear type with 55 degree turning angle (4WD) Bevel gear type (4WD, mechanical on-the-go 4WD clutch) Front Axle Rating 5,730 lb Not Published Drawbar Capacity 3,300 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 78.3 in 75.6 in Wheelbase 88.6 in 84.1 in Ground Clearance 17.7 in (minimum, drawbar bracket) 18.1 in (front axle crop clearance) Min. Turn Radius without Brakes 13.8 ft 11.8 ft Height to Top of ROPS 98.9 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Applicable 101 in Overall Length 155.9 in 144 in ▶ WeightTractor Weight (Base) 6,151 lb 5,952 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front: 7.50-18, 9.5L-15, 9.5-22, 10.00-16, 11.2-24, 12.4-24; Rear: 16.9-30, 16.9-34, 18.4-30 Standard: 320/70R24 front, 420/75R34 rear R1 Agricultural - Front 11.2-24 320/70R24 R1 Agricultural - Rear 18.4-30 420/75R34 R3 Turf - Front 9.5L-15 F2 or 27x9.50-15 HF-1 (rib fronts paired with the R3 rears) 9.50-24 R3 Turf - Rear 18.4-26 R3 or 19.5L-24 R3 18.4-26 R4 Industrial - Front 9.5L-15 F2 (rib front paired with the R4 rear) 14-17.5 R4 Industrial - Rear 19.5L-24 R4 16.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Quick coupler, standard; Euro-type quick coupler, optional; tool-free attach and detach; single-lever hydraulic hose coupler, optional Not Published Loader Model LA1854 LA1154A Loader Lift Height 145.7 in (height position); 131.9 in (power position) LA1154A: 133.0 in (height position); 117.6 in (power position) Loader Lift Capacity (Full Height) 3,990 lb (height position); 4,144 lb (power position) LA1154A: 2,674 lb (height position); 2,928 lb (power position) Loader Breakout Force LA1854: 5,501 lb at bucket pivot pin (height position); 6,470 lb at bucket pivot pin (power position) LA1154A: 4,079 lbf (height position); 5,128 lbf (power position) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours, all usage
