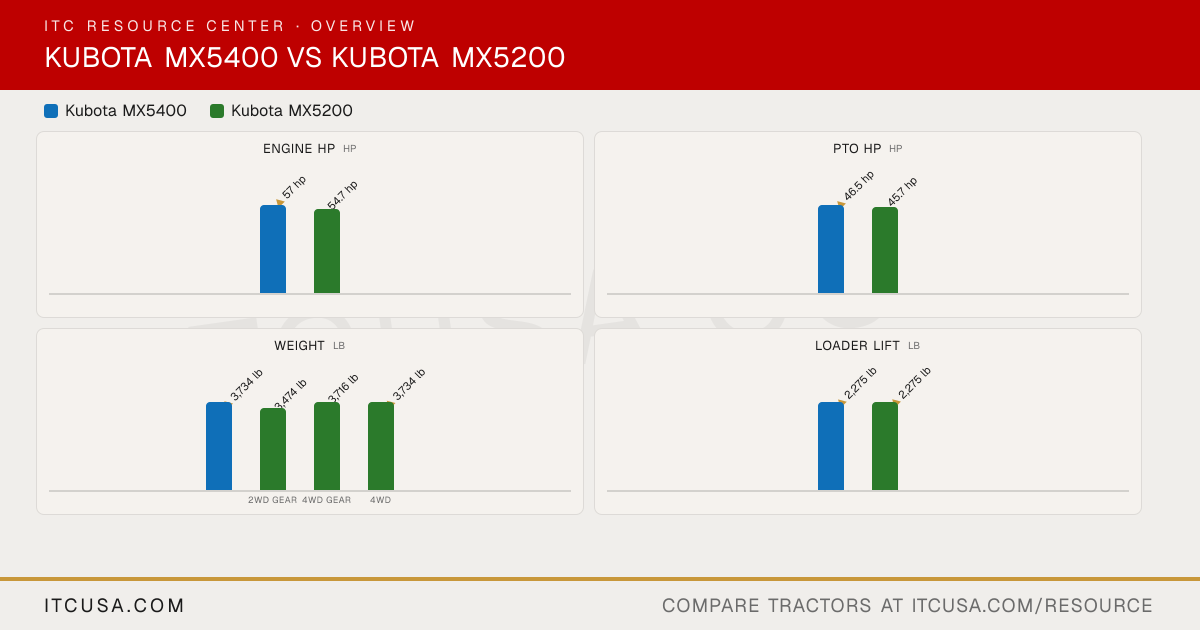

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V2403CR-T V2403-CR-TE4 Engine Type Liquid-cooled, diesel, 4-cylinder, Turbocharged 4-cylinder, turbocharged, common-rail, liquid-cooled diesel No. of Cylinders 4 4 Displacement 148.6 in³ 148.6 in³ Rated Engine Speed 2700 rpm 2700 rpm Engine Power (Gross) 57 hp 54.7 hp PTO Power 46.5 hp F (2WD gear), DT (4WD gear): 45.7 hp; HST (4WD): 44.2 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry-dual element Dry, dual element Fuel System Common Rail System (CRS), direct injection Common rail direct injection Alternator 45 A, 12 V 45 A ▶ HydraulicsPump Type Gear Not Published Implement Flow 9.5 gpm 9.5 gpm Steering Flow 4.9 gpm 4.9 gpm Total Hydraulic Flow 14.4 gpm (9.5 + 4.9, computed) 14.4 gpm (9.5 + 4.9, computed) Overall Hydraulic Pump Flow 14.4 gpm (9.5 + 4.9, computed) Not Published Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Maximum 3 (opt) Up to 3 (optional) ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 13.5 gal Coolant Capacity 6.9 qt 6.9 qt Crankcase Capacity 7.4 qt 9.9 qt Transmission / Hydraulic System Capacity 11.6 gal 11.6 gal Front Axle Fluid Capacity 8.9 qt Not Published ▶ PTO & HitchPTO Type Live independent, hydraulic PTO with PTO brake, wet clutch Live independent hydraulic PTO with PTO brake, wet clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch I & II Category I and II Hitch Lift Capacity 2,870 lb Not Published Hitch Lift Capacity (at 24”) 2,310 lb 2,310 lb Lift Control Type Position (std), Draft (opt) Position control standard, draft control optional ▶ Transmission & DrivetrainTransmission Type 3-range hydrostatic (HST) F (2WD gear), DT (4WD gear): gear-drive with synchronized shuttle, 8F/8R (4-speed main, partially synchronized 3rd and 4th); HST (4WD): hydrostatic transmission, 3-range No. of Speeds 3-range F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range Max Travel Speed (Forward) DT (2WD/4WD): 17.3 mph; HST (4WD): 17.7 mph F (2WD gear), DT (4WD gear): 16.0 mph; HST (4WD): 16.1 mph Max Travel Speed (Reverse) DT (2WD/4WD): 15.9 mph; HST (4WD): 16.0 mph F (2WD gear), DT (4WD gear): 14.7 mph; HST (4WD): 14.5 mph Clutch No clutch F (2WD gear), DT (4WD gear): dry single plate; HST (4WD): no clutch Differential Lock & Limited Slip Options Rear differential lock standard (mechanical) Rear differential lock standard (mechanical) ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post foldable ROPS Steering Hydrostatic power steering Hydrostatic power steering Brakes Mechanical wet disc Mechanical wet disc Seat Suspension & Adjustability High-back suspension seat (optional arm rests) High-back suspension seat Front Axle Type Bevel gear type (4WD) 4WD: Bevel gear type Front Axle Rating Not Published Not Published Drawbar Capacity 1,650 lb 1,650 lb ▶ Dimensions & ManeuverabilityOverall Width 69.7 in 69.7 in Wheelbase 74.6 in 74.6 in Ground Clearance 15.2 in 15.2 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) F (2WD gear): 8.5 ft; DT (4WD gear), HST (4WD): 8.9 ft (with brake applied) Height to Top of ROPS 95.7 in 95.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Applicable Not Published Overall Length 125.9 in (without 3-point hitch) F (2WD gear): 127.8 in; DT (4WD gear), HST (4WD): 125.2 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 3,734 lb (with ROPS) F (2WD gear): 3,474 lb; DT (4WD gear): 3,716 lb; HST (4WD): 3,734 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard ag: 9.5-16 / 14.9-26 Standard ag: 7.5L-15 (2WD) or 9.5-16 (4WD) front, 14.9-26 rear R1 Agricultural - Front 9.5-16 F (2WD gear): 7.5L-15; DT (4WD gear), HST (4WD): 9.5-16 R1 Agricultural - Rear 14.9-26 14.9-26 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System 1065A: 2-Lever Quick Coupler for Loader Attachment LA1065: 2-lever quick coupler standard Loader Model LA1065 LA1065 Loader Lift Height 111.2 in (at pivot pin) LA1065: 111.2 in (at pivot pin) Loader Lift Capacity (Full Height) 2,275 lb (at pivot pin) LA1065: 2,275 lb (at pivot pin) Loader Breakout Force 3,102 lbf Not Published ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 2,000 hours, powertrain 72 months or 3,000 hours; commercial: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
