Kubota MX5200 vs Kubota MX5400
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota MX5400 leads 3 categories to 0 (5 tied). Machine pages: Kubota MX5200 and Kubota MX5400.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

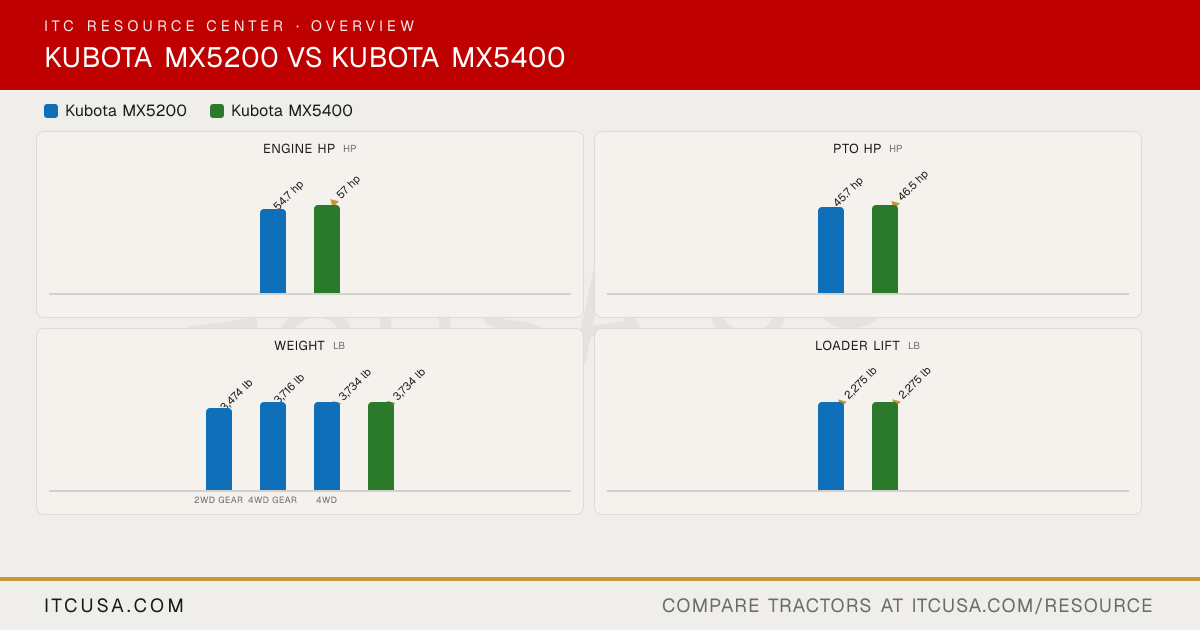

Category Verdict
| Spec | Kubota MX5200 | Kubota MX5400 |
|---|---|---|
| Engine HP (hp) | 54.7 hp | ▲ 57 hp |
| PTO HP (hp) | 45.7 hp | ▲ 46.5 hp |
| Weight (lb) | 3,734 lb | 3,734 lb |
| Loader Lift (lb) | 2,275 lb | 2,275 lb |
| 3-Pt Lift (24 in) (lb) | 2,310 lb | 2,310 lb |
| Lift Height (in) | 111.2 in | 111.2 in |
| Breakout Force (lbf) | n/a | 3,102 lbf |
| Hydraulic Flow (gpm) | 14.4 gpm | 14.4 gpm |
| Travel Speed (mph) | 16 mph | ▲ 17.7 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaMX5200 | KubotaMX5400 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V2403CR-T | V2403CR-T |
| Engine Type | Common rail direct injection, liquid-cooled, turbocharged 4-cylinder diesel | Liquid-cooled, diesel, 4-cylinder, Turbocharged |
| No. of Cylinders | 4 | 4 |
| Displacement | 148.6 in³ | 148.6 in³ |
| Rated Engine Speed | 2700 rpm | 2700 rpm |
| Engine Power (Gross) | 54.7 hp | 57 hp |
| PTO Power | F (2WD gear), DT (4WD gear): 45.7 hp; HST (4WD): 44.2 hp | 46.5 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry, dual element | Dry-dual element |
| Fuel System | Common rail direct injection | Common Rail System (CRS), direct injection |
| Alternator | 45 A | 45 A, 12 V |
Kubota MX5200 vs Kubota MX5400: Quick Answers
- Which has more horsepower, the Kubota MX5200 or the Kubota MX5400?
- The Kubota MX5400 leads on engine hp at 57 hp hp, compared to 54.7 hp hp for the Kubota MX5200.
- Which has more PTO horsepower, the Kubota MX5200 or the Kubota MX5400?
- The Kubota MX5400 leads on pto hp at 46.5 hp hp, compared to 45.7 hp hp for the Kubota MX5200.
- Which is heavier, the Kubota MX5200 or the Kubota MX5400?
- They are effectively tied: both machines are rated at 3,734 lb lb for weight.
- Which has more loader lift capacity, the Kubota MX5200 or the Kubota MX5400?
- They are effectively tied: both machines are rated at 2,275 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the Kubota MX5200 or the Kubota MX5400?
- They are effectively tied: both machines are rated at 2,310 lb lb for 3-pt lift (24 in).
