Bad Boy Tractors 5045 Cab vs Kubota MX5200

Across 8 measurable specs, the Bad Boy Tractors 5045 Cab leads 5 categories to 3. Machine pages: Bad Boy Tractors 5045 Cab and Kubota MX5200.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

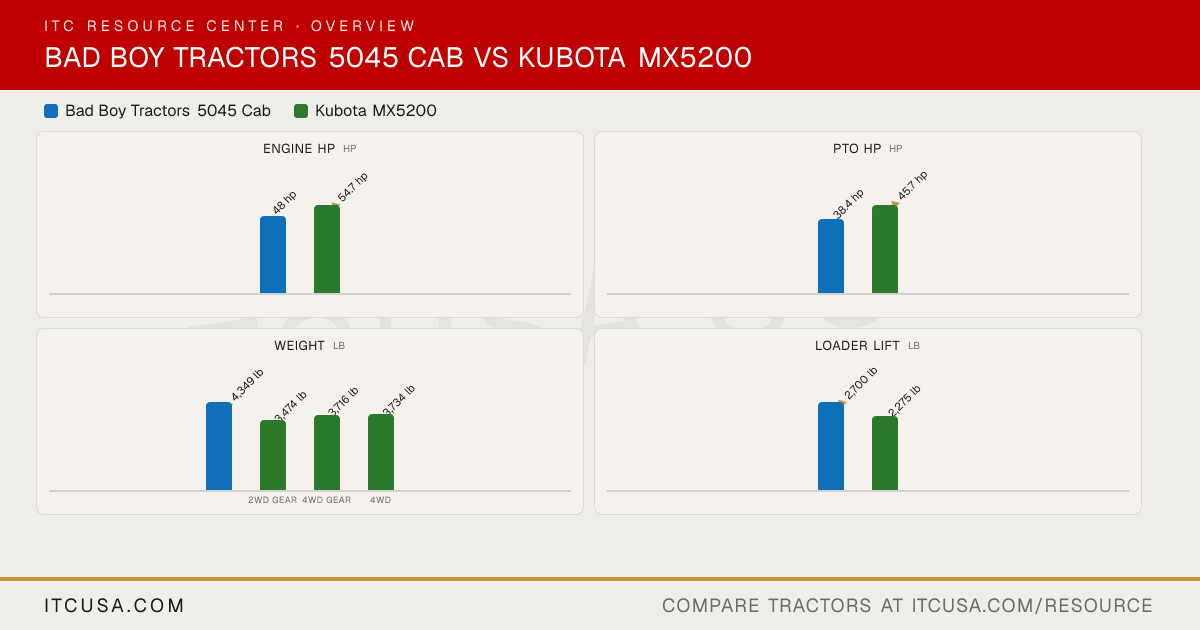

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	KubotaMX5200

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A2300N3	V2403CR-T
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	Common rail direct injection, liquid-cooled, turbocharged 4-cylinder diesel
No. of Cylinders	4	4
Displacement	139.5 in³	148.6 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	48 hp	54.7 hp
PTO Power	38.4 hp	F (2WD gear), DT (4WD gear): 45.7 hp; HST (4WD): 44.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry, dual element
Fuel System	Not Published	Common rail direct injection
Alternator	70 A, 12 V	45 A
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	10.7 gpm	9.5 gpm
Steering Flow	5 gpm	4.9 gpm
Total Hydraulic Flow	15.7 gpm	14.4 gpm (9.5 + 4.9, computed)
Overall Hydraulic Pump Flow	15.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	Not Published
No. of Optional Remote Valves	Not Published	Up to 3 (optional)
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	13.5 gal
Coolant Capacity	1.56 gal	6.9 qt
Crankcase Capacity	1.20 gal	9.9 qt
Transmission / Hydraulic System Capacity	10.04 gal	11.6 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Live independent hydraulic PTO with PTO brake, wet clutch
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I and II
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2310 lb
Lift Control Type	Position control	Position control standard, draft control optional
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	F (2WD gear), DT (4WD gear): Gear-drive with synchronized shuttle, 8F/8R (4-speed main, partially synchronized 3rd and 4th, 2-range); HST (4WD): Hydrostatic transmission, 3-range
No. of Speeds	4 range (HST)	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range
Max Travel Speed (Forward)	19.5 mph	F (2WD gear), DT (4WD gear): 16.0 mph; HST (4WD): 16.1 mph
Max Travel Speed (Reverse)	19.5 mph	F (2WD gear), DT (4WD gear): 14.7 mph; HST (4WD): 14.5 mph
Clutch	None (HST)	F (2WD gear), DT (4WD gear): Dry single plate; HST (4WD): No clutch
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock standard (mechanical)
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Two-post foldable ROPS
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Mechanical wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	High-back suspension seat
Front Axle Type	Selectable 4WD	4WD: Bevel gear type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1650 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	F (2WD gear): 127.8 in; DT (4WD gear), HST (4WD): 125.2 in (w/o 3P) (without 3-point hitch)
Overall Width	64.9 in	69.7 in
Wheelbase	71.1 in	74.6 in
Ground Clearance	15.5 in	F (2WD gear): 15.9 in; DT (4WD gear), HST (4WD): 15.2 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	F (2WD gear): 8.5 ft; DT (4WD gear), HST (4WD): 8.9 ft (w/brake) (with brake applied)
Height to Top of ROPS	Not Published	95.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	Not Published
▶Weight
Tractor Weight (Base)	4,349 lb	F (2WD gear): 3474 lb; DT (4WD gear): 3716 lb; HST (4WD): 3734 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	Standard ag: 7.5L-15 (2WD) or 9.5-16 (4WD) front, 14.9-26 rear
R1 Agricultural - Front	9.5-16	F (2WD gear): 7.5L-15; DT (4WD gear), HST (4WD): 9.5-16
R1 Agricultural - Rear	13.6-26	14.9-26
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
▶Loader & Attachments
Quick Attach Loader System	SSQA	LA1065: 2-lever quick coupler standard
Loader Model	BBL500	LA1065
Loader Lift Height	106.6 in	LA1065: 111.2 in
Loader Lift Capacity (Full Height)	2,700 lb	LA1065: 2275 lb
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 5045 Cab vs Kubota MX5200: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Kubota MX5200?

The Kubota MX5200 leads on engine hp at 54.7 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Kubota MX5200?

The Kubota MX5200 leads on pto hp at 45.7 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Kubota MX5200?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,734 lb lb for the Kubota MX5200.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Kubota MX5200?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 2,275 lb lb for the Kubota MX5200.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Kubota MX5200?

The Bad Boy Tractors 5045 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,310 lb lb for the Kubota MX5200.
