Kubota MX6000 vs Kubota M6060 | Side-by-side comparison | ITC Resource Center
Compare Tractors

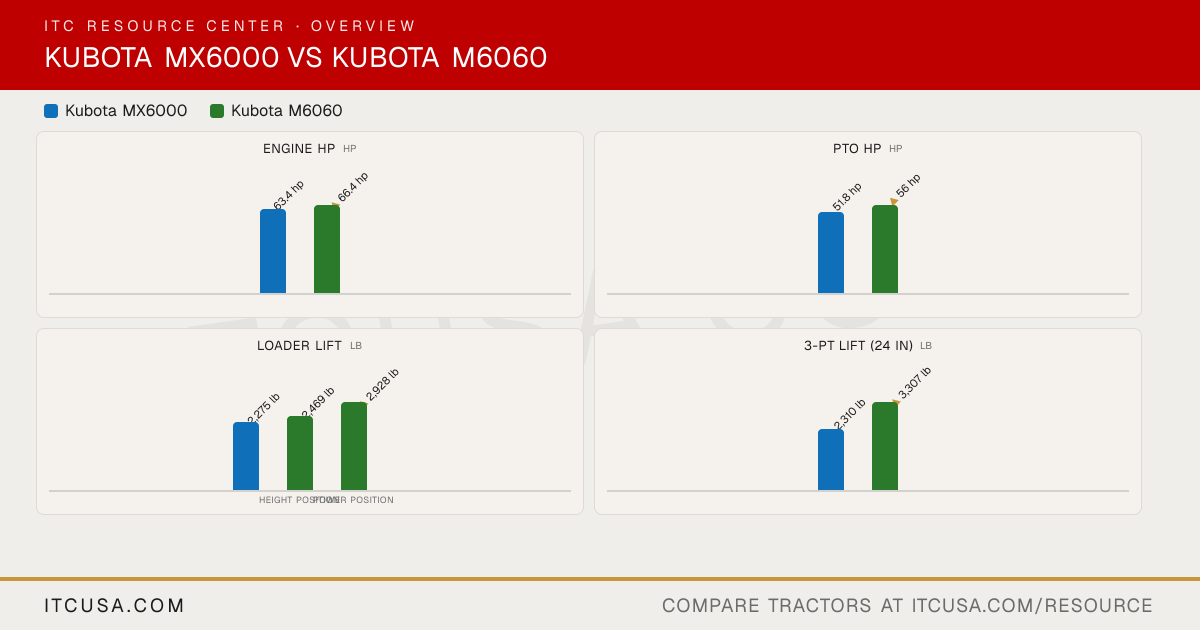

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaMX6000
KubotaM6060
PTO Power
51.8 hp
56 hp
Alternator
45 A, 12 V
45 A, 12 V
Air Cleaner
Dry-dual element
Not Published
Engine Type
Liquid-cooled, diesel, 4-cylinder, Turbocharged
Liquid-cooled, diesel, 4-cylinder, Turbocharged
Fuel System
Not Published
Common Rail System (CRS)
Displacement
148.6 (2434)
203.3 (3331)
No. of Cylinders
4
4
Rated Engine Speed
2700 rpm
2400 rpm
Cooling System Type
Liquid-cooled
Liquid-cooled
Engine Manufacturer
Kubota
Kubota
Engine Power (Gross)
63.4 hp
66.4 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Gear
Gear
Steering Flow
4.9 gpm
6.1 gpm
Implement Flow
9.5 gpm
11.0 gpm
Total Hydraulic Flow
14.4 gpm
17.1 gpm
Hydraulic System Type
Open Center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
14.4 gpm
17.1 gpm
No. of Optional Remote Valves
Maximum 3 (opt)
2nd, 3rd (optional)
No. of Standard Remote Valves
Not Published
1 (SCD)
PTO Rear
540 rpm
540 rpm (540/540E optional)
PTO Type
Live independent, hydraulic PTO with PTO brake, wet clutch
Live-independent PTO, electro-hydraulic clutch with brake
Lift Control Type
Position (std), Draft (opt)
Position, Draft (Top Link Sensing) & Mixed Control
Hitch Lift Capacity
Not Published
Not Published
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
I & II
I / II
Hitch Lift Capacity (at 24”)
2310 lbs
3307 lbs
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
Standard tire size
Standard tire size
R4 Industrial - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R1 Agricultural - Rear
14.9-26
16.9-28/14.9-28
R1 Agricultural - Front
9.5-16
HFC (2WD): 2.5 gal-15; HD/HDC (4WD): 9.5-24
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
ROPS: 13.5 gal; CAB: 11.9 gal
ROPS: 18.5 gal; CAB: 23.8 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
111.2 in
Height position: 132.7 in; Power position: 117.2 in
Loader Breakout Force
3102 lb (13798 N)
Not Published
Quick Attach Loader System
1065A: 2-Lever Quick Coupler for Loader Attachment
