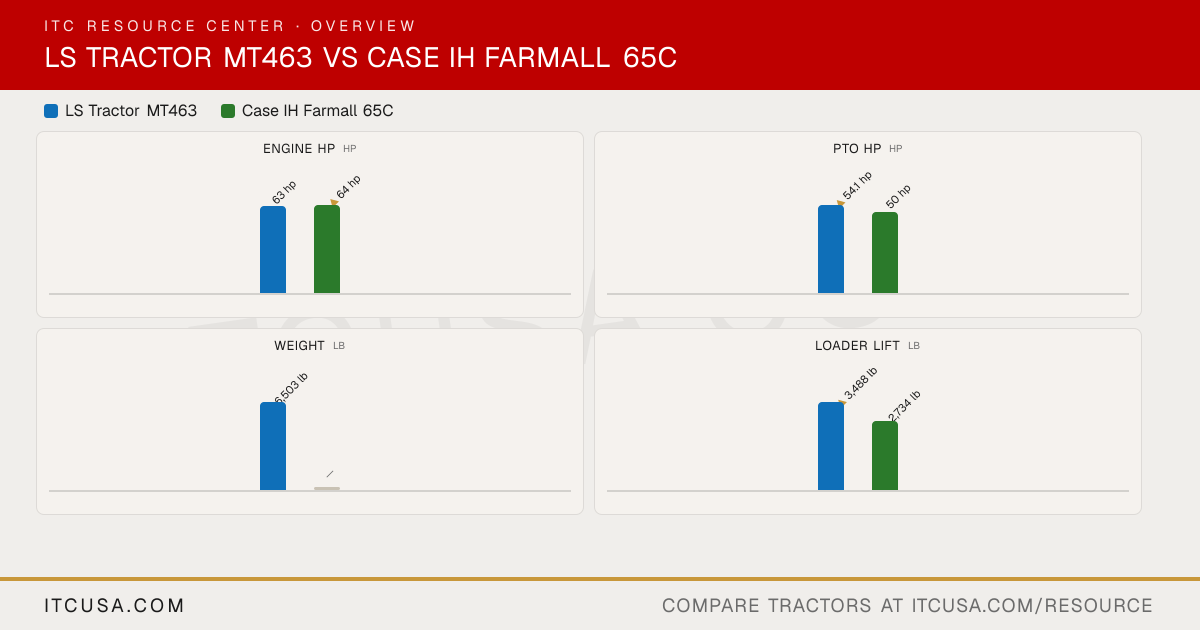

▶ EngineEngine Manufacturer LS Mtron FPT Engine Model L4C25-T F5DFL463B*G001 Engine Type In-line vertical, water cooled 4-cycle diesel, CRDI Turbocharged diesel No. of Cylinders 4 4 Displacement 152.85 in³ 207 in³ Rated Engine Speed 2500 rpm 2300 rpm Engine Power (Gross) 63 hp 64 hp PTO Power 54.1 hp 50 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Not Published Air Cleaner Dry Not Published Fuel System Delphi, CRDI Common rail Alternator 70 A, 12 V Not Published ▶ HydraulicsPump Type Gear type, engine drive Dual gear pumps Implement Flow 14.5 gpm 12.9 gpm Steering Flow 6.6 gpm 7.3 gpm Total Hydraulic Flow 21.1 gpm Not Published Overall Hydraulic Pump Flow 21.1 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Pairs (Front), 2 Pairs (Rear) 2 No. of Optional Remote Valves Not Published 3 ▶ Fluid CapacityFuel Tank Capacity 24.3 gal 23.8 gal Coolant Capacity 3.0 gal Not Published Crankcase Capacity 1.8 gal Not Published Transmission / Hydraulic System Capacity 16.5 gal Not Published Front Axle Fluid Capacity 2.3 gal Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 / 540E 540 rpm (540/540E optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category I/II Hitch Lift Capacity 4,079 lb Not Published Hitch Lift Capacity (at 24”) 3,483 lb 3,956 lb Lift Control Type Position & Draft Mechanical draft control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type Synchro Shuttle Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) No. of Speeds F16 x R16 Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry single clutch Wet clutch Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Mechanical rear differential lock; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Hydrostatic power steering Brakes Wet, Multi-disc Hydraulic wet disc Seat Suspension & Adjustability Seat With Suspension & Armrest Not Published Front Axle Type Not Published 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 140 in 145.8 in Overall Width 72.6 in 76 in Wheelbase 83.1 in 2WD: 85.8 in; MFD: 84 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 12.8 ft (3.9 m) Not Published Height to Top of ROPS 113.9 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 98 in ▶ WeightTractor Weight (Base) 5,313 lb Cab 2WD: 6,063 lb; Cab MFD: 6,548 lb Weight with ROPS and Loader 6,503 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard Ag 9.5-24 / 16.9-28; Industrial 10.5/80x18 10PR / 19.5Lx24 8PR; Large Ag 11.2-24 / 16.9-30; R14 320/85R20 119D / 420/75R34 142D 18.4R34 rear R1 Agricultural - Front 9.5-24 (Standard Ag); 11.2-24 (Large Ag) Not Published R1 Agricultural - Rear 16.9-28 (Standard Ag); 16.9-30 (Large Ag) Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 10.5/80x18 10PR Not Published R4 Industrial - Rear 19.5Lx24 8PR Not Published ▶ Loader & AttachmentsQuick Attach Loader System LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA) Compatible with L565 loader Loader Model LL5001 L565 Loader Lift Height LL5001: 132.9 in (height position); 116.8 in (power position) 105 in Loader Lift Capacity (Full Height) LL5001: 3,426 lb (height position); 3,488 lb (power position) 2,734 lb Loader Breakout Force Not Published 3,527 lb ▶ WarrantyWarranty Length & Coverage 6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty Not Published
