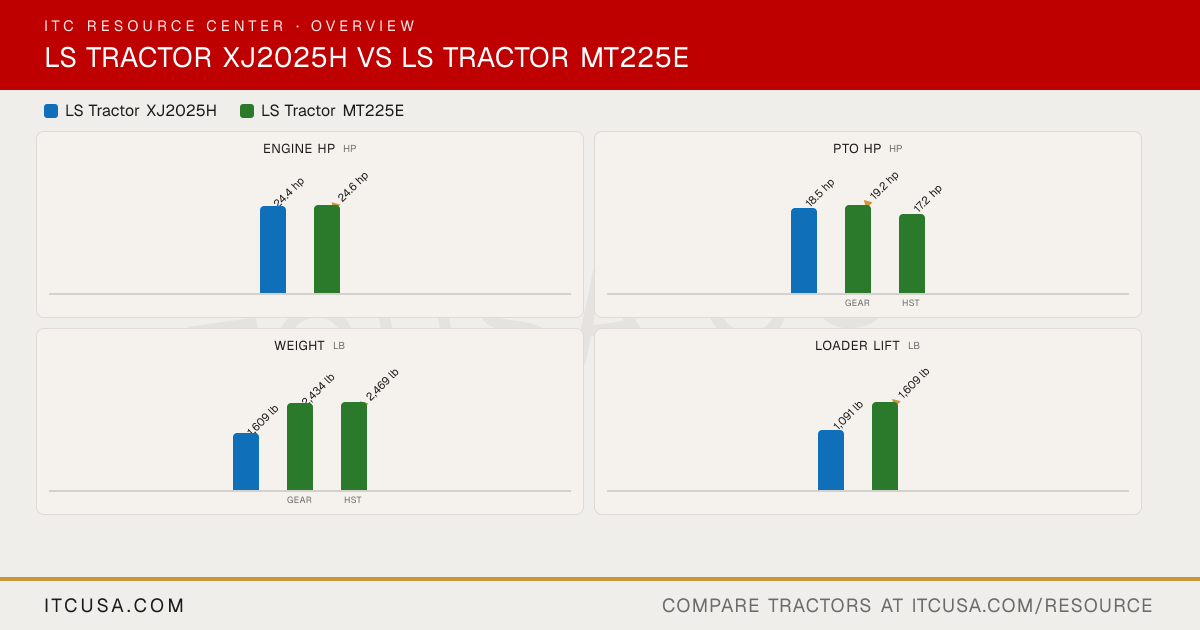

▶ EngineEngine Manufacturer Mitsubishi Mitsubishi Engine Model S3L2 S3L2 Engine Type 3-cylinder, indirect injection, water-cooled 3-cylinder, liquid-cooled, naturally aspirated IDI diesel No. of Cylinders 3 3 Displacement 80.4 in³ 80.4 in³ Rated Engine Speed 2500 rpm 2500 rpm Engine Power (Gross) 24.4 hp 24.6 hp PTO Power 18.5 hp MT225E (gear): 19.2 hp; MT225HE (HST): 17.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry Dry Fuel System Indirect injection Indirect injection (IDI) Alternator 50 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Transmission drive Gear pump, engine driven Implement Flow 5.9 gpm 7.9 gpm Steering Flow 2.6 gpm 4.6 gpm Total Hydraulic Flow 8.5 gpm 12.5 gpm Overall Hydraulic Pump Flow 8.5 gpm 12.5 gpm Hydraulic System Type Position control Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None None standard No. of Optional Remote Valves 2 quick couplers (optional) 1 or 2 optional (double-acting, 2 or 4 quick couplers) ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 7.4 gal Coolant Capacity 1.0 gal 1.3 gal Crankcase Capacity 1.1 gal 1.1 gal Transmission / Hydraulic System Capacity 5.3 gal 8.5 gal Front Axle Fluid Capacity 0.8 gal 1.7 gal ▶ PTO & HitchPTO Type Independent (electro-hydraulic) Independent PTO Rear Standard (540 rpm) 540 rpm Mid-PTO Availability Standard (2,000 rpm) Optional Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,433 lb 1,808 lb Hitch Lift Capacity (at 24”) 1,058 lb 1,433 lb Lift Control Type Manual position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic Drive MT225E (gear): Synchro shuttle; MT225HE (HST): HST No. of Speeds 2 ranges MT225E (gear): F12 x R12; MT225HE (HST): 3 ranges (HST) Max Travel Speed (Forward) 11.5 mph Not Published Max Travel Speed (Reverse) 7.2 mph Not Published Clutch Not Published MT225E (gear): dry single clutch; MT225HE (HST): n/a Differential Lock & Limited Slip Options Mechanical pedal type Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet, multi-disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Front wheel mechanical assist (4WD) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed Not Published ▶ Dimensions & ManeuverabilityOverall Width 44.9 in 54 in Wheelbase 59 in 66 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 8.2 ft (with brake applied) 10.5 ft Height to Top of ROPS 84.5 in 88 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 103 in (bumper to link) 118 in (frame to link) ▶ WeightTractor Weight (Base) 1,609 lb MT225E (gear): 2,434 lb; MT225HE (HST): 2,469 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Turf, Industrial Ag, industrial or turf tires at no additional cost R1 Agricultural - Front 23X10.50-12 7-14 R1 Agricultural - Rear 255/75-15.3 11.2-24 R3 Turf - Front 23x8.5-12 25x8.5-14 R3 Turf - Rear 33x12-16.5 41x14-20 R4 Industrial - Front 23x8.5-12 25x8.5-14 R4 Industrial - Rear 33x12-16.5 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System LL2102: Bobcat-type quick attachment (ISO 24410), latch handle with latch pin LL3300: quick attach loader with skid steer compatible bucket Loader Model LL2102 LL3300 Loader Lift Height LL2102: 85.7 in LL3300: 91.1 in Loader Lift Capacity (Full Height) LL2102: 1,091 lb (at pivot pin, max height) LL3300: 1,609 lb (at pivot pin) Loader Breakout Force LL2102: 1,426 lb (at pivot pin) LL3300: 2,701 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 6-year limited warranty 6-year limited warranty
