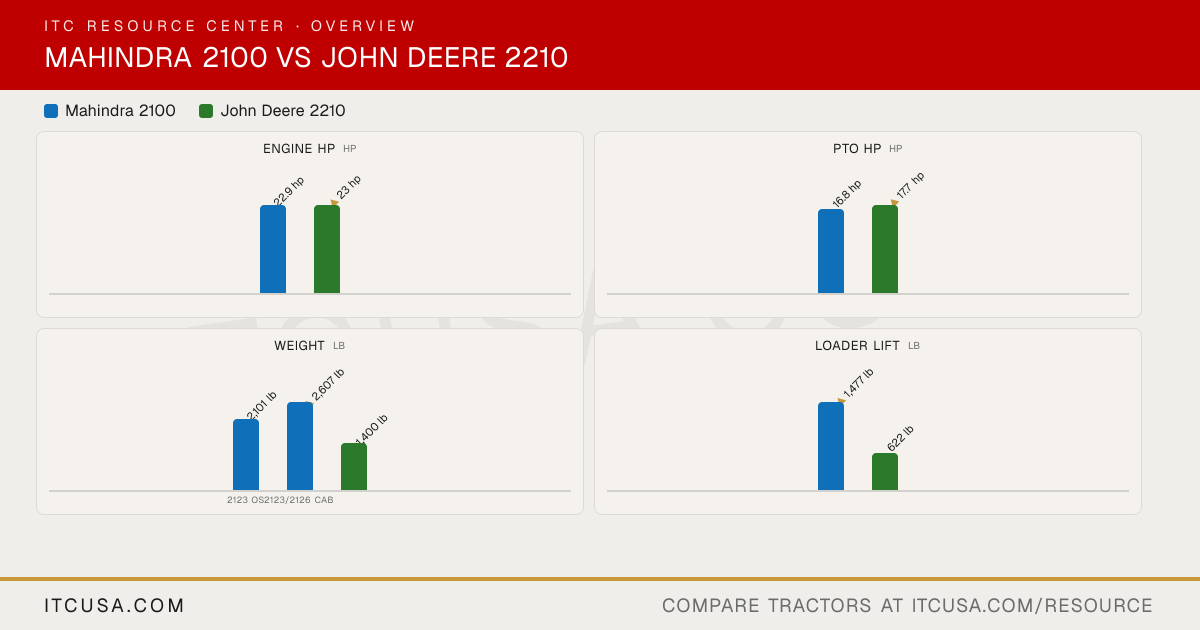

▶ EngineEngine Manufacturer Mitsubishi Yanmar Engine Model MVS3L2 3TNE74 Engine Type Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine 3-cylinder liquid-cooled diesel, indirect injection No. of Cylinders 3 3 Displacement 80.4 in³ 61.4 in³ Rated Engine Speed 2500 rpm 3000 rpm Engine Power (Gross) 22.9 hp 23 hp PTO Power 16.8 hp 17.7 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Dry type with safety element Fuel System Indirect injection Indirect injection, in-line fuel pump with solenoid shutoff Alternator 55 A, 12 V 20 A ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11.2 gpm 3 gpm Steering Flow Not Published 2.5 gpm Total Hydraulic Flow Not Published 5.5 gpm Overall Hydraulic Pump Flow Not Published 5.5 gpm Hydraulic System Type Open center, full-live hydraulic with position control Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Single or dual Not Published ▶ Fluid CapacityFuel Tank Capacity 5.8 gal 5.0 gal Coolant Capacity Not Published 3.2 qt Crankcase Capacity Not Published 2.2 qt Transmission / Hydraulic System Capacity Not Published 3.4 gal Front Axle Fluid Capacity Not Published 2.6 qt ▶ PTO & HitchPTO Type Live Independent, wet disk clutch PTO Rear 540 rpm @ 2376 rpm 540 rpm Mid-PTO Availability 2500 rpm @ 2500 rpm Standard, 2100 rpm Category, 3-Point Hitch CAT I with telescoping stabilizers Category 1 Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 1760 lb 701 lb Lift Control Type Not Published Not Published ▶ Transmission & DrivetrainTransmission Type HST, 3 range 2-range hydrostatic No. of Speeds Infinite Infinite forward and reverse, 2 ranges Max Travel Speed (Forward) Not Published 8.4 mph Max Travel Speed (Reverse) Not Published 6.3 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post fixed ROPS; four-wheel drive Steering Hydrostatic power Power steering Brakes Two pedal Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Mechanical front wheel drive (MFWD), standard, all ranges, engages on the go Front Axle Rating Not Published 3120 lb Drawbar Capacity Not Published 562 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 112.7 in 104.3 in Overall Width 54.4 in 47.2 in Wheelbase Not Published 57.1 in Ground Clearance Not Published 7.7 in (front axle) Min. Turn Radius without Brakes 8.2 ft 88.6 in (MFWD off) Height to Top of ROPS 93.6 in 77.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 84.4 in Not Published ▶ WeightTractor Weight (Base) 2123 OS: 2101 lb; 2123/2126 Cab: 2607 lb 1400 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published 18x8.5-10 front and 26x12.00-12 rear; R1 standard, R3 optional R1 Agricultural - Front Not Published 18x8.5-10 R1 Agricultural - Rear Not Published 26x12.00-12 R3 Turf - Front 8.5 x 14 18x8.5-10 R3 Turf - Rear 13.5 - 16 26x12.00-12 R4 Industrial - Front 8.5 x 14 18x8.50-10 R4 Industrial - Rear 12.4 - 16 26x12.00-12 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model L21 210 Loader Lift Height L21: 77 in 210: 68.5 in Loader Lift Capacity (Full Height) L21: 1477 lb 210: 622 lb (to max height at pivot point) Loader Breakout Force L21: 2160 lb 210: 1577 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage 5+2 years limited powertrain warranty Not Published
