Mahindra 5570 vs TYM T5074 | Side-by-side comparison | ITC Resource Center
Compare Tractors

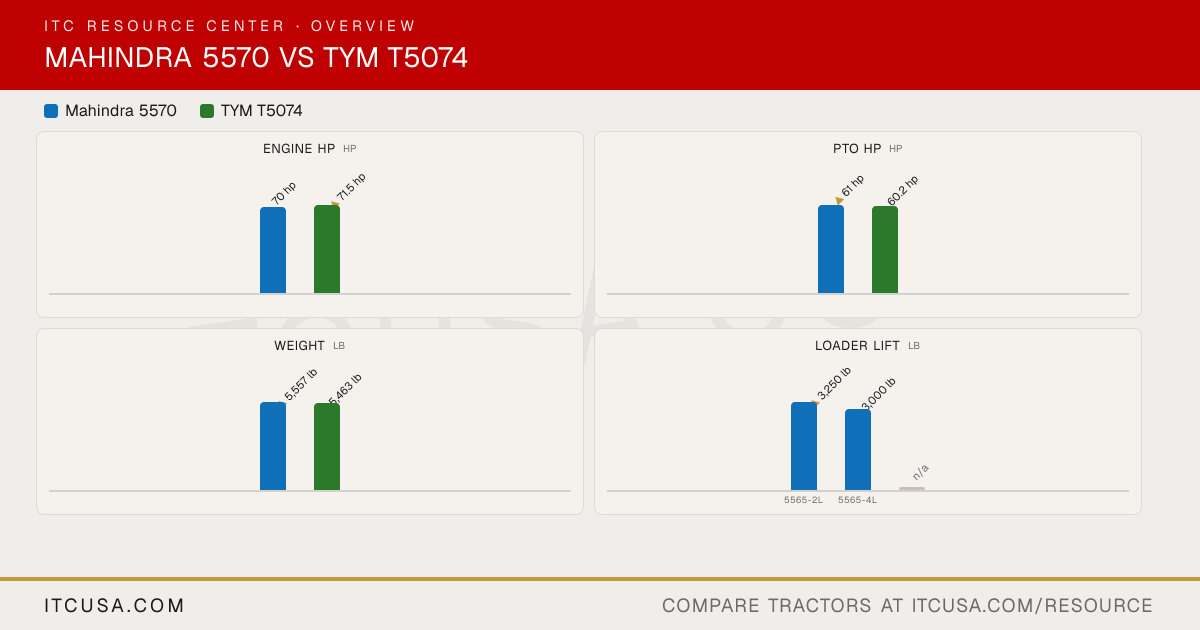

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Mahindra5570
TYMT5074
Engine Manufacturer
Mahindra
Yanmar
Engine Model
Not Published
4TN98CT-7PKTF
Engine Type
Four stroke, direct injection, turbo-charged and intercooled diesel
4-cylinder, water-cooled, turbocharged diesel
No. of Cylinders
3
4
Displacement
161.5 in³
202.5 in³
Rated Engine Speed
2100 rpm
2400 rpm
Engine Power (Gross)
70 hp
71.5 hp
PTO Power
61 hp
60.2 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Water-cooled
Air Cleaner
Not Published
PowerCore Type
Fuel System
Direct injection, turbocharged and intercooled (mCRD common rail)
CRDI
Alternator
55 A, 12 V
70 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
11.2 gpm
10.3 gpm
Steering Flow
4.6 gpm
5.8 gpm
Total Hydraulic Flow
15.8 gpm (11.2 + 4.6, computed)
16.1 gpm
Overall Hydraulic Pump Flow
Not Published
16.1 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
Not Published
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
17.1 gal
19 gal
Coolant Capacity
Not Published
3 gal
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
13.7 gal
Front Axle Fluid Capacity
Not Published
2.4 gal
PTO Type
Independent
Independent
PTO Rear
540 rpm @ 2059 rpm
540/750 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
CAT I and II with telescopic stabilizers
Category II
Hitch Lift Capacity
3968 lb
4329 lb
Hitch Lift Capacity (at 24”)
Not Published
3159 lb
Lift Control Type
Position and draft control
Position/Draft
Transmission Type
Constant mesh with forward/reverse synchro shuttle
Power shuttle
No. of Speeds
8F/8R
F12 x R12
Max Travel Speed (Forward)
Not Published
13.5 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Dual dry with cerametallic lining
Wet Multi Plate
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Not Published
Adjustable sliding seat with backrest angle and cushion firmness adjustment
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
138.3 in (5570 2WD); 145 in (5570 4WD)
148.1 in
Overall Width
77.3 in (5570 2WD); 81 in (5570 4WD)
81.4 in
Wheelbase
Not Published
84.6 in
Ground Clearance
Not Published
17.6 in
Min. Turn Radius without Brakes
14 ft (5570 2WD); 15.7 ft (5570 4WD)
164.2 in (left); 169.3 in (right)
Height to Top of ROPS
103.3 in (5570 2WD); 99.7 in (5570 4WD)
106.8 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
5557 lb (5570 2WD); 6302 lb (5570 4WD)
5463 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Ag (5570 2WD); Ag, Industrial (5570 4WD)
Not Published
R1 Agricultural - Front
9.5Lx15 (5570 2WD); 11.2x24 (5570 4WD)
11.2-24
R1 Agricultural - Rear
16.9x28 (5570 2WD); 16.9x30 (5570 4WD)
16.9-30
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
12.5/80x18 (5570 4WD)
15-19.5
R4 Industrial - Rear
16.9x24 (5570 4WD)
18.4-24
Quick Attach Loader System
Not Published
Not Published
Loader Model
5565-2L (5570 2WD); 5565-4L (5570 4WD)
L5074SL
Loader Lift Height
5565-2L: 123 in; 5565-4L: 128 in
Not Published
Loader Lift Capacity (Full Height)
5565-2L: 3,250 lb; 5565-4L: 3,000 lb
Not Published
Loader Breakout Force
5565-2L: 5,300 lb; 5565-4L: 4,825 lb
Not Published
Warranty Length & Coverage
5-year powertrain warranty
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
