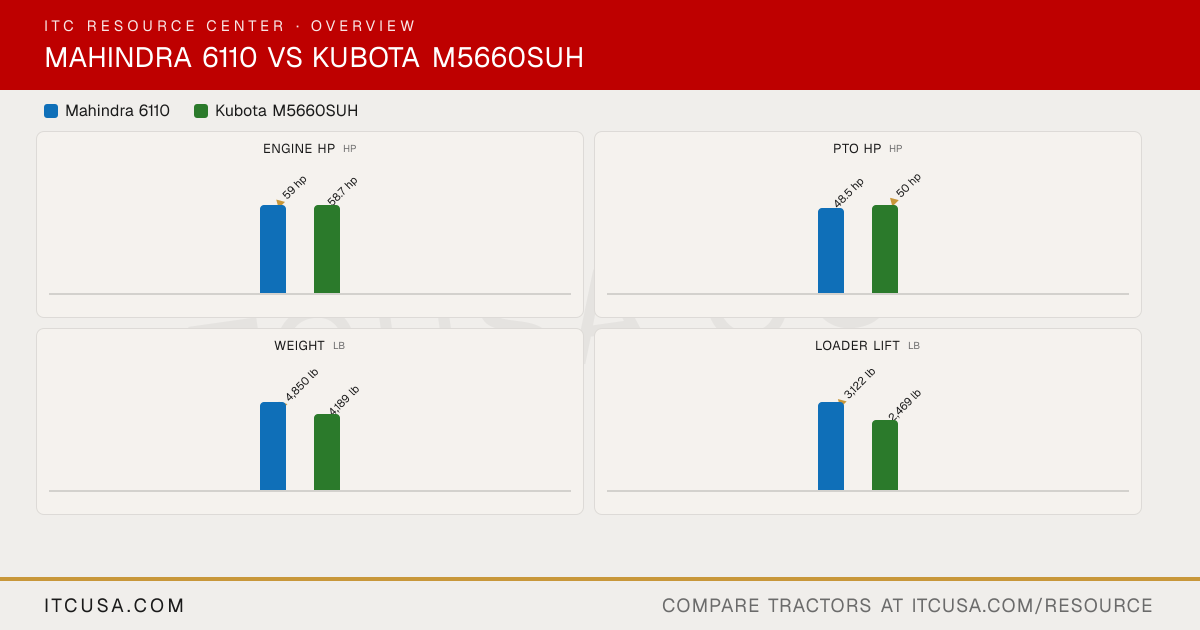

▶ EngineEngine Manufacturer Daedong Kubota Engine Model Not Published V2403-CR-TE4 Engine Type Turbo-charged, indirect injection 4-cylinder, turbocharged, common-rail diesel No. of Cylinders 4 4 Displacement 148.6 in³ 148.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 59 hp 58.7 hp PTO Power 48.5 hp 50 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid-cooled, pressurized radiator with recovery tank Air Cleaner Not Published Dry paper dual element, 8 in diameter, pre-cleaner standard Fuel System Not Published Common rail direct injection Alternator 50 A, 12 V 45 A ▶ HydraulicsPump Type Not Published Gear pump Implement Flow 11 gpm 10.6 gpm Steering Flow 5.4 gpm 6.1 gpm Total Hydraulic Flow Not Published 16.5 gpm Overall Hydraulic Pump Flow Not Published 16.5 gpm Hydraulic System Type Open Center with position and draft control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 1 (SCD) No. of Optional Remote Valves 3 2 optional (3 maximum) ▶ Fluid CapacityFuel Tank Capacity 18.5 gal 17.2 gal Coolant Capacity Not Published 8.5 qt Crankcase Capacity Not Published 7.6 qt Transmission / Hydraulic System Capacity Not Published 50.7 qt Front Axle Fluid Capacity Not Published No front axle oil, 2WD (M5660SUH); 6.9 qt front differential case plus 3.2 qt per bevel gear case (M5660SUHD) ▶ PTO & HitchPTO Type Independent Hydraulic, independent PTO, self-modulating multi-plate wet clutch with brake PTO Rear 540 rpm @ 2600 rpm 540 rpm (540/540E optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 2, with telescopic check chains Category I and II Hitch Lift Capacity 3,527 lb 4,189 lb Hitch Lift Capacity (at 24”) Not Published 3,307 lb Lift Control Type Position and draft control Position control ▶ Transmission & DrivetrainTransmission Type Sync, shuttle w/ part synchromesh Fully synchronized 4-speed main gear shift with hi-lo range and hydraulic shuttle, 8F/8R No. of Speeds 12F / 12R 8F/8R Max Travel Speed (Forward) 20.0 mph 18.2 mph Max Travel Speed (Reverse) 20.5 mph 18.6 mph Clutch Single plate, dry Multiple wet disc Differential Lock & Limited Slip Options Not Published Rear differential lock standard (mechanical) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic/Tiltable Hydrostatic power steering Brakes Wet Disc Mechanical wet disc Seat Suspension & Adjustability Not Published Fully adjustable suspension seat with retractable seat belt Front Axle Type Not Published M5660SUH: adjustable tubular-steel 2WD axle; M5660SUHD: cast-iron bevel-pinion drive, 55-degree turning angle, 4WD Front Axle Rating Not Published 4,410 lb at 55.9 in tread spacing (M5660SUH); 5,290 lb at 55.9 in tread spacing (M5660SUHD) Drawbar Capacity Not Published 3,300 lb (maximum tongue weight) ▶ Dimensions & ManeuverabilityOverall Width 71.5 in 72.8 in Wheelbase Not Published 82 in (M5660SUH); 80.7 in (M5660SUHD) Ground Clearance Not Published 16.3 in Min. Turn Radius without Brakes 12.5 ft 11.1 ft (M5660SUH); 12.8 ft (M5660SUHD) Height to Top of ROPS Not Published 95.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 99.2 in Not Published Overall Length 141.3 in 138.7 in (M5660SUH); 136 in (M5660SUHD) ▶ WeightTractor Weight (Base) 4,850 lb (operating weight) 4,189 lb (M5660SUH); 4,387 lb (M5660SUHD) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published 2WD: 6.50-16, 7.5-16, 9.5L-15 fronts with 14.9-28 or 16.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1 and LSW; 4WD: 9.5-22 or 280/85R20 fronts with 14.9-28 R1 rears; R3 29x12.50-15 / 21.5L-16.1; R4 12.5/80-18 / 16.9-24 R1 Agricultural - Front 9.5x20 9.5L-15 (M5660SUH); 9.5-22 (M5660SUHD) R1 Agricultural - Rear 14.9x28 14.9-28 R3 Turf - Front LSW305-521 29x12.50-15 R3 Turf - Rear LSW570-648 21.5L-16.1 R4 Industrial - Front 10.5/80x18 12.5/80-18 (M5660SUHD) R4 Industrial - Rear 18.4x24 16.9-24 (M5660SUHD) ▶ Loader & AttachmentsQuick Attach Loader System Not Published LA1154SU: 2-lever quick attach coupler standard Loader Model ML161 LA1154SU Loader Lift Height ML161: 115.4 in LA1154SU: 130.9 in (height position); 115.7 in (power position) Loader Lift Capacity (Full Height) ML161: 3,122 lb (at pivot pin) LA1154SU: 2,469 lb (height position); 2,928 lb (power position) Loader Breakout Force ML161: 5,225 lb (at pivot pin) LA1154SU: 4,230 lbf (height position); 5,354 lbf (power position) ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours, all usage
