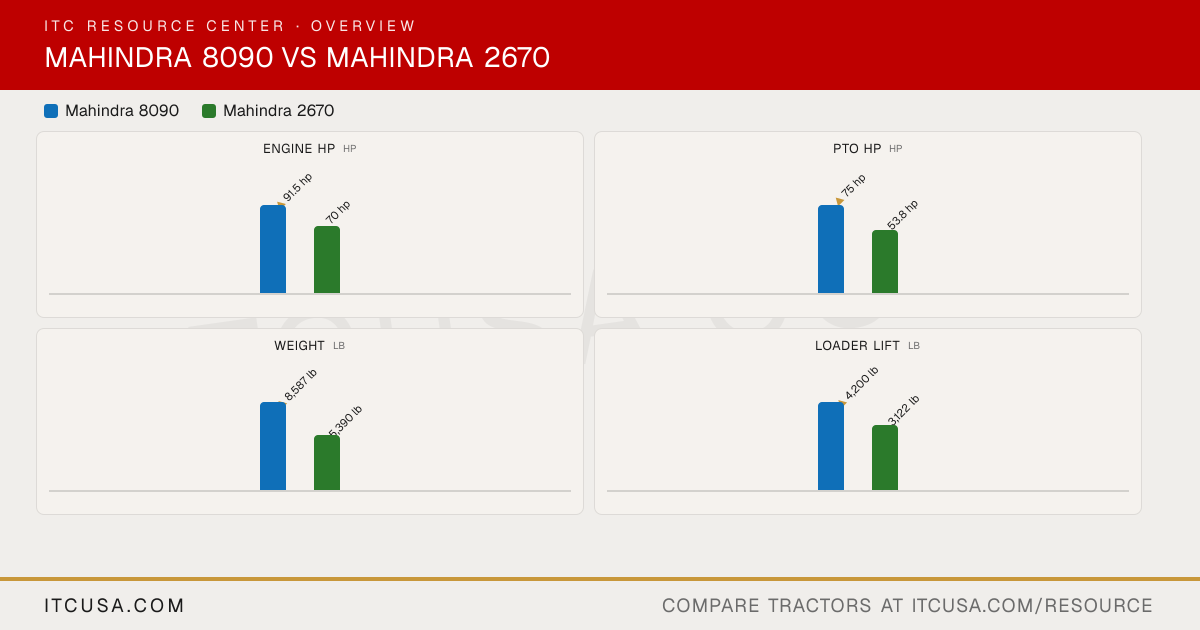

▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model Not Published Not Published Engine Type Four-stroke, turbocharged, direct injection, water-cooled diesel Turbocharged, direct injection, liquid-cooled diesel No. of Cylinders 4 3 Displacement 215.4 in³ 161.7 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 91.5 hp 70 hp PTO Power 75 hp 53.8 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Water cooled Air Cleaner Not Published Not Published Fuel System Common rail direct injection Direct injection Alternator 140 A 90 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 17 gpm 11.8 gpm Steering Flow 5.2 gpm Not Published Total Hydraulic Flow 22.2 gpm 16.7 gpm Overall Hydraulic Pump Flow 22.2 gpm 16.7 gpm Hydraulic System Type Open center with position and draft control Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves 3rd valve optional Not Published ▶ Fluid CapacityFuel Tank Capacity 25.9 gal Not Published Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type 2-speed independent single lever PTO Independent PTO Rear 540/1000 rpm 540 rpm @ 2300 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT II with telescoping stabilizers & flex links CAT II with telescoping stabilizers & flex links Hitch Lift Capacity 5,500 lb 3,528 lb Hitch Lift Capacity (at 24”) Not Published Not Published Lift Control Type Position and draft control Position and draft control ▶ Transmission & DrivetrainTransmission Type Full synchro mesh with forward/reverse power shuttle and constant-mesh range Power Shuttle No. of Speeds 12F / 12R 12F / 12R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Power shuttle with torsional damper (wet) Dry single plate Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Steel frame Not Published Steering Power steering Hydraulic, tiltable Brakes Oil-immersed brakes, 7-in disc, mechanically actuated Wet disc brakes Seat Suspension & Adjustability Seat with integrated folding armrests, recline, and air-suspension standard Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 83 in 71.5 in Wheelbase 95.6 in 83 in Ground Clearance 14.1 in 15.7 in Min. Turn Radius without Brakes 15.5 ft Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 111.2 in 102 in Overall Length 176.6 in 144.4 in ▶ WeightTractor Weight (Base) 8,587 lb 5,390 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Agricultural, Industrial, Turf R1 Agricultural - Front 12.4 x 24 9.5 x 20 R1 Agricultural - Rear 18.4 x 30 14.9 x 28 R3 Turf - Front Not Published LSW305-521 R3 Turf - Rear Not Published LSW570-648 R4 Industrial - Front Not Published 10.5/80 x 18 R4 Industrial - Rear Not Published 18.4 x 24 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer style quick attach Not Published Loader Model 8100CL 2670CL Loader Lift Height 8100CL: 139 in 2670CL: 115.4 in Loader Lift Capacity (Full Height) 8100CL: 4,200 lb (at pivot pin) 2670CL: 3,122 lb (at pivot pin) Loader Breakout Force 8100CL: 6,050 lb 2670CL: 5,225 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
