Mahindra Max 26XLT vs Kubota LX2610 | Side-by-side comparison | ITC Resource Center
Compare Tractors

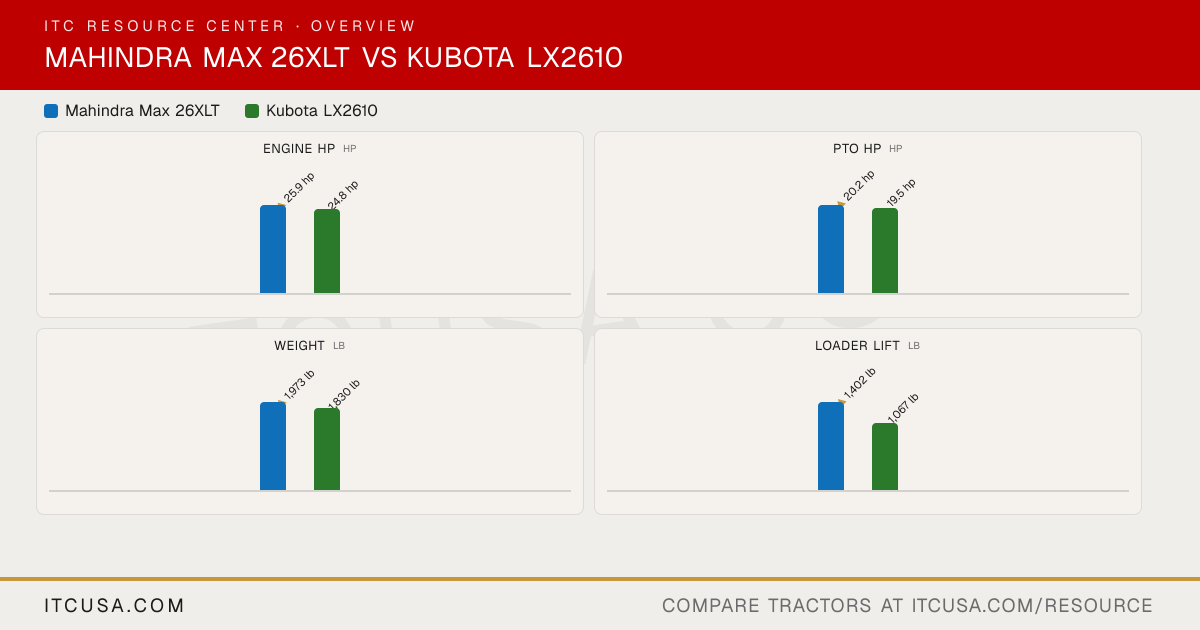

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
MahindraMax 26XLT
KubotaLX2610
Engine Manufacturer
Mitsubishi
Kubota
Engine Model
S3L2
D1305-E4-D36-R
Engine Type
Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
E-TVCS, liquid cooled, 3-cylinder, diesel
No. of Cylinders
3
3
Displacement
80.4 in³
77 in³
Rated Engine Speed
2500 rpm
2500 rpm
Engine Power (Gross)
25.9 hp
24.8 hp
PTO Power
20.2 hp
19.5 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Water Cooled
Pressurized radiator
Air Cleaner
Not Published
4.5 in Dual paper element
Fuel System
Indirect Injection
Indirect injection
Alternator
50 A, 12 V
40 A, 12 V
Pump Type
Not Published
Dual pump
Implement Flow
5.8 gpm
5.0 gpm
Steering Flow
2.7 gpm
3.7 gpm
Total Hydraulic Flow
8.5 gpm
8.7 gpm
Overall Hydraulic Pump Flow
8.5 gpm
8.7 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
Not Published
Optional, up to 2
Fuel Tank Capacity
6.1 gal
7.1 gal
Coolant Capacity
Not Published
4.5 qt
Crankcase Capacity
Not Published
4.2 qt
Transmission / Hydraulic System Capacity
Not Published
4.0 gal
Front Axle Fluid Capacity
Not Published
5.0 qt
PTO Type
Live
Independent
PTO Rear
540 @ 2376 rpm
540 rpm
Mid-PTO Availability
Optional; 2000 @ 2526 rpm
2500 rpm
Category, 3-Point Hitch
CAT I
Category I
Hitch Lift Capacity
2315 lb
2139 lb
Hitch Lift Capacity (at 24”)
Not Published
1676 lb
Lift Control Type
Position Control
Position control valve
Transmission Type
HST - 2 ranges
Hydrostatic transmission
No. of Speeds
Infinite
3 ranges
Max Travel Speed (Forward)
10.4 mph
11.2 mph
Max Travel Speed (Reverse)
Not Published
8.4 mph
Clutch
Dry - Single
Not Published
Differential Lock & Limited Slip Options
Not Published
Differential lock standard
Frame Type
Not Published
Not Published
Steering
Power Steering
Hydraulic power steering
Brakes
Wet disc
Multi-plate wet disc
Seat Suspension & Adjustability
Not Published
Deluxe high-back suspension seat
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1100 lb
Overall Length with 3-Point Hitch
110 in
101.8 in (without 3-point hitch)
Overall Width
54.3 in
53.7 in
Wheelbase
63.2 in
65.6 in
Ground Clearance
11.4 in
14.6 in
Min. Turn Radius without Brakes
7.2 ft
6.9 ft (with brake applied)
Height to Top of ROPS
84.3 in
88.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
84.6 in
Tractor Weight (Base)
1973 lb
1830 lb
Weight with ROPS and Loader
2600 lb
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural, R4 Industrial, R14
R1 Agricultural - Front
7-12
7.0-12
R1 Agricultural - Rear
9.5-16
12.4-16
R3 Turf - Front
23x8.5-12
24x8.50-14
R3 Turf - Rear
33x12.5-15
13.6-16
R4 Industrial - Front
23x8.50-12
23X8.50-14 / 25X8.50-14
R4 Industrial - Rear
12-16.5
12.4-16 / 15-19.5
Quick Attach Loader System
Quick-Attach Adapter (included)
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
MXLT26L
LA535
Loader Lift Height
MXLT26L: 82.7 in
84 in
Loader Lift Capacity (Full Height)
MXLT26L: 1402 lb (at pivot pin)
1067 lb
Loader Breakout Force
MXLT26L: 2690 lb (at pivot pin)
2245 lb
Warranty Length & Coverage
Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
