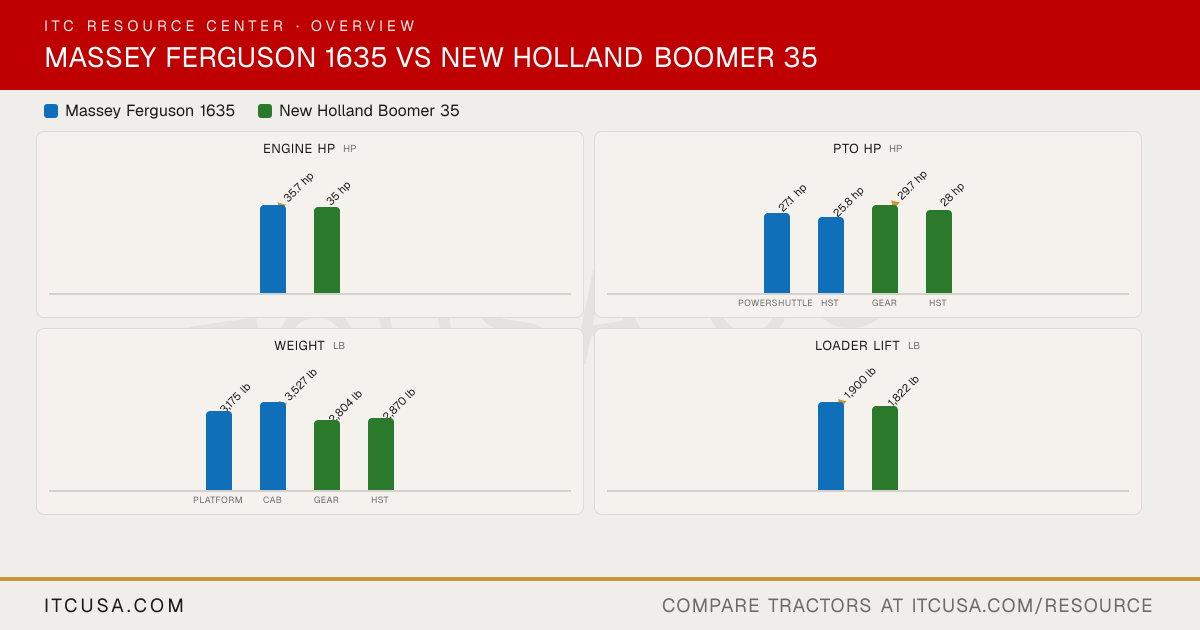

▶ EngineEngine Manufacturer Not Published LS Mtron Engine Model Not Published L3CRV-T5 Engine Type 3-cylinder, naturally aspirated, indirect injection, liquid-cooled diesel 3-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 3 3 Displacement 100.5 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 35.7 hp 35 hp PTO Power PowerShuttle: 27.1 hp; HST: 25.8 hp Gear: 29.7 hp; HST: 28 hp Engine Emissions Constraints Tier 4i Tier 4B (final) Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Not Published Replaceable primary and inner elements Fuel System Indirect injection Electronically controlled common rail direct injection Alternator Not Published 70 A, 12 V ▶ HydraulicsPump Type Not Published Gear Implement Flow 11.6 gpm 8.2 gpm Steering Flow HST: 4.9 gpm; PowerShuttle: 6 gpm Gear: 4.2 gpm; HST: 5.3 gpm Total Hydraulic Flow HST: 16.5 gpm; PowerShuttle: 17.6 gpm Gear: 12.4 gpm; HST: 13.5 gpm Overall Hydraulic Pump Flow Not Published Gear: 12.4 gpm; HST: 13.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 11.6 gpm Not Published No. of Standard Remote Valves 1 1 No. of Optional Remote Valves 3 spool optional Up to 2 (second valve optional) ▶ Fluid CapacityFuel Tank Capacity Platform: 9.2 gal; Cab: 10.5 gal 10.5 gal Coolant Capacity Not Published 7.5 qt Crankcase Capacity Not Published 5.8 qt Transmission / Hydraulic System Capacity Not Published 8.5 gal Front Axle Fluid Capacity Not Published 6.87 qt ▶ PTO & HitchPTO Type Independent, electro-hydraulic push-button control Independent, electro-hydraulic engagement PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2000 rpm Standard (2000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,800 lb 1,808 lb Hitch Lift Capacity (at 24”) Not Published 1,345 lb Lift Control Type Position control with rate of drop control Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type 12x12 PowerShuttle or 3-range hydrostatic with cruise control Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal No. of Speeds Not Published Gear: 12F/12R; HST: 3-range Max Travel Speed (Forward) Not Published Gear: 14.2 mph; HST: 14.8 mph Max Travel Speed (Reverse) Not Published Gear: 13.63 mph; HST: 13.60 mph Clutch Not Published Gear: dry single disc (9.4 in); HST: n/a Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Flat isolated platform, folding ROPS, one-piece flip-up hood Not Published Steering Not Published Power steering Brakes Wet disc Wet multi-disc Seat Suspension & Adjustability Suspended seat with retractable seat belt Adjustable suspension seat (fore/aft, weight and height adjustment) Front Axle Type Not Published Four-wheel drive (FWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 64.5 in 66.4 in Wheelbase 69.7 in 66 in Ground Clearance 14.2 in Not Published Min. Turn Radius without Brakes Not Published 9.2 ft (with brake applied) Height to Top of ROPS 100.0 in 92.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 122.0 in 119 in ▶ WeightTractor Weight (Base) Platform: 3,175 lb; Cab: 3,527 lb (shipping weight) Gear: 2,804 lb; HST: 2,870 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear) R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published 7-14 R1 Agricultural - Rear 12.4-24 (13.6-24 optional) 11.2-24 R3 Turf - Front 27x8.50-15 (LSW305 R343 optional) 25x8.50-14 R3 Turf - Rear 41x14.00-20 (LSW610 R470 optional) 41x14.00-20 R4 Industrial - Front 10-16.5 or 25x8.5-14 25x8.50-14 R4 Industrial - Rear 14.9-24 or 15x19.5 43x16.00-20 ▶ Loader & AttachmentsQuick Attach Loader System DL120: pin type or skid steer type quick attach, pedestal mount Tool-free loader mount; optional skid-steer quick-attach plates Loader Model DL120 250TLA Loader Lift Height DL120: 102 in (at pivot pin) 250TLA: 104 in (at pivot pin) Loader Lift Capacity (Full Height) DL120: 1,900 lb (to full height, at pivot pin) 250TLA: 1,822 lb (at bucket pivot pin, max height) Loader Breakout Force Not Published 250TLA: 3,257 lb (at bucket pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 3 years or 2,000 hours Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)
