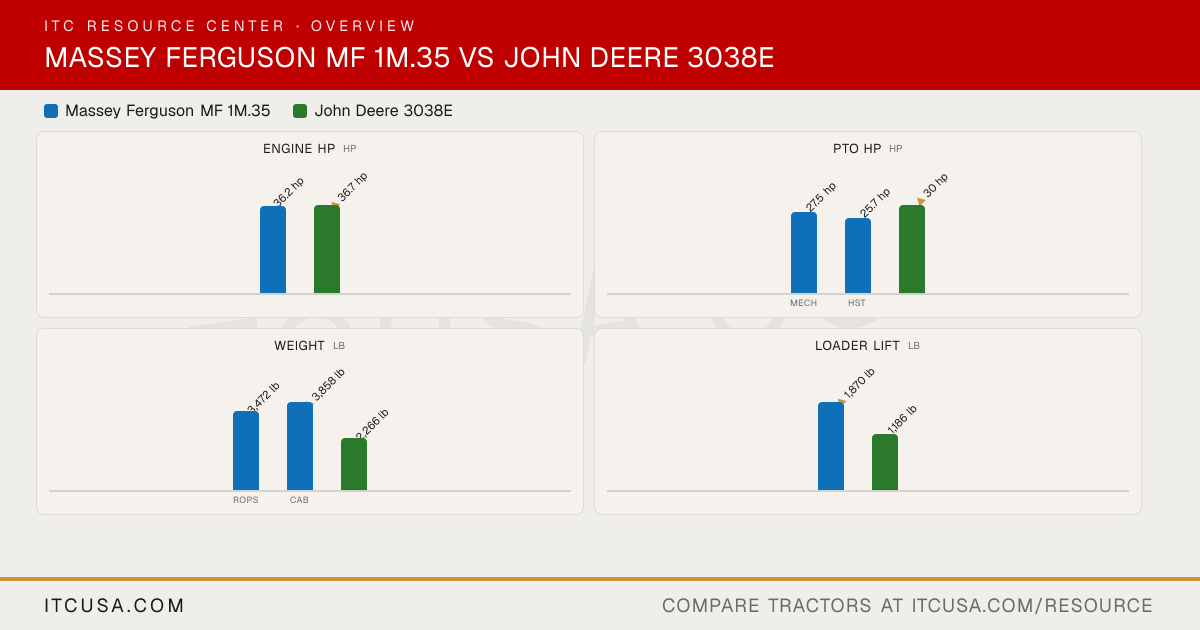

▶ EngineEngine Manufacturer Iseki Yanmar Engine Model Not Published 3TNV86CT-NJT2 Engine Type 3-cylinder, turbocharged, liquid-cooled diesel Diesel No. of Cylinders 3 3 Displacement 111.4 in³ 95.7 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 36.2 hp 36.7 hp PTO Power Mech: 27.5 hp; HST: 25.7 hp 30 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid cooled Water pump Air Cleaner Not Published Dry type with safety element Fuel System Not Published Not Published Alternator Not Published 55 A, 12 V ▶ HydraulicsPump Type Two gear-type pumps Tandem gear pump; hydrostatic pump: PV axial-piston pump Implement Flow 12.6 gpm 5.3 gpm Steering Flow 7.0 gpm 4.0 gpm Total Hydraulic Flow 19.6 gpm (12.6 + 7.0, computed) 9.3 gpm Overall Hydraulic Pump Flow 19.6 gpm (12.6 + 7.0, computed) 9.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Up to 2 (optional) ▶ Fluid CapacityFuel Tank Capacity 10.6 gal 7.5 gal Coolant Capacity Not Published 5.5 qt Crankcase Capacity Not Published 4.5 qt Transmission / Hydraulic System Capacity Not Published 22 qt Front Axle Fluid Capacity Not Published 4 qt ▶ PTO & HitchPTO Type Independent with SoftStart electronic modulation Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not available Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,800 lb Not Published Hitch Lift Capacity (at 24”) 2,535 lb 1,356 lb Lift Control Type Not Published Position control ▶ Transmission & DrivetrainTransmission Type Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled) Hydrostatic transmission (HST) No. of Speeds Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range) Not Published Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Not Published Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published 1,760 lb Drawbar Capacity Not Published 880 lb (maximum vertical load) ▶ Dimensions & ManeuverabilityOverall Width 67.5 in 56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires) Wheelbase Not Published 62.8 in Ground Clearance 14.4 in 12.7 in (R4 tires) Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 99.2 in 95.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 91.3 in Not Published Overall Length 122.0 in 115.9 in (with 3-point hitch) ▶ WeightTractor Weight (Base) ROPS: 3,472 lb; Cab: 3,858 lb 2,222 lb Weight with ROPS and Loader Not Published 2,972 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published 7-14 R1 Agricultural - Rear Not Published 11.2-24 R3 Turf - Front Not Published 27X8.50-15 R3 Turf - Rear Not Published 41X14-20 R4 Industrial - Front Not Published 25X8.50-14 or 27X8.50-15 R4 Industrial - Rear Not Published 15.00-19.5 or 43X16-20 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer Quick-change attachment carrier Loader Model FL2611 300E Loader Lift Height FL2611: 100 in (at pivot pin) 84 in (at pivot pin) Loader Lift Capacity (Full Height) FL2611: 1,870 lb (at pivot pin) 1,186 lb (at pivot pin) Loader Breakout Force FL2611: 2,950 lb (at pivot pin) 1,704 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
