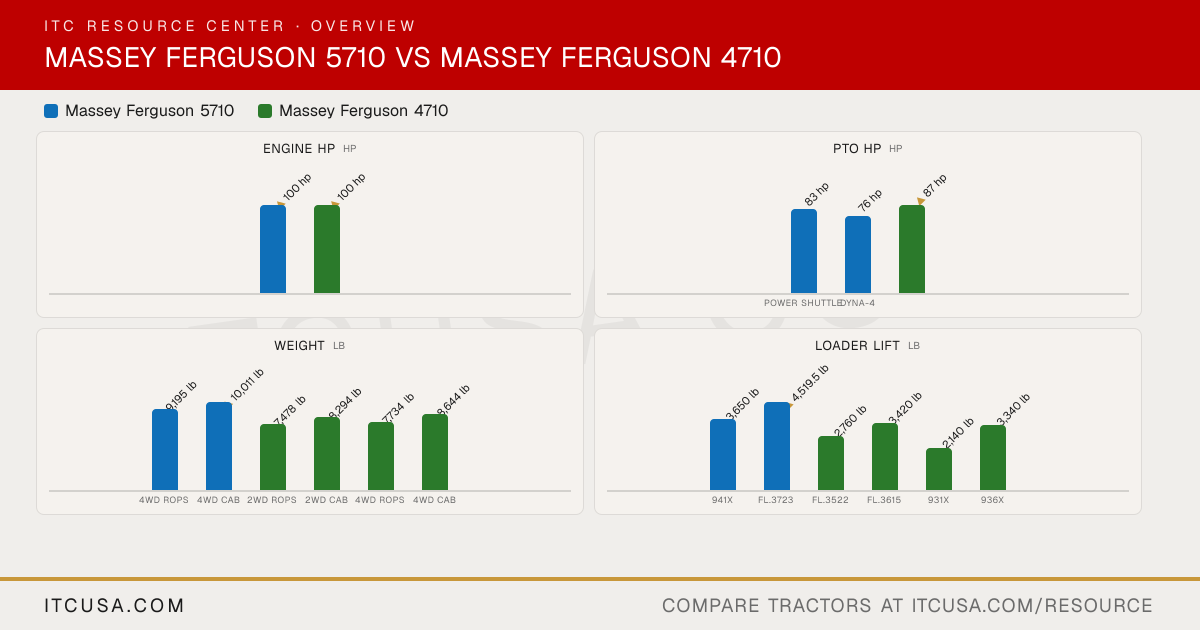

▶ EngineEngine Manufacturer AGCO Power AGCO Power Engine Model Not Published Not Published Engine Type 4-cylinder, intercooled turbocharged, liquid-cooled diesel 3-cylinder, intercooled turbocharged diesel No. of Cylinders 4 3 Displacement 268.5 in³ 201 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 100 hp 100 hp PTO Power Power Shuttle: 83 hp; Dyna-4: 76 hp 87 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled Liquid cooled Air Cleaner Not Published Dual element (primary and secondary) Fuel System High-pressure common-rail direct injection (HPCR) High-pressure common rail direct fuel injection Alternator 120 A, 12 V 80 A ▶ HydraulicsPump Type Two high-pressure gear pumps Two-stage pump Implement Flow 15.1 gpm Not Published Steering Flow Not Published Not Published Total Hydraulic Flow 25.9 gpm Not Published Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 26 gpm 17.2 gpm No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 1 1 ▶ Fluid CapacityFuel Tank Capacity 38.3 gal 33 gal Coolant Capacity Not Published 4.2 gal Crankcase Capacity Not Published 3.3 gal Transmission / Hydraulic System Capacity Not Published Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal Front Axle Fluid Capacity Not Published Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement via switch Independent, electrohydraulic engagement PTO Rear 540 / 540E / 1000 rpm 540/540E standard; 540/1000 optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 7,710 lb 4,850 lb Lift Control Type Electronic linkage control (ELC) Not Published ▶ Transmission & DrivetrainTransmission Type Power Shuttle: 12F x 12R, 2-range with electrohydraulic shuttle lever; Dyna-4: 16F x 16R powershift 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift No. of Speeds Power Shuttle: 12 forward, 12 reverse; Dyna-4: 16 forward, 16 reverse 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 Max Travel Speed (Forward) 25 mph 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Single-plate wet clutch with easy shift knob and electrohydraulic power shuttle lever Multidisc wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Rear differential lock engaged via electrohydraulic rocker switch; Hydra-Lock hydraulic front axle differential lock on 4WD Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch; 4WD front axle Hydra-Lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering; cab: tilt and telescopic column, platform: tilt column Cab: tilt and telescopic steering column; Platform: tilt steering column Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Cab: air-ride swivel seat; platform: mechanical spring suspension seat with armrests Cab: mechanical swiveling seat with armrests, air-ride swivel seat optional; Platform: mechanical spring suspension seat with armrests Front Axle Type Heavy-duty 4WD front axle: cast steel, fixed, center drive line, planetary final drives Heavy-duty 2WD or 4WD front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published Not Published Overall Width 64.8 in 60.3 in (minimum, with std. 420/85R30 rear tires) Wheelbase 95.7 in 88.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 4WD ROPS: 9,195 lb; 4WD Cab: 10,011 lb 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 460/85R34 standard radial 2WD: 9.5L-15 front, 420/85R34 rear; 4WD: 340/85R24 front, 420/85R34 rear R1 Agricultural - Front Not Published 2WD: 9.5L-15; 4WD: 340/85R24 R1 Agricultural - Rear Not Published 420/85R34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published 931X and 936X: universal skid steer type quick release Loader Model 941X; 946X; FL.3723; FL.3819 FL.3522, FL.3615, 931X, 936X Loader Lift Height 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) Loader Lift Capacity (Full Height) 941X: 3,650 lb; FL.3723: 4,519.5 lb FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) Loader Breakout Force FL.3723: 5,818.6 lb; FL.3819: 4,892.9 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
