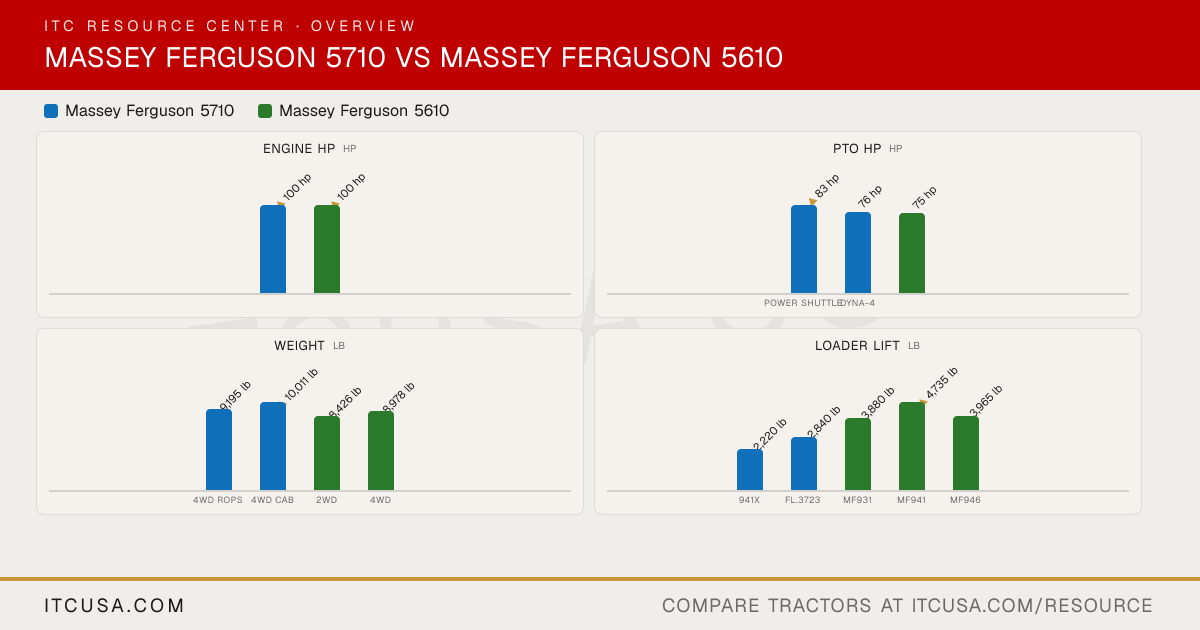

▶ EngineEngine Manufacturer AGCO Power AGCO Power Engine Model 44 AWFC 33 AWI HD Engine Type 4-cylinder, intercooled turbocharged, liquid-cooled diesel 3-cylinder turbocharged and intercooled diesel No. of Cylinders 4 3 Displacement 268.5 in³ 201 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 100 hp 100 hp PTO Power Power Shuttle: 83 hp; Dyna-4: 76 hp 75 hp Engine Emissions Constraints Tier 4 Tier 4i Cooling System Type Liquid cooled Water-cooled Air Cleaner Not Published 2-stage dry Fuel System High-pressure common-rail direct injection (HPCR) Common rail direct injection Alternator 80 A, 12 V 120 A ▶ HydraulicsPump Type Two high-pressure gear pumps Single gear pump; tandem gear pumps optional Implement Flow 15.1 gpm 15 gpm standard; 26 gpm with optional Twin Flow Steering Flow Not Published Not Published Total Hydraulic Flow 26 gpm 26 gpm (tandem pumps: 15 gpm to the 3-point hitch plus 11 gpm to remotes, combinable) Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 26 gpm 15 gpm standard; 26 gpm with optional Twin Flow No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 1 Up to 4 ▶ Fluid CapacityFuel Tank Capacity 38.3 gal 42 gal Coolant Capacity Not Published 15.3 qt Crankcase Capacity Not Published 13.7 qt Transmission / Hydraulic System Capacity Not Published 17.2 gal Front Axle Fluid Capacity Not Published 5.3 qt axle beam; 0.85 qt each final drive ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement via switch Independent, electro-hydraulic engagement and speed selection PTO Rear 540 / 540E / 1000 rpm 540/540E standard; 540/540E/1000 optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published 9,480 lb Hitch Lift Capacity (at 24”) 7,710 lb 7,100 lb Lift Control Type Cab: electric controlled 3-point linkage with draft control; Platform: lever controlled 3-point linkage with draft control Electronically operated, lower-link draft sensing ▶ Transmission & DrivetrainTransmission Type Power Shuttle: 12F x 12R, 2 ranges, electro-hydraulic shuttle; Dyna-4: 16F x 16R powershift Dyna-4 16x16 power shift and power shuttle (AUTO-DRIVE optional, 14:1 creeper optional) No. of Speeds Power Shuttle: 12 forward, 12 reverse; Dyna-4: 16 forward, 16 reverse 16F / 16R Max Travel Speed (Forward) 25 mph 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch with easy shift knob and electrohydraulic power shuttle lever Wet multi-disc, foot pedal and electronic control Differential Lock & Limited Slip Options Electro-hydraulic rear differential lock (rocker switch); hydraulic front differential lock on 4WD Fully locking front and rear axle differentials, electro-hydraulically engaged ▶ Chassis, Steering & ControlsFrame Type Not Published Rigid structural chassis; solid cast-steel flanged rear axle, internal planetary reduction Steering Cab: tilt and telescopic steering column; Platform: tilt steering column Hydrostatic power steering Brakes Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Internal wet disc, hydraulic power assist, individual left and right foot pedals Seat Suspension & Adjustability Cab: air-suspension swivel seat; platform: mechanical spring-suspension seat with armrests Mechanical suspended swivel seat, standard; manual or automatic air-suspension, optional Front Axle Type Heavy-duty 4WD front axle, center driveline Adjustable 2WD, or fixed cast-steel 4WD (single-piece), outboard planetary final drives Front Axle Rating Not Published 2WD: 6,085 lb; 4WD: 10,500 lb Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 64.8 in 79.3 in Wheelbase 95.7 in 97.1 in Ground Clearance Not Published 17.6 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 111.3 in (16.9R38 rear tires) Overall Length Not Published 167.5 in ▶ WeightTractor Weight (Base) 4WD ROPS: 9,195 lb; 4WD Cab: 10,011 lb 2WD: 8,426 lb; 4WD: 8,978 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 460/85R34 standard radial R1 radial agricultural tires only; 16.9R38 rear is the speed chart basis (16.9R34, 16.9R30, 18.4R30, 18.4R34, 13.6R38 listed) R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published 16.9R38 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published MF931, MF941, MF946: quick attachment, single lever locking system Loader Model 941X; 946X; FL.3723; FL.3819 MF931, MF941, MF946 Loader Lift Height 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in MF931: 138 in; MF941: 148 in; MF946: 148 in (at pivot pins) Loader Lift Capacity (Full Height) 941X: 2,220 lb; FL.3723: 2,840 lb (to full height, at 31.5 in forward of pivot pin) MF931: 3,880 lb; MF941: 4,735 lb; MF946: 3,965 lb (at pivot) Loader Breakout Force FL.3723: 5,819 lb; FL.3819: 4,893 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published 2-year/2,000-hour full coverage, all parts and labor
