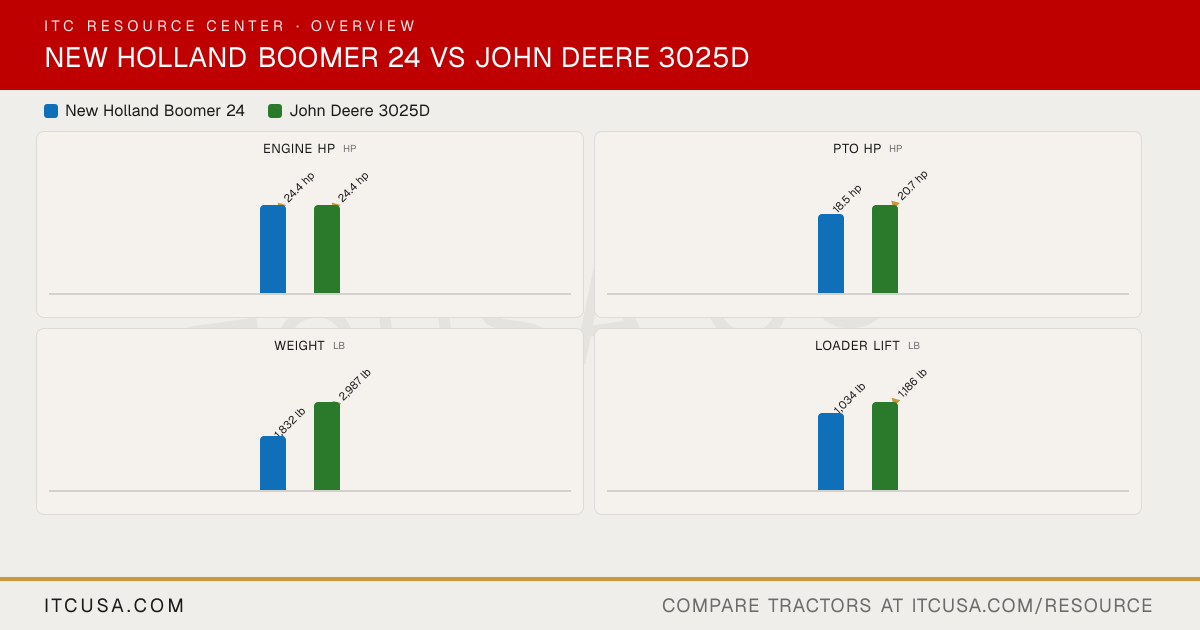

▶ EngineEngine Manufacturer Mitsubishi Yanmar Engine Model S3L2 3TNV88F-EPJT Engine Type 3-cylinder diesel 4-cycle, inline, water-cooled diesel, naturally aspirated No. of Cylinders 3 3 Displacement 80.4 in³ 100.1 in³ Rated Engine Speed 2700 rpm 2400 rpm Engine Power (Gross) 24.4 hp 24.4 hp PTO Power 18.5 hp 20.7 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid Air Cleaner Single replaceable dry element Dual element Fuel System Not Published Direct injection Alternator 50 A 55 A, 12 V ▶ HydraulicsPump Type Not Published Two single-section external gear pumps, one each side of engine timing-gear cover Implement Flow 6.7 gpm 4.8 gpm Steering Flow 2.9 gpm 3.6 gpm Total Hydraulic Flow 9.6 gpm (6.7 + 2.9, computed) Not Published Overall Hydraulic Pump Flow 9.6 gpm (6.7 + 2.9, computed) 8.9 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 (DIA, optional) Up to two (optional) ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 10.0 gal Coolant Capacity Not Published 1.2 gal Crankcase Capacity Not Published 1.1 gal Transmission / Hydraulic System Capacity Not Published 9.2 gal Front Axle Fluid Capacity Not Published 1.0 gal ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement Not Published PTO Rear 540 rpm 540 rpm at 2400 rpm engine (rated) Mid-PTO Availability Standard, 2000 rpm Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,433 lb Not Published Hitch Lift Capacity (at 24”) 1,058 lb 2,081.2 lb @ 24 in behind link arms Lift Control Type Chain-type stabilizers, fixed link ends Position control ▶ Transmission & DrivetrainTransmission Type 2-range hydrostatic (HST), dual pedal 8F/8R synchromesh shuttle shift gear transmission No. of Speeds HST, 2 ranges 8F/8R Max Travel Speed (Forward) 11.3 mph (HST, R4 tires) 11.1 mph Max Travel Speed (Reverse) Not Published 11.6 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock (foot pedal) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Mechanical wet multi-disc Not Published Seat Suspension & Adjustability Not Published Not Published Front Axle Type Four-wheel drive (standard) MFWD (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1102 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 103.6 in 111.2 in Overall Width 49.1 in 57.3 in Wheelbase 59 in 62.6 in Ground Clearance Not Published 13.0 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brakes) (with brake applied) Height to Top of ROPS 85.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1,832 lb 2987 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R3 turf tread or R4 industrial tread R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published 7-14 R1 Agricultural - Rear Not Published 11.2-24 R3 Turf - Front 23x8.50-12 27X8.50-15 R3 Turf - Rear 33x12-16.5 41X14-20 R4 Industrial - Front 23x8.50-12 25X8.50-14 R4 Industrial - Rear 12-16.5 15.00-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quick-change attachment carrier Loader Model 235TL D160 Loader Lift Height 235TL: 80.7 in 84.0 in Loader Lift Capacity (Full Height) 235TL: 1,034 lb 1,186 lb Loader Breakout Force 235TL: 1,672 lb 1,704 lb ▶ WarrantyWarranty Length & Coverage Boomer Guard 5 Limited Warranty: 5 years (2 years bumper-to-bumper plus 3 years powertrain) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
