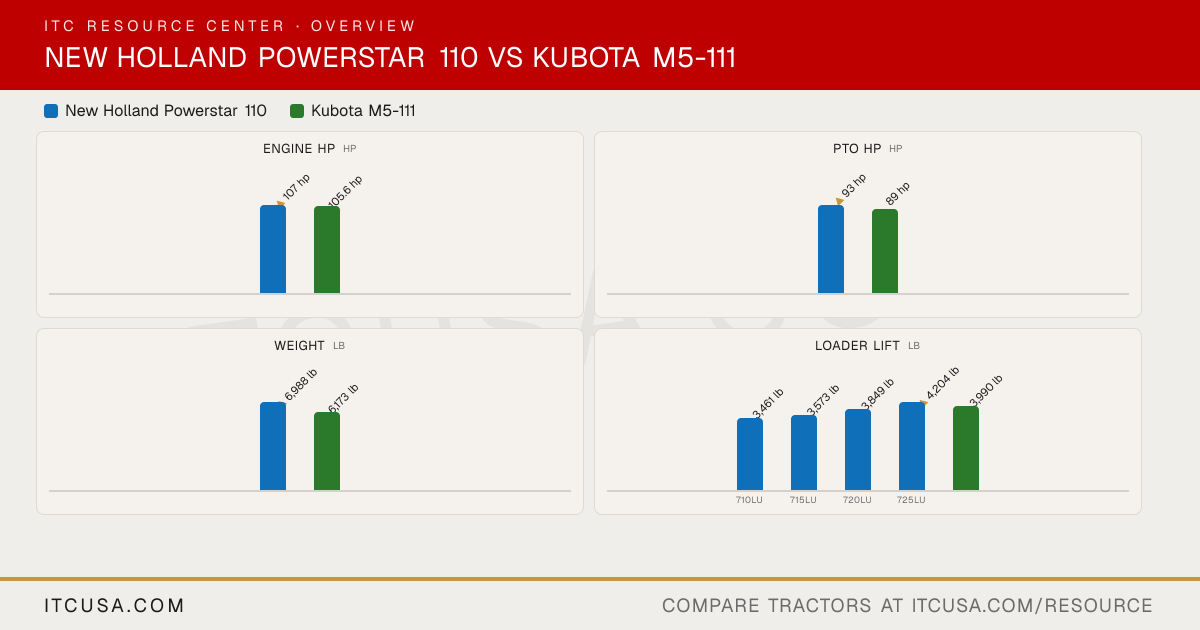

▶ EngineEngine Manufacturer FPT Industrial Kubota Engine Model F5G V3800CR-TIEF4 Engine Type 4-cylinder diesel, turbocharged and aftercooled 4-cylinder in-line, common rail direct injection, turbocharged with intercooler, DPF, DOC and SCR diesel No. of Cylinders 4 4 Displacement 207 in³ 230 in³ Rated Engine Speed 2300 rpm 2400 rpm Engine Power (Gross) 107 hp 105.6 hp PTO Power 93 hp 89 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Dry paper, dual element, 8 in diameter, with pre-cleaner Fuel System Electronic high-pressure common rail fuel injection Common rail direct injection Alternator ROPS: 120 A; Cab: 150 A 60 A, 12 V ▶ HydraulicsPump Type Open-center; dual pumps (implement pump plus dedicated steering pump) Gear pump Implement Flow 16.9 gpm 15.9 gpm Steering Flow 9.7 gpm 5.4 gpm Total Hydraulic Flow 26.6 gpm 21.3 gpm Overall Hydraulic Pump Flow 26.6 gpm 21.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 15.9 gpm No. of Standard Remote Valves 2 rear remotes (open center with detent) 1 standard (3 maximum) No. of Optional Remote Valves 1 (third rear remote, DIA kit) 2 optional (3 maximum) ▶ Fluid CapacityFuel Tank Capacity 30.3 gal 27.7 gal Coolant Capacity Not Published 11 qt Crankcase Capacity Not Published 11.3 qt Transmission / Hydraulic System Capacity Not Published 15.9 gal Front Axle Fluid Capacity Not Published 6.3 qt (differential) plus 3.7 qt (each bevel gear case) ▶ PTO & HitchPTO Type Fully independent hydraulic PTO Live-independent PTO, electro-hydraulic clutch with brake PTO Rear 540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional) 540 rpm (540/540E on 12-speed models) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published 7055 lb (8860 lb optional) Hitch Lift Capacity (at 24”) 5,620 lb 5181 lb (8-speed); 7275 lb (12- and 24-speed) Lift Control Type Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) Position, draft (top link sensing) and mixed control ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) Fully synchronized main gear shift with electro-hydraulic shuttle (Hi-Lo dual speed on HDC24) No. of Speeds 12F/12R (standard); 20F/20R with creeper (optional) 8 forward, 8 reverse (8-speed models); 12 forward, 12 reverse (12-speed models); 24 forward, 24 reverse (HDC24) Max Travel Speed (Forward) 27 mph (4WD front axle); 20 mph (2WD front axle) 18.6 mph (8-speed); 23.6 mph (12-speed); 23.4 mph (24-speed) Max Travel Speed (Reverse) 27.25 mph (12x12, 4WD front axle, 18R34 tires) 18.4 mph (8-speed); 23.5 mph (12-speed) Clutch Not Published Multiple wet disc Differential Lock & Limited Slip Options Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement Limited slip differential (front); mechanical differential lock (rear) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Hydraulic wet disc Hydraulic wet disc Seat Suspension & Adjustability Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests Suspension seat with fore and aft travel adjustment, suspension tension knob, backrest tilt adjustment and arm rest Front Axle Type Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) Bevel gear type with 55 degree turning angle (4WD) Front Axle Rating 9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle) 5730 lb Drawbar Capacity Not Published 3300 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 163.1 in (2WD); 160.9 in (4WD) 155.9 in Overall Width 75.7 in 79.1 in Wheelbase 92.2 in (2WD); 89.9 in (4WD) 88.6 in Ground Clearance Not Published 19.7 in Min. Turn Radius without Brakes 134 in (optional 2WD front axle, w/o brakes) 13.8 ft Height to Top of ROPS 106.5 in 99.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.1 in 101.2 in ▶ WeightTractor Weight (Base) 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) 6173 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions Front: 7.50-18, 9.5L-15, 9.5-22, 10.00-16, 11.2-24, 12.4-24; Rear: 16.9-30, 16.9-34, 18.4-30 R1 Agricultural - Front 2WD: 10.00-16; 4WD: 12.4-24 12.4-24 R1 Agricultural - Rear 18.4R34 (reference tire for OEM weights and dimensions) 18.4-30 R3 Turf - Front Not Published 9.5L-15 F2 or 27x9.50-15 HF-1 (rib fronts paired with the R3 rears) R3 Turf - Rear Not Published 18.4-26 R3 or 19.5L-24 R3 R4 Industrial - Front Not Published 9.5L-15 F2 (rib front paired with the R4 rear) R4 Industrial - Rear Not Published 19.5L-24 R4 ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) Quick coupler standard (Euro type optional); quick-mount loader attach and detach without tools; single-lever hydraulic hose quick coupler optional Loader Model 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) LA1854 Loader Lift Height 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in 145.7 in (height position); 131.9 in (power position) Loader Lift Capacity (Full Height) 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb 3990 lb (height position); 4144 lb (power position) Loader Breakout Force 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) LA1854: 5,501 lb (height position); 6,470 lb (power position) ▶ WarrantyWarranty Length & Coverage Not Published 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
