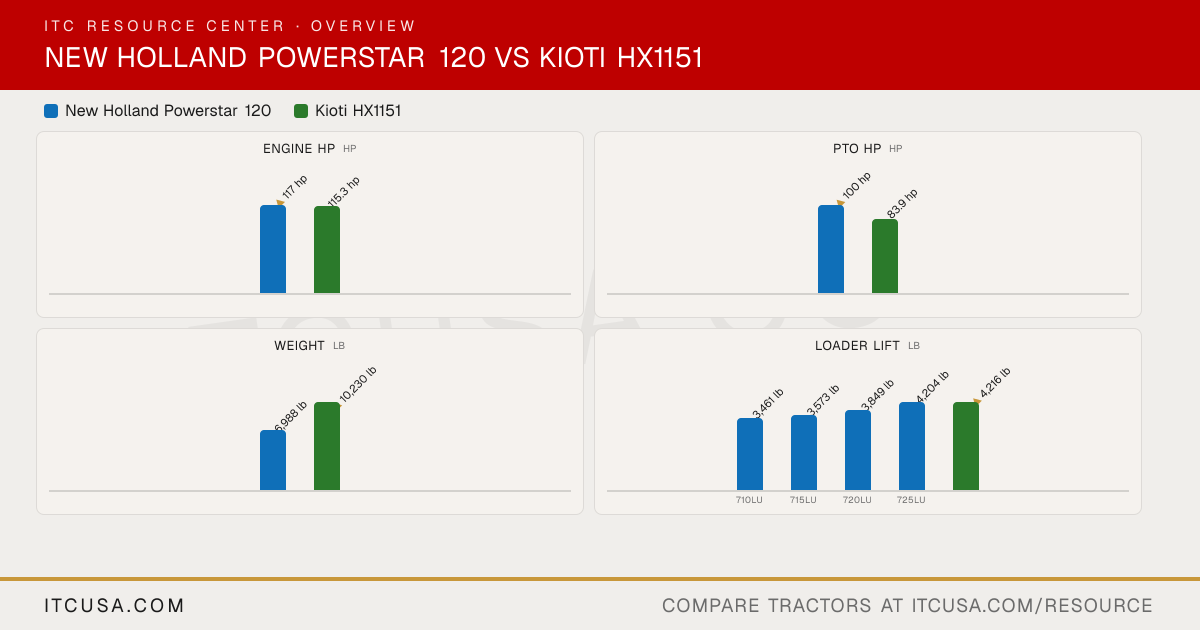

▶ EngineEngine Manufacturer FPT Industrial KIOTI (Daedong) Engine Model F5G 4J243TA-TP5B Engine Type 4-cylinder diesel, turbocharged and aftercooled In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4J243TA-TP5B) No. of Cylinders 4 4 Displacement 207 in³ 233.9 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 117 hp 115.3 hp PTO Power 100 hp 83.9 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dry element with evacuator valve Fuel System Electronic high-pressure common rail fuel injection Common Rail Direct Injection (CRDI) Alternator ROPS: 120 A; Cab: 150 A Not Published ▶ HydraulicsPump Type Open-center; dual pumps (implement pump plus dedicated steering pump) Gear Implement Flow 16.9 gpm 19.8 gpm Steering Flow 9.7 gpm 12.2 gpm Total Hydraulic Flow 26.6 gpm 32 gpm Overall Hydraulic Pump Flow 26.6 gpm 32 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 rear remotes (open center with detent) 3 No. of Optional Remote Valves 1 (third rear remote, DIA kit) 1 ▶ Fluid CapacityFuel Tank Capacity 30.3 gal 47.6 gal Coolant Capacity Not Published 4.7 gal Crankcase Capacity Not Published 3.9 gal Transmission / Hydraulic System Capacity Not Published 20.34 gal Front Axle Fluid Capacity Not Published 2.6 gal ▶ PTO & HitchPTO Type Fully independent hydraulic PTO Independent PTO Rear 540/1000 rpm (standard, interchangeable shafts) 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published 8,079 lb Hitch Lift Capacity (at 24”) 5,620 lb 8,002 lb Lift Control Type Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) Electronic control ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) Power Shuttle w/ Hi-Lo Shift No. of Speeds 12F/12R (standard); 20F/20R with creeper (optional) 24 forward / 24 reverse Max Travel Speed (Forward) 27 mph (4WD front axle); 20 mph (2WD front axle) 23.83 mph Max Travel Speed (Reverse) 27.25 mph (12x12, 4WD front axle, 18R34 tires) 23.67 mph Clutch Not Published Wet Multi Disc Differential Lock & Limited Slip Options Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement Mechanical rear differential lock (standard); front limited-slip differential ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Power Steering Brakes Hydraulic wet disc Wet Multi Disc Seat Suspension & Adjustability Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests Heated air suspension seat, 20 degree swivel both directions, adjustable fore/aft Front Axle Type Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) 4WD with outboard planetary final drives and limited-slip differential Front Axle Rating 10,360 lb (standard heavy-duty 4WD front axle, maximum capacity); 7,716 lb (optional 2WD heavy-duty front axle) Not Published Drawbar Capacity Not Published Max. Drawbar vertical load: 3,307 lb; Max. Trailer loading weight: 9,921 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 163.1 in (2WD); 160.9 in (4WD) 170.8 in Overall Width 75.7 in 88.6 in Wheelbase 92.2 in (2WD); 89.9 in (4WD) 94.9 in Ground Clearance Not Published 18.9 in Min. Turn Radius without Brakes 134 in (optional 2WD front axle, w/o brakes) 12.7 ft (with brake applied) Height to Top of ROPS 106.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.1 in 111.9 in ▶ WeightTractor Weight (Base) 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) 10,230 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions R1 Agricultural (bias 13.6-24 / 18.4-34, radial 13.6R-24 / 18.4R-34); R14 radial (340/85R24 / 460/85R34) R1 Agricultural - Front 2WD: 10.00-16; 4WD: 12.4-24 13.6-24 R1 Agricultural - Rear 18.4R34 (reference tire for OEM weights and dimensions) 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) KL1155: quick-attach system with built-in parking stand; single-lever joystick control with float; bucket level indicator Loader Model 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) KL1155 Loader Lift Height 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in KL1155: 150.6 in (to pivot pin) Loader Lift Capacity (Full Height) 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb KL1155: 4,216 lb (at pivot pins) Loader Breakout Force 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) KL1155: 8,554 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage Not Published Tractors (Non-Commercial): 24 months parts & labor, unlimited hours, 0% deductible; powertrain (engine and driveline): 48 months unlimited hours on HX Series
