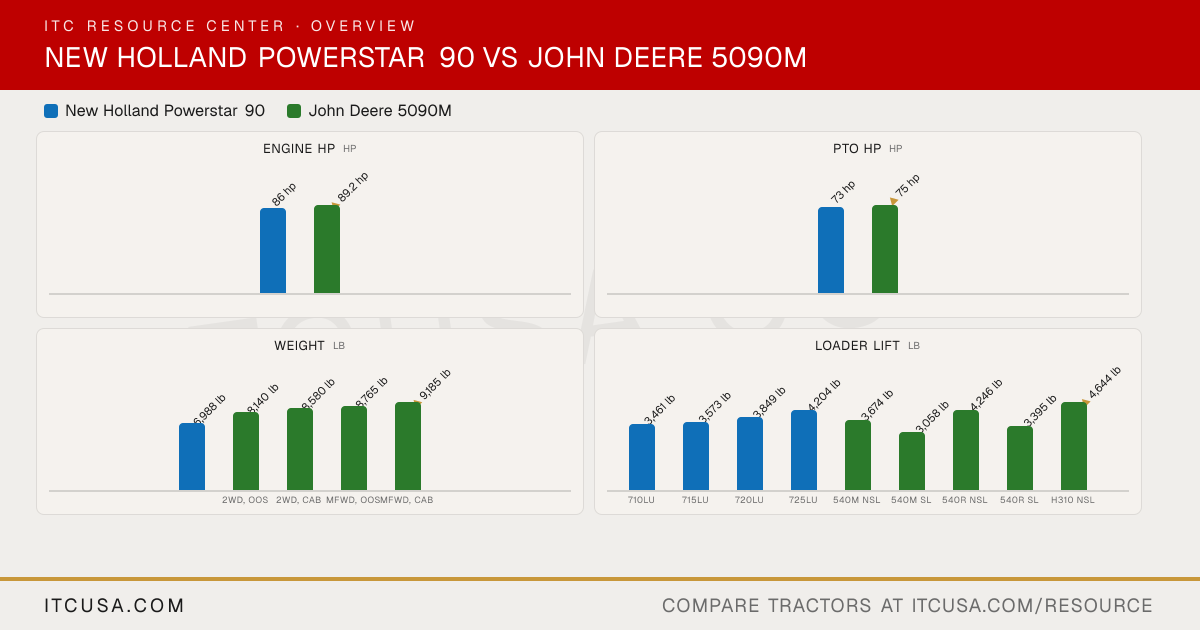

▶ EngineEngine Manufacturer FPT Industrial John Deere Engine Model F5G PowerTech 4045 PWL Engine Type 4-cylinder diesel, turbocharged and aftercooled Diesel, turbocharged, air-to-air aftercooled No. of Cylinders 4 4 Displacement 207 in³ 276 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 86 hp 89.2 hp PTO Power 73 hp 75 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled (Cool-Gard II coolant) Air Cleaner Not Published Dry air cleaner, primary and secondary elements Fuel System Electronic high-pressure common rail fuel injection High Pressure Common Rail (HPCR) electronic fuel injection Alternator ROPS: 120 A; Cab: 150 A OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V ▶ HydraulicsPump Type Open-center; dual pumps (implement pump plus dedicated steering pump) Tandem gear pump Implement Flow 16.9 gpm 18.4 gpm Steering Flow 9.7 gpm 6.3 gpm Total Hydraulic Flow 26.6 gpm 24.7 gpm Overall Hydraulic Pump Flow 26.6 gpm 24.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 rear remotes (open center with detent) 2 (rear, Dual SCV) No. of Optional Remote Valves 1 (third rear remote, DIA kit) Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions ▶ Fluid CapacityFuel Tank Capacity 30.3 gal OOS: 29.6 gal; OOS (High Capacity): 37.2 gal; Cab: 37 gal; Cab (High Capacity): 44.9 gal Coolant Capacity Not Published OOS: 5.2 gal; Cab: 5.8 gal Crankcase Capacity Not Published 3.4 gal Transmission / Hydraulic System Capacity Not Published 10.4 gal Front Axle Fluid Capacity Not Published Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal ▶ PTO & HitchPTO Type Fully independent hydraulic PTO Independent rear PTO (electro-hydraulic wet disc clutch): 540/540E standard; 540/540E/1000 optional PTO Rear 540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional) 540/540E rpm standard; 1000 rpm optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II (convertible to I) Hitch Lift Capacity Not Published 5,305 lb standard; 6,114 lb optional Hitch Lift Capacity (at 24”) 5,620 lb 5,159 lb standard; 5,954 lb optional Lift Control Type Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) Mechanical or electrohydraulic (draft control) ▶ Transmission & DrivetrainTransmission Type 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus No. of Speeds 12F/12R (standard); 20F/20R with creeper (optional) 16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo) Max Travel Speed (Forward) 27 mph (4WD front axle); 20 mph (2WD front axle) 16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph Max Travel Speed (Reverse) 27.25 mph (12x12, 4WD front axle, 18R34 tires) 16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph Clutch Not Published Wet Differential Lock & Limited Slip Options Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement Electro-hydraulic rear differential lock, engage on the go ▶ Chassis, Steering & ControlsFrame Type Not Published Cast iron mid-frame Steering Power steering Not Published Brakes Hydraulic wet disc Not Published Seat Suspension & Adjustability Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb Front Axle Type Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) MFWD Front Axle Rating 9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle) 6,613 lb (MFWD, max permissible front axle load) Drawbar Capacity Not Published Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 163.1 in (2WD); 160.9 in (4WD) 149.5 in Overall Width 75.7 in Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Wheelbase 92.2 in (2WD); 89.9 in (4WD) 92.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 134 in (optional 2WD front axle, w/o brakes) Not Published Height to Top of ROPS 106.5 in 102.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.1 in 102.9 in ▶ WeightTractor Weight (Base) 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) 2WD, OOS: 8,140 lb; 2WD, Cab: 8,580 lb; MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions Not Published R1 Agricultural - Front 2WD: 10.00-16; 4WD: 12.4-24 12.4R24 (320/85R24) R1W Radial R1 Agricultural - Rear 18.4R34 (reference tire for OEM weights and dimensions) 18.4R30 (460/85R30) R1W Radial R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) Not Published Loader Model 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) Loader Lift Height 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in Loader Lift Capacity (Full Height) 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) Loader Breakout Force 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published 24 Months or 2000 Hours, Whichever Comes First (whole-machine, standard Agricultural Equipment tractor term)
