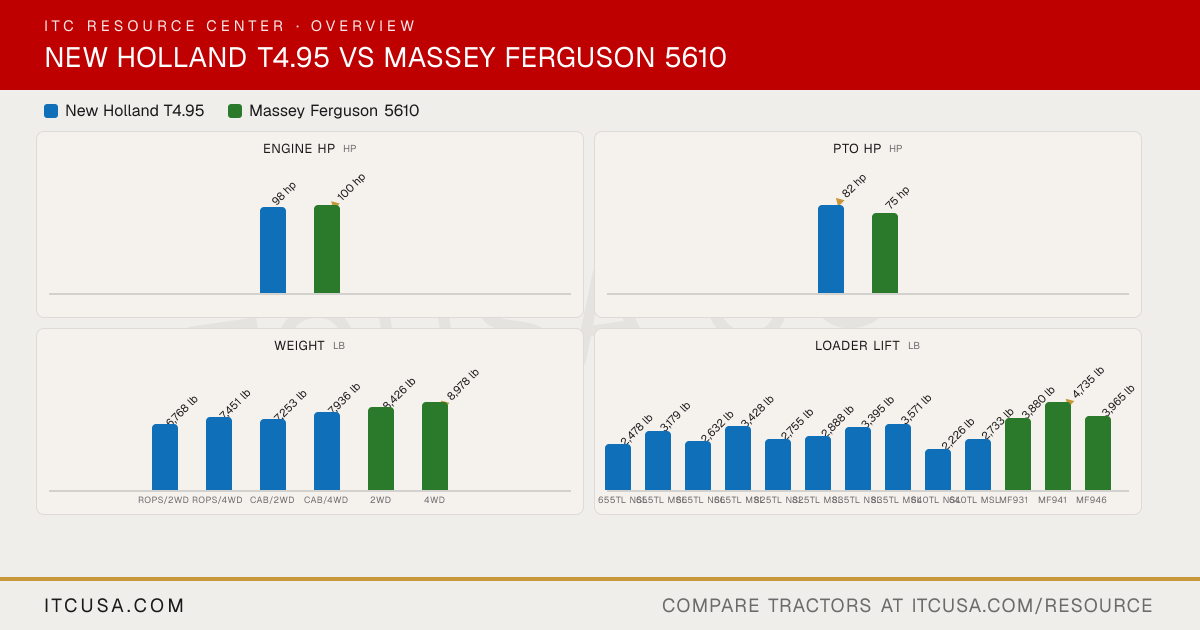

▶ EngineEngine Manufacturer FPT AGCO Power Engine Model F5D 33 AWI HD Engine Type 4-cylinder diesel 3-cylinder turbocharged and intercooled diesel No. of Cylinders 4 3 Displacement 207 in³ 201 in³ Rated Engine Speed Not Published 2200 rpm Engine Power (Gross) 98 hp 100 hp PTO Power 82 hp 75 hp Engine Emissions Constraints Tier 4A with Cooled Exhaust Gas Recirculation (CEGR) and a Diesel Particulate Filter (DPF) Tier 4i Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published 2-stage dry Fuel System Common rail fuel injection Common rail direct injection Alternator Not Published 120 A ▶ HydraulicsPump Type Not Published Single gear pump; tandem gear pumps optional Implement Flow 16.9 gpm 15 gpm standard; 26 gpm with optional Twin Flow Steering Flow 9.7 gpm Not Published Total Hydraulic Flow 26.6 gpm (16.9 + 9.7) 26 gpm (tandem pumps: 15 gpm to the 3-point hitch plus 11 gpm to remotes, combinable) Overall Hydraulic Pump Flow 26.6 gpm (16.9 + 9.7) Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 15 gpm standard; 26 gpm with optional Twin Flow No. of Standard Remote Valves 2 (3 DIA) 2 No. of Optional Remote Valves Not Published Up to 4 ▶ Fluid CapacityFuel Tank Capacity 30.3 gal 42 gal Coolant Capacity Not Published 15.3 qt Crankcase Capacity Not Published 13.7 qt Transmission / Hydraulic System Capacity Not Published 17.2 gal Front Axle Fluid Capacity Not Published 5.3 qt axle beam; 0.85 qt each final drive ▶ PTO & HitchPTO Type Not Published Independent, electro-hydraulic engagement and speed selection PTO Rear 540 (12x12 base); 540/540E or 540/1000 (12x12 optional); 540/540E (24x24 Dual Command base); 540/1000 (24x24 Dual Command optional) 540/540E standard; 540/540E/1000 optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published 9,480 lb Hitch Lift Capacity (at 24”) 5,620 lb (7,351 lb with optional ram) 7,100 lb Lift Control Type Not Published Electronically operated, lower-link draft sensing ▶ Transmission & DrivetrainTransmission Type 12x12 mechanical shuttle (standard); 12x12 power shuttle, 20x20 power shuttle with creeper, 24x24 Dual Command or 40x40 Dual Command with creeper (optional) Dyna-4 16x16 power shift and power shuttle (AUTO-DRIVE optional, 14:1 creeper optional) No. of Speeds 12F/12R (standard); 20F/20R, 24F/24R or 40F/40R (optional) 16F / 16R Max Travel Speed (Forward) Not Published 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Wet multi-disc, foot pedal and electronic control Differential Lock & Limited Slip Options Mechanical rear differential lock (pedal) Fully locking front and rear axle differentials, electro-hydraulically engaged ▶ Chassis, Steering & ControlsFrame Type Not Published Rigid structural chassis; solid cast-steel flanged rear axle, internal planetary reduction Steering Not Published Hydrostatic power steering Brakes Not Published Internal wet disc, hydraulic power assist, individual left and right foot pedals Seat Suspension & Adjustability Cab: fabric mechanical-suspension seat (standard) or fabric air-suspension seat with 15° swivel; full-size instructor seat available. ROPS: vinyl mechanical-suspension seat with armrests Mechanical suspended swivel seat, standard; manual or automatic air-suspension, optional Front Axle Type Standard-duty, electronically engaged 4WD front axle (standard); optional: mechanically engaged standard-duty 4WD, electronically engaged heavy-duty 4WD, or 2WD front axle Adjustable 2WD, or fixed cast-steel 4WD (single-piece), outboard planetary final drives Front Axle Rating 4,700 lb (standard-duty 4WD, in-action capacity); 5,100 lb (heavy-duty 4WD, in-action capacity) 2WD: 6,085 lb; 4WD: 10,500 lb Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 75.7 in 79.3 in Wheelbase 2WD: 90.2 in; 4WD: 87.9 in 97.1 in Ground Clearance Not Published 17.6 in Min. Turn Radius without Brakes 132 in (2WD front axle) Not Published Height to Top of ROPS 106.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.1 in 111.3 in (16.9R38 rear tires) Overall Length 2WD: 161 in; 4WD: 158 in 167.5 in ▶ WeightTractor Weight (Base) ROPS/2WD: 6,768 lb; ROPS/4WD: 7,451 lb; Cab/2WD: 7,253 lb; Cab/4WD: 7,936 lb 2WD: 8,426 lb; 4WD: 8,978 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 radial agricultural tires only; 16.9R38 rear is the speed chart basis (16.9R34, 16.9R30, 18.4R30, 18.4R34, 13.6R38 listed) R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published 16.9R38 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer or Euro-style quick attach faceplate MF931, MF941, MF946: quick attachment, single lever locking system Loader Model 655TL, 665TL (factory installed, NSL or MSL); 825TL, 835TL, 640TL (dealer installed, NSL or MSL) MF931, MF941, MF946 Loader Lift Height 655TL NSL: 126 in; 655TL MSL: 125 in; 665TL NSL: 134 in; 665TL MSL: 135 in; 825TL: 135 in; 835TL: 143 in; 640TL: 137 in MF931: 138 in; MF941: 148 in; MF946: 148 in (at pivot pins) Loader Lift Capacity (Full Height) 655TL NSL: 2,478 lb; 655TL MSL: 3,179 lb; 665TL NSL: 2,632 lb; 665TL MSL: 3,428 lb (at 31.5 in from pivot point); 825TL NSL: 2,755 lb; 825TL MSL: 2,888 lb; 835TL NSL: 3,395 lb; 835TL MSL: 3,571 lb; 640TL NSL: 2,226 lb; 640TL MSL: 2,733 lb (at max height) MF931: 3,880 lb; MF941: 4,735 lb; MF946: 3,965 lb (at pivot) Loader Breakout Force 655TL NSL: 3,739 lb; 655TL MSL: 3,860 lb; 665TL NSL: 4,455 lb; 665TL MSL: 5,661 lb (at 31.5 in from bucket pivot point); 825TL NSL: 2,910 lb; 825TL MSL: 3,196 lb; 835TL NSL: 3,615 lb; 835TL MSL: 3,990 lb; 640TL NSL: 3,747 lb; 640TL MSL: 3,306 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published 2-year/2,000-hour full coverage, all parts and labor
