New Holland T5.115 vs John Deere 5115M | Side-by-side comparison | ITC Resource Center
Compare Tractors

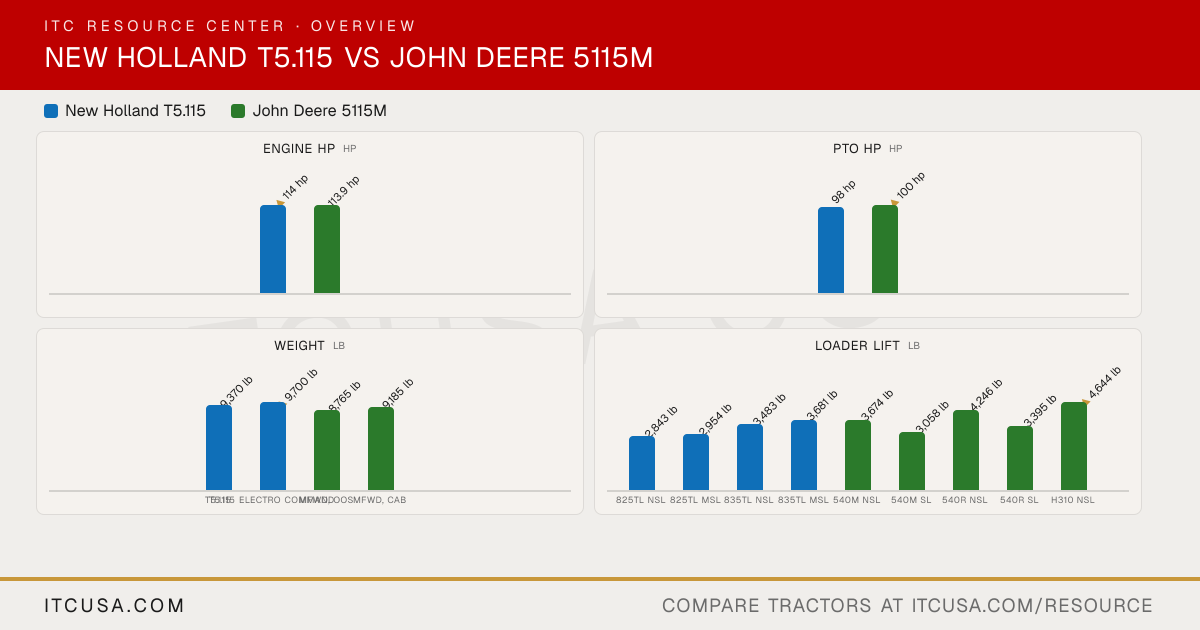

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
T5.115: 6,393 lb (10,452 lb with 2 optional rams); T5.115 Electro Command: 6,393 lb (8,809 lb with 1 optional ram, 10,452 lb with 2)
5,159 lb standard; 5,954 lb optional
Lift Control Type
Electronic draft control
Mechanical or electrohydraulic (draft control)
Transmission Type
T5.115: 12x12 power shuttle (standard), 20x20 power shuttle with creeper or 24x24 Dual Command power shuttle (optional); T5.115 Electro Command: 16x16 power shuttle (standard), 32x32 power shuttle with creeper (optional)
PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus
Electro-hydraulic rear differential lock; limited slip front
Electro-hydraulic rear differential lock, engage on the go
Frame Type
Not Published
Cast iron mid-frame
Steering
Hydrostatic power steering
Not Published
Brakes
Hydraulic wet disc
Not Published
Seat Suspension & Adjustability
Numerous seat options including a premium low-frequency heated air-suspension seat; full-size instructor seat available
OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb
T5.115: 163.8 in; T5.115 Electro Command: 165.0 in
149.5 in
Overall Width
82.6 in
Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in
Wheelbase
92.5 in
92.5 in
Ground Clearance
Not Published
Not Published
Min. Turn Radius without Brakes
Not Published
Not Published
Height to Top of ROPS
Not Published
102.1 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
T5.115: 105.4 in; T5.115 Electro Command: 105.6 in (non-suspended cab), 107.2 in (suspended cab)
