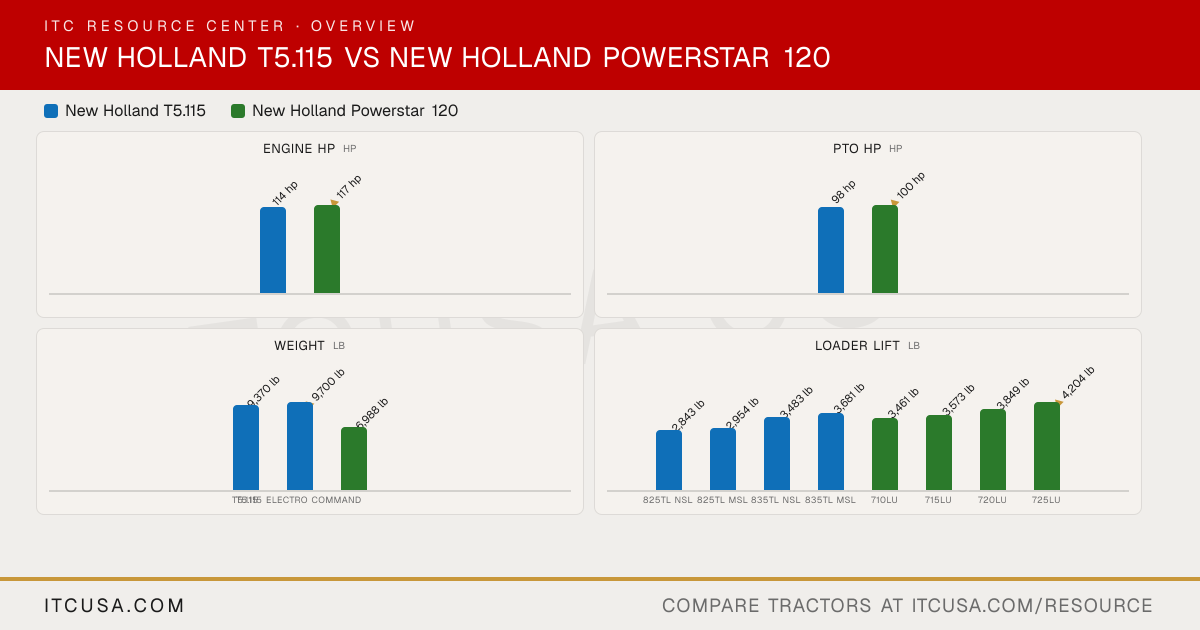

▶ EngineEngine Manufacturer FPT FPT Industrial Engine Model F5D F5G Engine Type 4-cylinder diesel 4-cylinder diesel, turbocharged and aftercooled No. of Cylinders 4 4 Displacement 207 in³ 207 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 114 hp 117 hp PTO Power 98 hp 100 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Not Published Electronic high-pressure common rail fuel injection Alternator 120 A ROPS: 120 A; Cab: 150 A ▶ HydraulicsPump Type Gear pumps Open-center; dual pumps (implement pump plus dedicated steering pump) Implement Flow T5.115: 16.1 gpm (21.1 gpm optional); T5.115 Electro Command: 21.1 gpm (16.1 gpm optional) 16.9 gpm Steering Flow T5.115: 10.0 gpm (11.4 gpm optional); T5.115 Electro Command: 11.4 gpm (10.0 gpm optional) 9.7 gpm Total Hydraulic Flow T5.115: 26.1 gpm (16.1 + 10.0, computed); T5.115 Electro Command: 32.5 gpm (21.1 + 11.4, computed) 26.6 gpm Overall Hydraulic Pump Flow T5.115: 26.1 gpm (16.1 + 10.0, computed); T5.115 Electro Command: 32.5 gpm (21.1 + 11.4, computed) 26.6 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 (3 optional) 2 rear remotes (open center with detent) No. of Optional Remote Valves Not Published 1 (third rear remote, DIA kit) ▶ Fluid CapacityFuel Tank Capacity 37 gal 30.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulic clutch Fully independent hydraulic PTO PTO Rear 540/1000 540/1000 rpm (standard, interchangeable shafts) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) T5.115: 6,393 lb (10,452 lb with 2 optional rams); T5.115 Electro Command: 6,393 lb (8,809 lb with 1 optional ram, 10,452 lb with 2) 5,620 lb Lift Control Type Electronic draft control Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) ▶ Transmission & DrivetrainTransmission Type T5.115: 12x12 power shuttle (standard), 20x20 power shuttle with creeper or 24x24 Dual Command power shuttle (optional); T5.115 Electro Command: 16x16 power shuttle (standard), 32x32 power shuttle with creeper (optional) 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) No. of Speeds T5.115: 12F/12R (20F/20R or 24F/24R optional); T5.115 Electro Command: 16F/16R (32F/32R optional) 12F/12R (standard); 20F/20R with creeper (optional) Max Travel Speed (Forward) Not Published 27 mph (4WD front axle); 20 mph (2WD front axle) Max Travel Speed (Reverse) Not Published 27.25 mph (12x12, 4WD front axle, 18R34 tires) Clutch Not Published Not Published Differential Lock & Limited Slip Options Electro-hydraulic rear differential lock; limited slip front Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Hydraulic wet disc Hydraulic wet disc Seat Suspension & Adjustability Numerous seat options including a premium low-frequency heated air-suspension seat; full-size instructor seat available Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests Front Axle Type Heavy-duty 4WD front axle (standard) Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) Front Axle Rating 4,500 lb (in-action capacity at 4 mph) 10,360 lb (standard heavy-duty 4WD front axle, maximum capacity); 7,716 lb (optional 2WD heavy-duty front axle) Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch T5.115: 163.8 in; T5.115 Electro Command: 165.0 in 163.1 in (2WD); 160.9 in (4WD) Overall Width 82.6 in 75.7 in Wheelbase 92.5 in 92.2 in (2WD); 89.9 in (4WD) Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 134 in (optional 2WD front axle, w/o brakes) Height to Top of ROPS Not Published 106.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model T5.115: 105.4 in; T5.115 Electro Command: 105.6 in (non-suspended cab), 107.2 in (suspended cab) 102.1 in ▶ WeightTractor Weight (Base) T5.115: 9,370 lb; T5.115 Electro Command: 9,700 lb 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions R1 Agricultural - Front Not Published 2WD: 10.00-16; 4WD: 12.4-24 R1 Agricultural - Rear Not Published 18.4R34 (reference tire for OEM weights and dimensions) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or European-style Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) Loader Model 825TL; 835TL (each NSL or MSL) 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) Loader Lift Height 825TL: 138 in; 835TL: 146 in 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in Loader Lift Capacity (Full Height) 825TL NSL: 2,843 lb; 825TL MSL: 2,954 lb; 835TL NSL: 3,483 lb; 835TL MSL: 3,681 lb 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb Loader Breakout Force 825TL NSL: 2,976 lb; 825TL MSL: 3,284 lb; 835TL NSL: 3,725 lb; 835TL MSL: 4,100 lb 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
