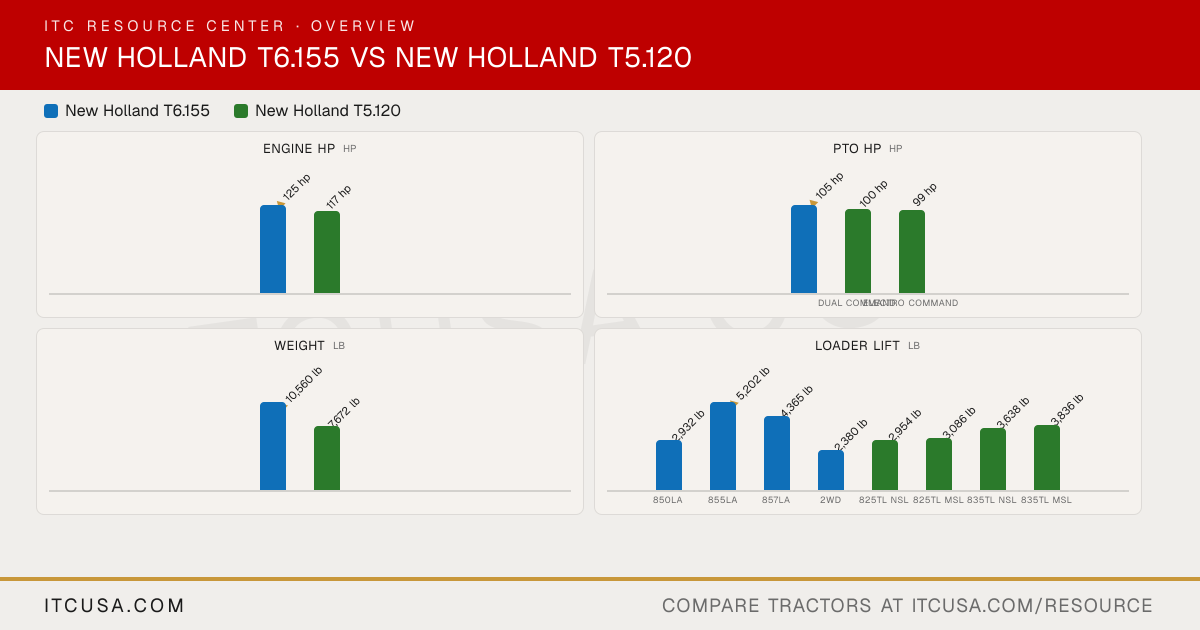

▶ EngineEngine Manufacturer FPT FPT Engine Model NEF F5G Engine Type 4-cylinder, 16-valve, turbocharged and intercooled, common-rail diesel, electronic fuel delivery control Dual Command: 4-cylinder diesel; Electro Command: 4-cylinder, turbocharged and intercooled, common-rail diesel No. of Cylinders 4 4 Displacement 274 in³ 207 in³ Rated Engine Speed 2100 rpm 2200 rpm Engine Power (Gross) 125 hp 117 hp PTO Power 105 hp Dual Command: 100 hp; Electro Command: 99 hp Engine Emissions Constraints Stage V/Final Tier 4B/Final Cooling System Type Not Published Liquid cooled Air Cleaner Not Published Not Published Fuel System High-pressure common-rail, electronic fuel delivery control Electro Command: high-pressure common-rail, electronic fuel delivery control Alternator 150 A 120 A ▶ HydraulicsPump Type Electro Command: fixed-displacement gear pump (CCLS optional); Dynamic Command, Auto Command: closed-center load-sensing (CCLS) pump Fixed displacement, tandem pumps (implement and steering) Implement Flow Value: 21.1 gpm; Plus, Elite: 29.9 gpm Dual Command: 16.9 gpm; Electro Command: 21.1 gpm Steering Flow 12.4 gpm (17.2 gpm optional pump with Class 4 front axle) Dual Command: 9.7 gpm; Electro Command: 11.4 gpm Total Hydraulic Flow Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) Dual Command: 26.6 gpm (16.9 + 9.7, computed); Electro Command: 32.5 gpm (21.1 + 11.4, computed) Overall Hydraulic Pump Flow Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) Dual Command: 26.6 gpm (16.9 + 9.7, computed); Electro Command: 32.5 gpm (21.1 + 11.4, computed) Hydraulic System Type Electro Command: fixed displacement, closed-center (CCLS optional); Dynamic Command: closed-center load-sensing (CCLS); Auto Command: CCLS Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 mechanical (Value, Plus, Elite) Dual Command: 2 or 3; Electro Command: 2 No. of Optional Remote Valves Rear: 3 or 4 mechanical, or 3 or 4 electro-hydraulic (Elite); mid-mount: 2 or 3, mechanical or electronic Electro Command: 3 mechanical rear; mid-mount: 2 Function Mechanical or 2 Function Electronic ▶ Fluid CapacityFuel Tank Capacity 52.2 gal (58.6 gal with auxiliary tank); Dynamic Command: 60 gal Electro Command: 43.6 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent, direct-drive PTO with push-pull engagement and Soft Start; reversible PTO shaft Independent (hydraulic wet disc clutch) PTO Rear 540/1000 rpm (540 at 1969 engine rpm, 1000 at 1893 engine rpm) Dual Command: 540/1000 rpm (optional); Electro Command: 540/1000 rpm (540/540E/1000 optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) Value: 8,338 lb; Auto Command: 9,214 lb; Plus, Elite and Auto Command with optional larger rams: 11,649 lb Dual Command: 5,620 lb (7,351 lb with optional ram) Lift Control Type Electronic draft control Not Published ▶ Transmission & DrivetrainTransmission Type Electro Command: 16x16 semi-powershift (standard), with 17x16 economy, 17x16 31 mph, 32x32 creeper and auto-shift options; Dynamic Command: 23x23 semi-powershift, with 24x24 economy, 31 mph and creeper options Dual Command: 24x24 Hi-Lo with power shuttle (standard); Electro Command: 16x16 semi-powershift (auto-shift or 32x32 creeper optional) No. of Speeds Electro Command: 16F/16R, or 17F/16R economy or high-speed, 32F/32R with creeper; Dynamic Command: 23F/23R, or 24F/24R optional Dual Command: 24F/24R; Electro Command: 16F/16R (32F/32R with creeper) Max Travel Speed (Forward) 25 mph (Electro Command 16x16 and Dynamic Command 23x23 standard); 31 mph (17x16 high-speed and Dynamic Command 24x24 31 mph options, FWD only); 19 mph (2WD) 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Terralock automatic traction management: automatic four-wheel drive engagement and front and rear differential locks TerraLock automatic 4WD engagement and differential lock system (optional on Electro Command) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Power steering Brakes Not Published Hydraulic wet disc Seat Suspension & Adjustability Standard: low-frequency suspension seat; optional: heated low-frequency suspension seat, or heated and ventilated active-suspension seat; swiveling backrest; suspended cab optional Not Published Front Axle Type Standard FWD axle (Class 3 and 4); optional: Terraglide suspended FWD axle or SuperSteer FWD axle; heavy-duty 2WD axle available on Electro Command 4WD front axle, Class 1.5 HD; TerraGlide suspended front axle optional on Electro Command Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 89.8 in (minimum; 91 in with 650/65R38 tires) Dual Command: 75.7 in Wheelbase Standard FWD axle: 104 in; Terraglide suspended axle: 105.7 in; SuperSteer axle: 109.8 in; 2WD: 96 in Dual Command: 89.9 in; Electro Command: 93.7 in Ground Clearance 18.8 in (18.4R38, 520/70R38 or 600/65R38 rear tires; 16.8 in with 16.9R38, 20.8 in with 650/65R38) Not Published Min. Turn Radius without Brakes 15.1 ft (standard FWD axle, 55 degree turn angle); 14.1 ft (2WD or SuperSteer axle, 65 degree turn angle) Not Published Height to Top of ROPS Not Published Dual Command: 106.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 115.2 in (standard cab, 18.4R38 tires); 110.4 in (low profile cab); 117.7 in (suspended cab) Dual Command: 102.1 in; Electro Command: 107 in Overall Length 204.3 in (front linkage to rear linkage) Dual Command: 160.9 in; Electro Command: 165 in ▶ WeightTractor Weight (Base) 10,560 lb (minimum shipping weight, cab FWD, less ballast) Dual Command (ROPS): 7,672 lb; Dual Command (Cab): 8,157 lb; Electro Command (shipping weight, less ballast): 10,031 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 16.9R38, 18.4R38, 520/70R38, 600/65R38, 650/65R38 (suspended cab only), 480/70R38, 540/65R38 or 650/60R38 with matching front tires Not Published R1 Agricultural - Front Not Published 14.9R24 R1 Agricultural - Rear 18.4R38 (reference tire; also 16.9R38, 520/70R38, 600/65R38, 650/65R38, 480/70R38, 540/65R38, 650/60R38) 18.4R34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Euro style (850LA, 855LA, 857LA); Euro or skid steer style (810LA) Skid-steer style or European style attachment system Loader Model FWD: 850LA (NSL), 855LA (MSL); SuperSteer FWD: 857LA (MSL); 2WD: 810LA (NSL) 810LA (NSL); 815LA (MSL) Loader Lift Height 850LA: 13.5 ft; 855LA: 13.5 ft; 857LA: 13.9 ft; 810LA (2WD): 11.9 ft (to pivot pin, base equipment tires) 825TL: 139.0 in; 835TL: 146.9 in (to pivot pin) Loader Lift Capacity (Full Height) 850LA: 2,932 lb; 855LA: 5,202 lb; 857LA: 4,365 lb; 810LA (2WD): 2,380 lb (to maximum height, measured 31.5 in forward of the pivot pin, with rear counterbalance) 825TL NSL: 2,954 lb; 825TL MSL: 3,086 lb; 835TL NSL: 3,638 lb; 835TL MSL: 3,836 lb (to max height, measured 31.5 in forward of pivot pin) Loader Breakout Force 850LA: 4,673 lb; 855LA: 5,974 lb; 857LA: 4,894 lb; 810LA (2WD): 3,439 lb (measured 31.5 in forward of the pivot pin) 825TL NSL: 3,109 lb; 825TL MSL: 3,417 lb; 835TL NSL: 3,880 lb; 835TL MSL: 4,277 lb (measured 31.5 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
