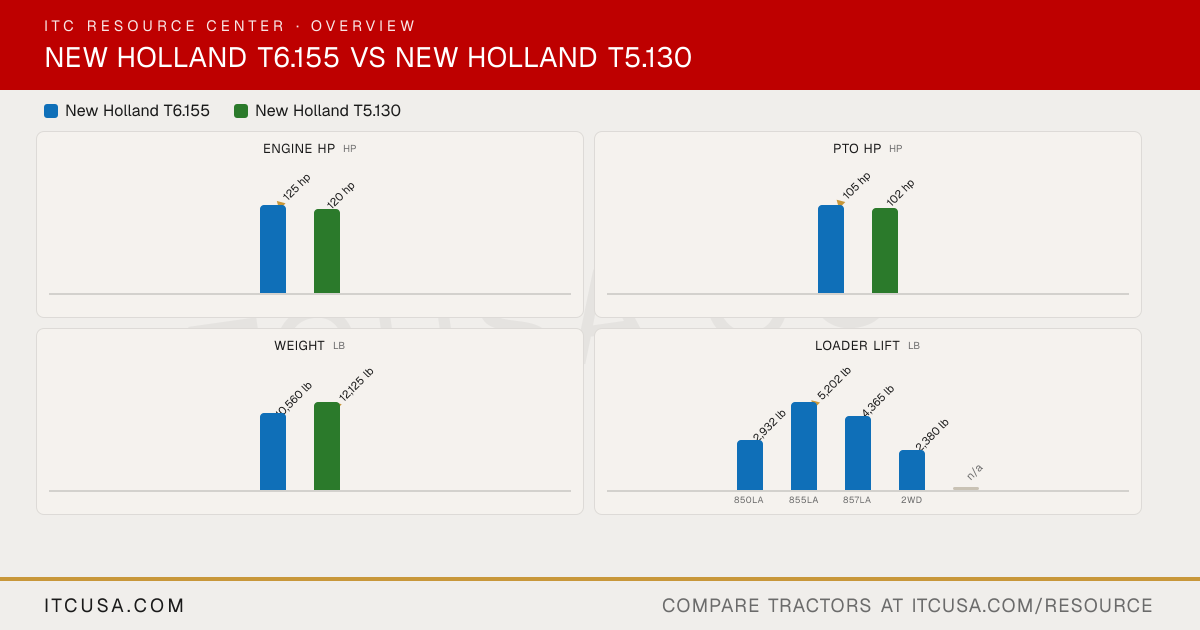

▶ EngineEngine Manufacturer FPT FPT Engine Model NEF NEF4 Engine Type 4-cylinder, 16-valve, turbocharged and intercooled, common-rail diesel, electronic fuel delivery control 4-cylinder diesel No. of Cylinders 4 4 Displacement 274 in³ 273 in³ Rated Engine Speed 2100 rpm 2200 rpm Engine Power (Gross) 125 hp 120 hp PTO Power 105 hp 102 hp Engine Emissions Constraints Stage V/Final Stage V Cooling System Type Not Published Liquid cooled Air Cleaner Not Published Not Published Fuel System High-pressure common-rail, electronic fuel delivery control Not Published Alternator 150 A 120 A ▶ HydraulicsPump Type Electro Command: fixed-displacement gear pump (CCLS optional); Dynamic Command, Auto Command: closed-center load-sensing (CCLS) pump Not Published Implement Flow Value: 21.1 gpm; Plus, Elite: 29.9 gpm 21.1 gpm (29 gpm MegaFlow CCLS pump optional) Steering Flow 12.4 gpm (17.2 gpm optional pump with Class 4 front axle) 9.6 gpm Total Hydraulic Flow Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) Not Published Overall Hydraulic Pump Flow Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) Not Published Hydraulic System Type Electro Command: fixed displacement, closed-center (CCLS optional); Dynamic Command: closed-center load-sensing (CCLS); Auto Command: CCLS Closed center load sensing (CCLS) Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 mechanical (Value, Plus, Elite) Not Published No. of Optional Remote Valves Rear: 3 or 4 mechanical, or 3 or 4 electro-hydraulic (Elite); mid-mount: 2 or 3, mechanical or electronic Up to 4 rear (up to 3 mid-mount) ▶ Fluid CapacityFuel Tank Capacity 52.2 gal (58.6 gal with auxiliary tank); Dynamic Command: 60 gal 47.5 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent, direct-drive PTO with push-pull engagement and Soft Start; reversible PTO shaft Direct-drive PTO with push-pull engagement and Soft Start PTO Rear 540/1000 rpm (540 at 1969 engine rpm, 1000 at 1893 engine rpm) 540/540E/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published 12,125 lb (at ball ends) Hitch Lift Capacity (at 24”) Value: 8,338 lb; Auto Command: 9,214 lb; Plus, Elite and Auto Command with optional larger rams: 11,649 lb 10,228 lb Lift Control Type Electronic draft control Electronic Draft Control (EDC) ▶ Transmission & DrivetrainTransmission Type Electro Command: 16x16 semi-powershift (standard), with 17x16 economy, 17x16 31 mph, 32x32 creeper and auto-shift options; Dynamic Command: 23x23 semi-powershift, with 24x24 economy, 31 mph and creeper options Dynamic Command: 24x24 dual-clutch 8-step semi-powershift; Auto Command: continuously variable (CVT) No. of Speeds Electro Command: 16F/16R, or 17F/16R economy or high-speed, 32F/32R with creeper; Dynamic Command: 23F/23R, or 24F/24R optional Dynamic Command: 24F/24R; Auto Command: continuously variable Max Travel Speed (Forward) 25 mph (Electro Command 16x16 and Dynamic Command 23x23 standard); 31 mph (17x16 high-speed and Dynamic Command 24x24 31 mph options, FWD only); 19 mph (2WD) 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Terralock automatic traction management: automatic four-wheel drive engagement and front and rear differential locks Terralock automatic differential lock and automatic 4WD (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Power steering Brakes Not Published Hydraulic wet disc Seat Suspension & Adjustability Standard: low-frequency suspension seat; optional: heated low-frequency suspension seat, or heated and ventilated active-suspension seat; swiveling backrest; suspended cab optional Standard: low-frequency suspension seat; optional: heated seat with dynamic damping, or heated and ventilated semi-active-suspension seat Front Axle Type Standard FWD axle (Class 3 and 4); optional: Terraglide suspended FWD axle or SuperSteer FWD axle; heavy-duty 2WD axle available on Electro Command Class 1.75 heavy-duty 4WD front axle; Terraglide suspension optional Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 89.8 in (minimum; 91 in with 650/65R38 tires) 90 in standard (74 in minimum, narrow) Wheelbase Standard FWD axle: 104 in; Terraglide suspended axle: 105.7 in; SuperSteer axle: 109.8 in; 2WD: 96 in 98 in Ground Clearance 18.8 in (18.4R38, 520/70R38 or 600/65R38 rear tires; 16.8 in with 16.9R38, 20.8 in with 650/65R38) Not Published Min. Turn Radius without Brakes 15.1 ft (standard FWD axle, 55 degree turn angle); 14.1 ft (2WD or SuperSteer axle, 65 degree turn angle) 182 in Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 115.2 in (standard cab, 18.4R38 tires); 110.4 in (low profile cab); 117.7 in (suspended cab) 106 in (low-profile roof, 540/65R34 tires) Overall Length 204.3 in (front linkage to rear linkage) 173 in (max, weight carrier to rear linkage) ▶ WeightTractor Weight (Base) 10,560 lb (minimum shipping weight, cab FWD, less ballast) Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Rear: 16.9R38, 18.4R38, 520/70R38, 600/65R38, 650/65R38 (suspended cab only), 480/70R38, 540/65R38 or 650/60R38 with matching front tires Not Published R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear 18.4R38 (reference tire; also 16.9R38, 520/70R38, 600/65R38, 650/65R38, 480/70R38, 540/65R38, 650/60R38) Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Euro style (850LA, 855LA, 857LA); Euro or skid steer style (810LA) Skid-steer style or European style attachment system Loader Model FWD: 850LA (NSL), 855LA (MSL); SuperSteer FWD: 857LA (MSL); 2WD: 810LA (NSL) 800TL Series wide-frame loader (NSL or MSL) Loader Lift Height 850LA: 13.5 ft; 855LA: 13.5 ft; 857LA: 13.9 ft; 810LA (2WD): 11.9 ft (to pivot pin, base equipment tires) Not Published Loader Lift Capacity (Full Height) 850LA: 2,932 lb; 855LA: 5,202 lb; 857LA: 4,365 lb; 810LA (2WD): 2,380 lb (to maximum height, measured 31.5 in forward of the pivot pin, with rear counterbalance) Not Published Loader Breakout Force 850LA: 4,673 lb; 855LA: 5,974 lb; 857LA: 4,894 lb; 810LA (2WD): 3,439 lb (measured 31.5 in forward of the pivot pin) Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
