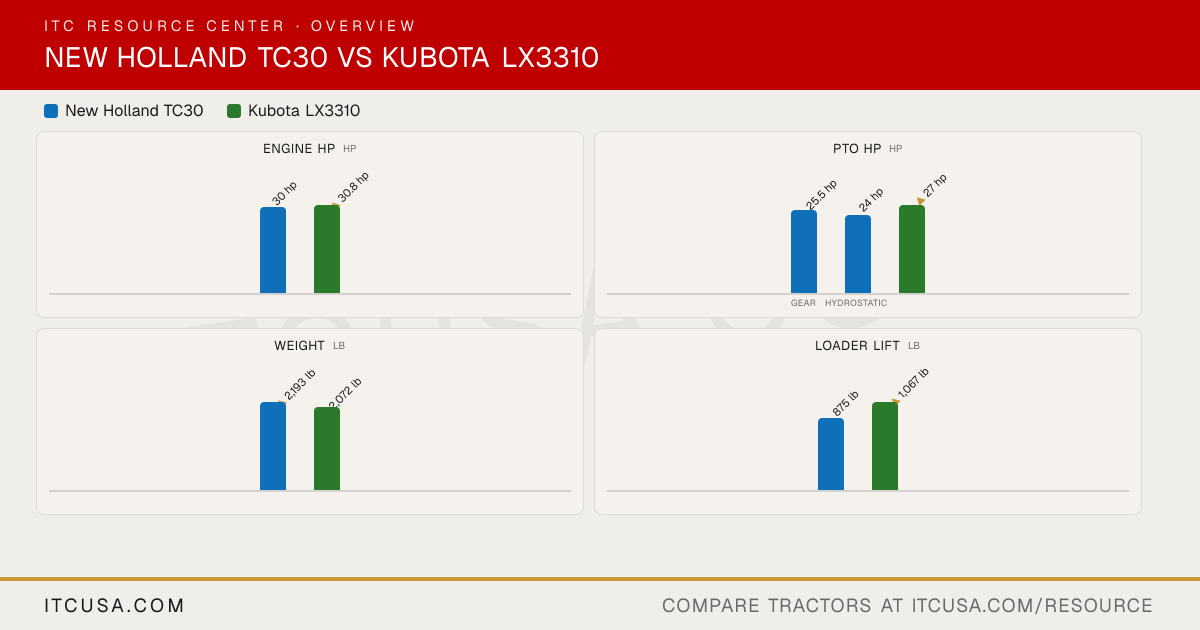

▶ EngineEngine Manufacturer Shibaura Kubota Engine Model N843 V1505-CR-TE5-D36R1 Engine Type 3-cylinder naturally aspirated diesel E-CDIS, liquid cooled, 4-cylinder, diesel No. of Cylinders 3 4 Displacement 91.3 in³ 91.5 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 30 hp 30.8 hp PTO Power Gear: 25.5 hp; Hydrostatic: 24 hp 27 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Pressurized radiator Air Cleaner Not Published 6.0 in Dual paper element Fuel System Not Published Common Rail System (CRS) Alternator Not Published 60 A, 12 V ▶ HydraulicsPump Type Gear Dual pump Implement Flow 6.2 gpm 5.0 gpm Steering Flow 3.8 gpm 3.7 gpm Total Hydraulic Flow 10.0 gpm (6.2 + 3.8, computed) 8.7 gpm Overall Hydraulic Pump Flow 10.0 gpm (6.2 + 3.8, computed) 8.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 No. of Optional Remote Valves Not Published Optional, up to 2 ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 7.1 gal Coolant Capacity Not Published 4.5 qt Crankcase Capacity Not Published 5.0 qt Transmission / Hydraulic System Capacity Not Published 4.0 gal Front Axle Fluid Capacity Not Published 5.0 qt ▶ PTO & HitchPTO Type Live (FWD); transmission-driven (2WD gear) Independent PTO Rear Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm 540 rpm Mid-PTO Availability Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm 2500 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity Not Published 2139 lb Hitch Lift Capacity (at 24”) 1,635 lb 1676 lb Lift Control Type Not Published Position control valve ▶ Transmission & DrivetrainTransmission Type Gear: 9x3; Hydrostatic: 3-range (FWD only) Hydrostatic transmission No. of Speeds Gear: 9F/3R; Hydrostatic: 3 ranges 3 ranges Max Travel Speed (Forward) Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires) 13.6 mph Max Travel Speed (Reverse) Not Published 10.3 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock (heel pedal) Differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydraulic power steering Brakes Wet disc Multi-plate wet disc Seat Suspension & Adjustability Padded contoured seat on an inclined track Deluxe high-back suspension seat Front Axle Type FWD (standard); 2WD (optional) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1100 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 2WD, ag tires: 108.9 in; FWD, R4 tires: 111.4 in (both with 3-point hitch raised) 101.8 in (without 3-point hitch) Overall Width 54.3 in (minimum, ag tires); 62 in (R4 tires) 53.7 in Wheelbase 63.0 in 65.6 in Ground Clearance Not Published 14.6 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brake applied) Height to Top of ROPS 82.3 in (R4 tires) 88.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 84.6 in ▶ WeightTractor Weight (Base) 2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear) 2072 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5 R1 Agricultural, R4 Industrial, R14 R1 Agricultural - Front Not Published 7.0-12 R1 Agricultural - Rear 11.2x24 12.4-16 R3 Turf - Front 24x8.50-14 24x8.50-14 R3 Turf - Rear 13.6x16 13.6-16 R4 Industrial - Front 25x8.50-14 23X8.50-14 / 25X8.50-14 R4 Industrial - Rear 15x19.5 12.4-16 / 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT)) Loader Model 7308 LA535 Loader Lift Height 7308: 100.5 in 84 in Loader Lift Capacity (Full Height) 7308: 875 lb 1067 lb Loader Breakout Force 7308: 1,602 lb 2245 lb ▶ WarrantyWarranty Length & Coverage Not Published Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
