Kubota LX3310 vs New Holland TC30

Across 9 measurable specs, the Kubota LX3310 leads 5 categories to 4. Machine pages: Kubota LX3310 and New Holland TC30.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

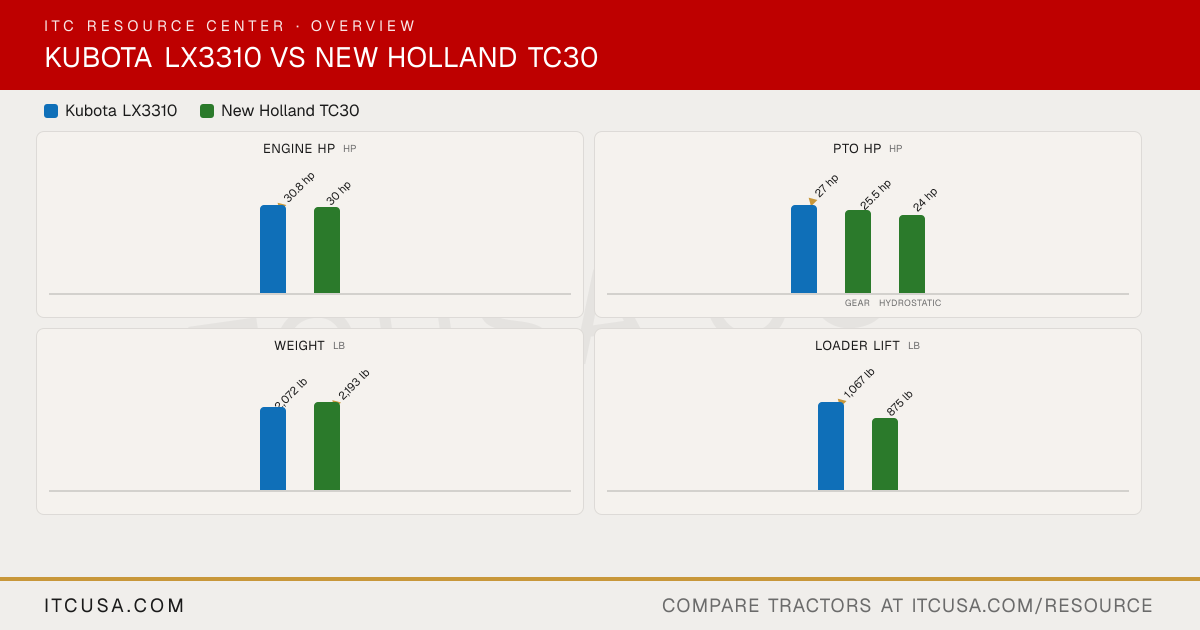

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX3310	New HollandTC30

▶Engine
Engine Manufacturer	Kubota	Shibaura
Engine Model	V1505-CR-TE5-D36R1	N843
Engine Type	E-CDIS, liquid cooled, 4-cylinder, diesel	3-cylinder naturally aspirated diesel
No. of Cylinders	4	3
Displacement	91.5 in³	91.3 in³
Rated Engine Speed	2500 rpm	2600 rpm
Engine Power (Gross)	30.8 hp	30 hp
PTO Power	27 hp	Gear: 25.5 hp; Hydrostatic: 24 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Pressurized radiator	Liquid-cooled
Air Cleaner	6.0 in Dual paper element	Not Published
Fuel System	Common Rail System (CRS)	Not Published
Alternator	60 A, 12 V	Not Published
▶Hydraulics
Pump Type	Dual pump	Gear
Implement Flow	5.0 gpm	6.2 gpm
Steering Flow	3.7 gpm	3.8 gpm
Total Hydraulic Flow	8.7 gpm	10.0 gpm (6.2 + 3.8, computed)
Overall Hydraulic Pump Flow	8.7 gpm	10.0 gpm (6.2 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	Optional, up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	7.1 gal
Coolant Capacity	4.5 qt	Not Published
Crankcase Capacity	5.0 qt	Not Published
Transmission / Hydraulic System Capacity	4.0 gal	Not Published
Front Axle Fluid Capacity	5.0 qt	Not Published
▶PTO & Hitch
PTO Type	Independent	Live (FWD); transmission-driven (2WD gear)
PTO Rear	540 rpm	Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm
Mid-PTO Availability	2500 rpm	Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2139 lb	Not Published
Hitch Lift Capacity (at 24”)	1676 lb	1,635 lb
Lift Control Type	Position control valve	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	Gear: 9x3; Hydrostatic: 3-range (FWD only)
No. of Speeds	3 ranges	Gear: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	13.6 mph	Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires)
Max Travel Speed (Reverse)	10.3 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Mechanical rear differential lock (heel pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydraulic power steering	Power steering
Brakes	Multi-plate wet disc	Wet disc
Seat Suspension & Adjustability	Deluxe high-back suspension seat	Padded contoured seat on an inclined track
Front Axle Type	Not Published	FWD (standard); 2WD (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	101.8 in (without 3-point hitch)	2WD, ag tires: 108.9 in; FWD, R4 tires: 111.4 in (both with 3-point hitch raised)
Overall Width	53.7 in	54.3 in (minimum, ag tires); 62 in (R4 tires)
Wheelbase	65.6 in	63.0 in
Ground Clearance	14.6 in	Not Published
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	Not Published
Height to Top of ROPS	88.4 in	82.3 in (R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.6 in	Not Published
▶Weight
Tractor Weight (Base)	2072 lb	2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R4 Industrial, R14	R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5
R1 Agricultural - Front	7.0-12	Not Published
R1 Agricultural - Rear	12.4-16	11.2x24
R3 Turf - Front	24x8.50-14	24x8.50-14
R3 Turf - Rear	13.6-16	13.6x16
R4 Industrial - Front	23X8.50-14 / 25X8.50-14	25x8.50-14
R4 Industrial - Rear	12.4-16 / 15-19.5	15x19.5
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))	Not Published
Loader Model	LA535	7308
Loader Lift Height	84 in	7308: 100.5 in
Loader Lift Capacity (Full Height)	1067 lb	7308: 875 lb
Loader Breakout Force	2245 lb	7308: 1,602 lb
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota LX2610/LX3310 Brush Guard Insert $259.00	None tagged yet

Find a Kubota dealer near you→Find a New Holland dealer near you→

Kubota LX3310 vs New Holland TC30: Quick Answers

Which has more horsepower, the Kubota LX3310 or the New Holland TC30?

The Kubota LX3310 leads on engine hp at 30.8 hp hp, compared to 30 hp hp for the New Holland TC30.

Which has more PTO horsepower, the Kubota LX3310 or the New Holland TC30?

The Kubota LX3310 leads on pto hp at 27 hp hp, compared to 25.5 hp hp for the New Holland TC30.

Which is heavier, the Kubota LX3310 or the New Holland TC30?

The New Holland TC30 leads on weight at 2,193 lb lb, compared to 2,072 lb lb for the Kubota LX3310.

Which has more loader lift capacity, the Kubota LX3310 or the New Holland TC30?

The Kubota LX3310 leads on loader lift at 1,067 lb lb, compared to 875 lb lb for the New Holland TC30.

Which has more three-point hitch lift capacity, the Kubota LX3310 or the New Holland TC30?

The Kubota LX3310 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,635 lb lb for the New Holland TC30.
