Bad Boy Tractors 1022 vs New Holland TC30

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland TC30 leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and New Holland TC30.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1022	New Holland TC30
Engine HP (hp)	21.5 hp	▲ 30 hp
PTO HP (hp)	15.4 hp	▲ 25.5 hp
Weight (lb)	1,433 lb	▲ 2,193 lb
Loader Lift (lb)	617 lb	▲ 875 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,635 lb
Lift Height (in)	78.5 in	▲ 100.5 in
Breakout Force (lbf)	1,253 lbf	▲ 1,602 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 10 gpm
Travel Speed (mph)	7.8 mph	▲ 14.5 mph

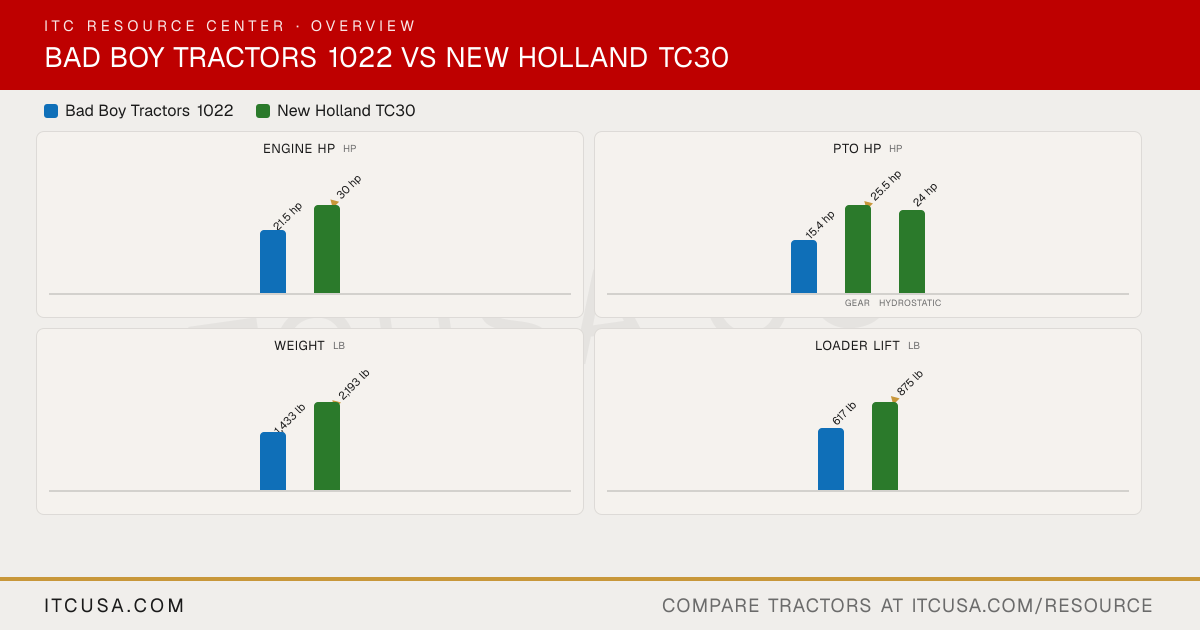

The headline numbers at a glance.

Bad Boy Tractors 1022New Holland TC30

Engine HPhp

21.5 hp

▲30 hp

PTO HPhp

15.4 hp

▲25.5 hp

24 hp

GearHydrostatic

Weightlb

1,433 lb

▲2,193 lb

Loader Liftlb

617 lb

▲875 lb

3-Pt Lift (24 in)lb

679 lb

▲1,635 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	New HollandTC30


Engine Manufacturer	Yanmar	Shibaura
Engine Model	3TNM74F	N843
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder naturally aspirated diesel
No. of Cylinders	3	3
Displacement	60.6 in³	91.3 in³
Rated Engine Speed	3200 rpm	2600 rpm
Engine Power (Gross)	21.5 hp	30 hp
PTO Power	15.4 hp	Gear: 25.5 hp; Hydrostatic: 24 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Not Published
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	Not Published

Pump Type	Single gear pump with flow divider	Gear
Implement Flow	4.17 gpm	6.2 gpm
Steering Flow	2.11 gpm	3.8 gpm
Total Hydraulic Flow	6.3 gpm	10.0 gpm (6.2 + 3.8, computed)
Overall Hydraulic Pump Flow	6.97 gpm	10.0 gpm (6.2 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	7.1 gal
Coolant Capacity	3.7 qt	Not Published
Crankcase Capacity	2.1 qt	Not Published
Transmission / Hydraulic System Capacity	3.6 gal	Not Published
Front Axle Fluid Capacity	2.6 qt	Not Published

PTO Type	Independent	Live (FWD); transmission-driven (2WD gear)
PTO Rear	540 rpm	Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	Not Published
Hitch Lift Capacity (at 24”)	679 lb	1,635 lb
Lift Control Type	Position control	Not Published

Transmission Type	Hydrostatic (HST)	Gear: 9x3; Hydrostatic: 3-range (FWD only)
No. of Speeds	2 range	Gear: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	7.8 mph	Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock (heel pedal)

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Padded contoured seat on an inclined track
Front Axle Type	Selectable 4WD	FWD (standard); 2WD (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	2WD, ag tires: 108.9 in; FWD, R4 tires: 111.4 in (both with 3-point hitch raised)
Overall Width	44.5 in	54.3 in (minimum, ag tires); 62 in (R4 tires)
Wheelbase	53.1 in	63.0 in
Ground Clearance	8.3 in	Not Published
Min. Turn Radius without Brakes	86.6 in	Not Published
Height to Top of ROPS	86.6 in	82.3 in (R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5
R1 Agricultural - Front	16x7.50-9	Not Published
R1 Agricultural - Rear	24x12.00-12	11.2x24
R3 Turf - Front	18x8.5-10	24x8.50-14
R3 Turf - Rear	26x12.00-12	13.6x16
R4 Industrial - Front	18x8.5-10	25x8.50-14
R4 Industrial - Rear	26x12.00-12	15x19.5

Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL100	7308
Loader Lift Height	78.5 in	7308: 100.5 in
Loader Lift Capacity (Full Height)	617 lb	7308: 875 lb
Loader Breakout Force	1,253 lbf	7308: 1,602 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published

Find a Bad Boy dealer near you Find a New Holland dealer near you

Bad Boy Tractors 1022 vs New Holland TC30: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the New Holland TC30?: The New Holland TC30 leads on engine hp at 30 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the New Holland TC30?: The New Holland TC30 leads on pto hp at 25.5 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which is heavier, the Bad Boy Tractors 1022 or the New Holland TC30?: The New Holland TC30 leads on weight at 2,193 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the New Holland TC30?: The New Holland TC30 leads on loader lift at 875 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the New Holland TC30?: The New Holland TC30 leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1022	New Holland TC30
Engine HP (hp)	21.5 hp	▲ 30 hp
PTO HP (hp)	15.4 hp	▲ 25.5 hp
Weight (lb)	1,433 lb	▲ 2,193 lb
Loader Lift (lb)	617 lb	▲ 875 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,635 lb
Lift Height (in)	78.5 in	▲ 100.5 in
Breakout Force (lbf)	1,253 lbf	▲ 1,602 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 10 gpm
Travel Speed (mph)	7.8 mph	▲ 14.5 mph

The headline numbers at a glance.

Bad Boy Tractors 1022New Holland TC30

Engine HPhp

21.5 hp

▲30 hp

PTO HPhp

15.4 hp

▲25.5 hp

24 hp

GearHydrostatic

Weightlb

1,433 lb

▲2,193 lb

Loader Liftlb

617 lb

▲875 lb

3-Pt Lift (24 in)lb

679 lb

▲1,635 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	New HollandTC30


Engine Manufacturer	Yanmar	Shibaura
Engine Model	3TNM74F	N843
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder naturally aspirated diesel
No. of Cylinders	3	3
Displacement	60.6 in³	91.3 in³
Rated Engine Speed	3200 rpm	2600 rpm
Engine Power (Gross)	21.5 hp	30 hp
PTO Power	15.4 hp	Gear: 25.5 hp; Hydrostatic: 24 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Not Published
Fuel System	Indirect injection	Not Published
Alternator	40 A, 12 V	Not Published

Pump Type	Single gear pump with flow divider	Gear
Implement Flow	4.17 gpm	6.2 gpm
Steering Flow	2.11 gpm	3.8 gpm
Total Hydraulic Flow	6.3 gpm	10.0 gpm (6.2 + 3.8, computed)
Overall Hydraulic Pump Flow	6.97 gpm	10.0 gpm (6.2 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	7.1 gal
Coolant Capacity	3.7 qt	Not Published
Crankcase Capacity	2.1 qt	Not Published
Transmission / Hydraulic System Capacity	3.6 gal	Not Published
Front Axle Fluid Capacity	2.6 qt	Not Published

PTO Type	Independent	Live (FWD); transmission-driven (2WD gear)
PTO Rear	540 rpm	Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	Not Published
Hitch Lift Capacity (at 24”)	679 lb	1,635 lb
Lift Control Type	Position control	Not Published

Transmission Type	Hydrostatic (HST)	Gear: 9x3; Hydrostatic: 3-range (FWD only)
No. of Speeds	2 range	Gear: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	7.8 mph	Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock (heel pedal)

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Padded contoured seat on an inclined track
Front Axle Type	Selectable 4WD	FWD (standard); 2WD (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	2WD, ag tires: 108.9 in; FWD, R4 tires: 111.4 in (both with 3-point hitch raised)
Overall Width	44.5 in	54.3 in (minimum, ag tires); 62 in (R4 tires)
Wheelbase	53.1 in	63.0 in
Ground Clearance	8.3 in	Not Published
Min. Turn Radius without Brakes	86.6 in	Not Published
Height to Top of ROPS	86.6 in	82.3 in (R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5
R1 Agricultural - Front	16x7.50-9	Not Published
R1 Agricultural - Rear	24x12.00-12	11.2x24
R3 Turf - Front	18x8.5-10	24x8.50-14
R3 Turf - Rear	26x12.00-12	13.6x16
R4 Industrial - Front	18x8.5-10	25x8.50-14
R4 Industrial - Rear	26x12.00-12	15x19.5

Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL100	7308
Loader Lift Height	78.5 in	7308: 100.5 in
Loader Lift Capacity (Full Height)	617 lb	7308: 875 lb
Loader Breakout Force	1,253 lbf	7308: 1,602 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published

Find a Bad Boy dealer near you Find a New Holland dealer near you

Bad Boy Tractors 1022 vs New Holland TC30: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the New Holland TC30?

The New Holland TC30 leads on engine hp at 30 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the New Holland TC30?

The New Holland TC30 leads on pto hp at 25.5 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the New Holland TC30?

The New Holland TC30 leads on weight at 2,193 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the New Holland TC30?

The New Holland TC30 leads on loader lift at 875 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the New Holland TC30?

The New Holland TC30 leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
