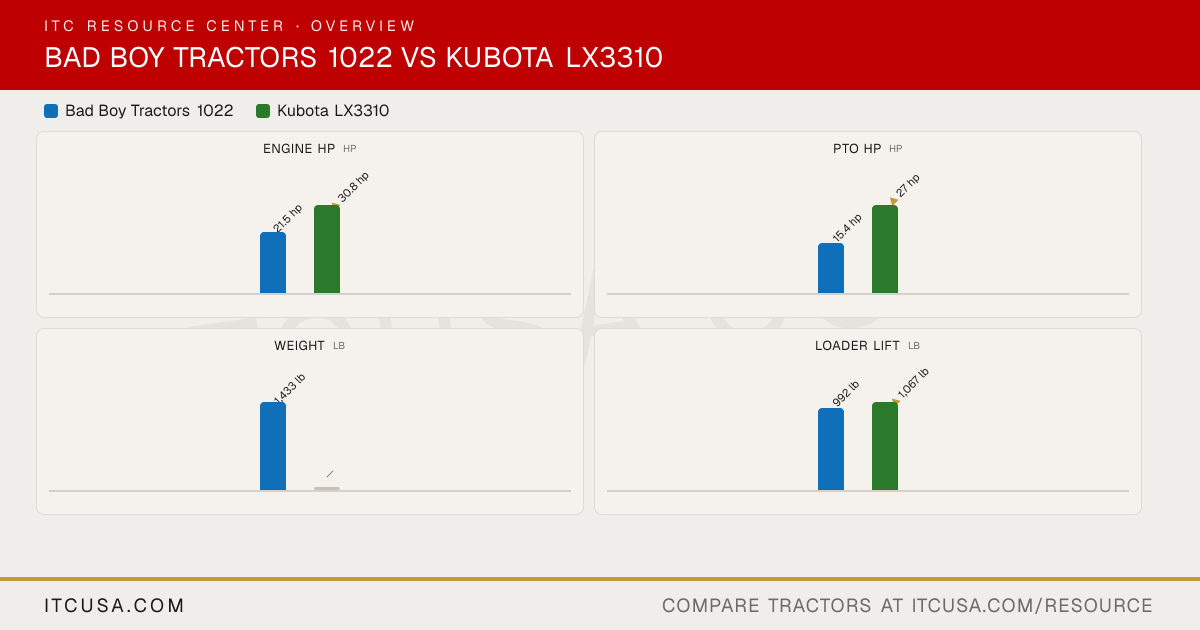

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors1022
KubotaLX3310
PTO Power
15.4 hp
27 hp
Alternator
40 A, 12 V
Not Published
Air Cleaner
Single Dry
6.0 inch Dual paper element
Engine Type
Natural Aspiration
E-TVCS, liquid cooled, 4-cylinder, diesel
Fuel System
Diesel
Not Published
Displacement
60.6 (993)
91.4 in³
No. of Cylinders
3
4
Rated Engine Speed
3,200
2500 rpm
Cooling System Type
Water cooled
Pressurized radiator
Engine Manufacturer
Yanmar
Kubota
Engine Power (Gross)
21.5 hp
30.8 hp
Engine Emissions Constraints
Tier 4
Not Published
Tractor Weight (Base)
1,433 (650)
—
Weight with ROPS and Loader
1,433 lb
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
7-year powertrain warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Single Gear Pump with Flow Divider
Dual pump
Steering Flow
2.11 gpm
Not Published
Implement Flow
4.17 (15.8)
Not Published
Total Hydraulic Flow
6.97 (26.4)
8.7 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.97 gpm (max total flow)
8.7 gpm
No. of Optional Remote Valves
Up to 1
Not Published
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position
Position control valve
Hitch Lift Capacity
1,100 lb
2139 lb
Mid-PTO Availability
Optional (2,500 rpm)
2500 rpm
Category, 3-Point Hitch
Category I (N)
Category I
Hitch Lift Capacity (at 24”)
679 lb
1676 lb
R3 Turf - Rear
TURF R 16X12.00-12
Not Published
R3 Turf - Front
TURF F 16X7.50-8
Not Published
Tire Size & Options
R1 (BAR) / R3 (TURF) / R4 (IND)
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
26X12-12
12.4-16
R4 Industrial - Front
18X8.50-10
23X8.50-14
R1 Agricultural - Rear
BAR R 24X12.00-12
12.4-16
R1 Agricultural - Front
BAR F 16X7.50-9
7.0-12
Coolant Capacity
0.9 gal
4.5 qt
Crankcase Capacity
0.48 gal
5.1 qt
Fuel Tank Capacity
6.6 gal
8.3 gal
Front Axle Fluid Capacity
2.6 qt
Not Published
Transmission / Hydraulic System Capacity
3.6 gal
4.0 gal
Loader Lift Height
72.7 in (under level bucket); 78.5 in (pivot pin)
84 in
Loader Breakout Force
1,531 lb (at pivot pin, ground level)
2245 lb
Quick Attach Loader System
SSQA
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)
992 lb (at pivot pin)
1067 lb
Clutch
Dry single plate
N/A
No. of Speeds
2 Range
3 ranges
Transmission Type
Hydrostatic transmission (HST)
Hydrostatic transmission
Max Travel Speed (Forward)
7.8 mph
13.6 mph
Max Travel Speed (Reverse)
Not Published
10.3 mph
Differential Lock & Limited Slip Options
Mechanical rear differential lock
Differential lock standard
Brakes
Wet disc
Multi-plate wet disc
Steering
Hydrostatic
Hydraulic power steering
Frame Type
Sub-compact tractor, 4WD
Not Published
Front Axle Type
Center pin front axle
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Standard adjustable seat
Deluxe high-back suspension seat
Wheelbase
53.1 (1,350)
65.6 in
Overall Width
44.5 (1,130)
53.7 in
Overall Length
94.2 (2,394)
—
Ground Clearance
8.3 in.
14.6 in
Height to Top of ROPS
86.6 (2,200)
88.4 in
Height to Top of Cab Model
Not Published
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
86.6 (2,200)
Not Published
Overall Length with 3-Point Hitch
94.2 in
Not Published
Bad Boy Tractors 1022 vs Kubota LX3310: Quick Answers
Which has more horsepower, the Bad Boy Tractors 1022 or the Kubota LX3310?
The Kubota LX3310 leads on engine hp at 30.8 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Kubota LX3310?
The Kubota LX3310 leads on pto hp at 27 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Kubota LX3310?
The Kubota LX3310 leads on loader lift at 1,067 lb lb, compared to 992 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Kubota LX3310?
The Kubota LX3310 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
