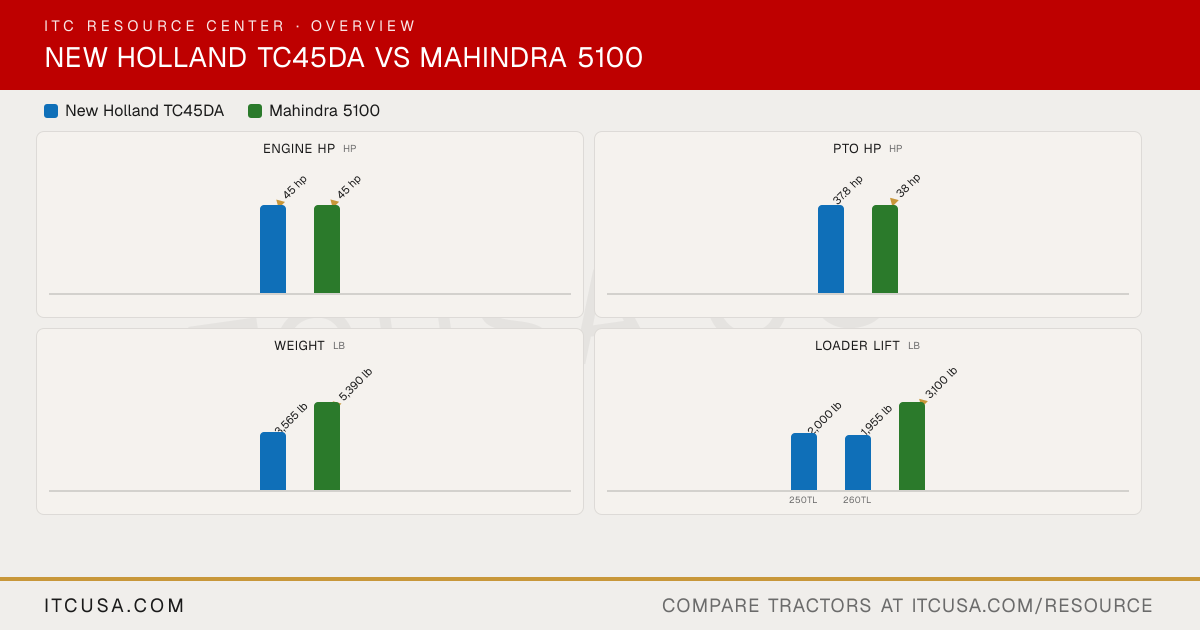

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
New HollandTC45DA
Mahindra5100
Engine Manufacturer
Shibaura
Mahindra
Engine Model
N844L
Not Published
Engine Type
4-cylinder diesel
5145: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine; 5155: Four-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine
No. of Cylinders
4
4
Displacement
135.2 in³
166.2 in³
Rated Engine Speed
2600 rpm
2300 rpm
Engine Power (Gross)
45 hp
45 hp
PTO Power
37.8 hp
38 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Dual dry element
Not Published
Fuel System
Not Published
Not Published
Alternator
40 A
55 A, 12 V
Pump Type
Gear pump
Open center; adjustable lower links with stabilizer
Implement Flow
9.8 gpm
8.71 gpm
Steering Flow
5.1 gpm
4.62 gpm
Total Hydraulic Flow
14.9 gpm
Not Published
Overall Hydraulic Pump Flow
14.9 gpm
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
1
No. of Optional Remote Valves
3 rear (optional); 2 mid (optional)
1 (optional second rear valve)
Fuel Tank Capacity
13 gal
17.1 gal
Coolant Capacity
8.4 qt
Not Published
Crankcase Capacity
6.3 qt
Not Published
Transmission / Hydraulic System Capacity
38 qt
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Independent
Independent
PTO Rear
540 rpm (1.375 in) at 2400 engine rpm
540 rpm @ 2300 rpm; 540E @ 1725 rpm
Mid-PTO Availability
Optional (with hydrostatic transmission)
Not Published
Category, 3-Point Hitch
Category I
CAT I & II w/ Telescopic Stabilizers & Flex Links
Hitch Lift Capacity
Not Published
3748 lb
Hitch Lift Capacity (at 24”)
2,330 lb
Not Published
Lift Control Type
Deluxe 3-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)
Not Published
Transmission Type
2-range hydrostatic with DualPower Hi/Lo powershift
Full Synchromesh with forward/reverse synchro shuttle & constant mesh range
No. of Speeds
Infinite (2 hydrostatic ranges, each with DualPower High/Low)
12F / 12R
Max Travel Speed (Forward)
Not Published
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Not Published
Dual Dry with Cerametallic Lining
Differential Lock & Limited Slip Options
Mechanical rear differential lock
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Tilt, power-assisted steering
Brakes
Wet disc
Fully-enclosed, 7-in Diameter, Dry Disc
Seat Suspension & Adjustability
Accommodator seat on an inclined sliding track, 3 in of vertical suspension, swivels up to 20 degrees (5 positions); cab: cloth seat with weight-adjustable suspension
Not Published
Front Axle Type
FWD (standard); SuperSteer FWD with Sensitrak automatic 4WD engagement (optional); 2WD not available
