Mahindra 5100 vs New Holland TC45DA

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 5100 leads 6 categories to 1 (1 tied). Machine pages: Mahindra 5100 and New Holland TC45DA.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 5100	New Holland TC45DA
Engine HP (hp)	45 hp	45 hp
PTO HP (hp)	▲ 38 hp	37.8 hp
Weight (lb)	▲ 5,390 lb	3,565 lb
Loader Lift (lb)	▲ 3,100 lb	2,000 lb
3-Pt Lift (24 in) (lb)	▲ 3,748 lb	2,330 lb
Lift Height (in)	▲ 122 in	106 in
Breakout Force (lbf)	▲ 5,200 lbf	3,540 lbf
Hydraulic Flow (gpm)	8.7 gpm	▲ 14.9 gpm

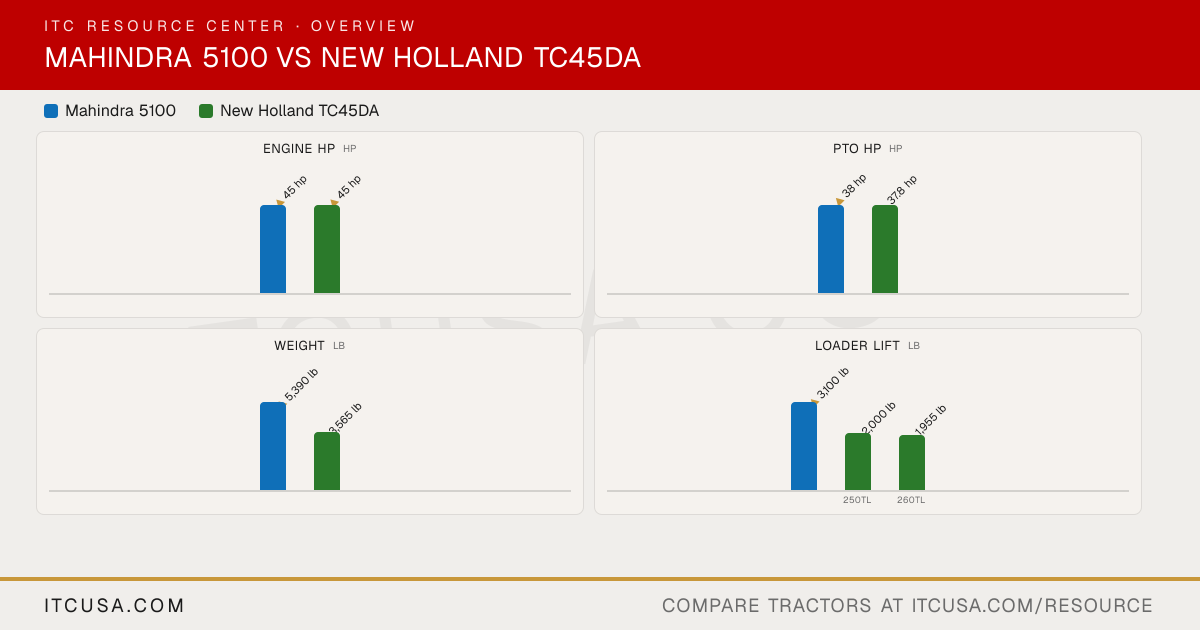

The headline numbers at a glance.

Mahindra 5100New Holland TC45DA

Engine HPhp

▲45 hp

PTO HPhp

▲38 hp

37.8 hp

Weightlb

▲5,390 lb

3,565 lb

Loader Liftlb

▲3,100 lb

2,000 lb

1,955 lb

250TL260TL

3-Pt Lift (24 in)lb

▲3,748 lb

2,330 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5100	New HollandTC45DA


Engine Manufacturer	Mahindra	Shibaura
Engine Model	Not Published	N844L
Engine Type	5145: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine; 5155: Four-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine	4-cylinder diesel
No. of Cylinders	4	4
Displacement	166.2 in³	135.2 in³
Rated Engine Speed	2300 rpm	2600 rpm
Engine Power (Gross)	45 hp	45 hp
PTO Power	38 hp	37.8 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Not Published	Dual dry element
Fuel System	Not Published	Not Published
Alternator	55 A, 12 V	40 A

Pump Type	Open center; adjustable lower links with stabilizer	Gear pump
Implement Flow	8.71 gpm	9.8 gpm
Steering Flow	4.62 gpm	5.1 gpm
Total Hydraulic Flow	Not Published	14.9 gpm
Overall Hydraulic Pump Flow	Not Published	14.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	1 (optional second rear valve)	3 rear (optional); 2 mid (optional)

Fuel Tank Capacity	17.1 gal	13 gal
Coolant Capacity	Not Published	8.4 qt
Crankcase Capacity	Not Published	6.3 qt
Transmission / Hydraulic System Capacity	Not Published	38 qt
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm @ 2300 rpm; 540E @ 1725 rpm	540 rpm (1.375 in) at 2400 engine rpm
Mid-PTO Availability	Not Published	Optional (with hydrostatic transmission)
Category, 3-Point Hitch	CAT I & II w/ Telescopic Stabilizers & Flex Links	Category I
Hitch Lift Capacity	3748 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	2,330 lb
Lift Control Type	Not Published	Deluxe 3-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)

Transmission Type	Full Synchromesh with forward/reverse synchro shuttle & constant mesh range	2-range hydrostatic with DualPower Hi/Lo powershift
No. of Speeds	12F / 12R	Infinite (2 hydrostatic ranges, each with DualPower High/Low)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dual Dry with Cerametallic Lining	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Tilt, power-assisted steering	Hydrostatic power steering
Brakes	Fully-enclosed, 7-in Diameter, Dry Disc	Wet disc
Seat Suspension & Adjustability	Not Published	Accommodator seat on an inclined sliding track, 3 in of vertical suspension, swivels up to 20 degrees (5 positions); cab: cloth seat with weight-adjustable suspension
Front Axle Type	Not Published	FWD (standard); SuperSteer FWD with Sensitrak automatic 4WD engagement (optional); 2WD not available
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	Not Published	FWD: 125.2 in; SuperSteer FWD: 129.5 in
Overall Width	Not Published	66.6 in (ag tires)
Wheelbase	77.9 in	FWD: 73.5 in; SuperSteer FWD: 81.0 in
Ground Clearance	5145: 15.2 in; 5155: 16.4 in	Not Published
Min. Turn Radius without Brakes	10.8 ft	Not Published
Height to Top of ROPS	60.6 in	95 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	90.1 in (R4 tires)

Tractor Weight (Base)	5390 lb	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)
Weight with ROPS and Loader	Not Published	4,770 lb
Weight with Cab and Loader	Not Published	5,320 lb

Tire Size & Options	Not Published	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory
R1 Agricultural - Front	9.5 x 20	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16
R1 Agricultural - Rear	14.9 x 28	13.6-24 or 14.9-24
R3 Turf - Front	Not Published	2WD: 25x8.50-14; 4WD: 27x8.50-15
R3 Turf - Rear	Not Published	44x18-20
R4 Industrial - Front	10.5/80x18	10-16.5
R4 Industrial - Rear	16.9 x 24	17.5-24

Quick Attach Loader System	Not Published	Quick-Mount loader mounting; pin-on or quick-attach buckets
Loader Model	5155-4L	250TL (non SuperSteer); 260TL (with SuperSteer)
Loader Lift Height	5155-4L: 122 in	250TL: 105 in; 260TL: 106 in
Loader Lift Capacity (Full Height)	5155-4L: 3100 lb	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)
Loader Breakout Force	5155-4L: 5200 lb	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)

Warranty Length & Coverage	5-year, 3000-hour limited powertrain warranty	Not Published

Find a Mahindra dealer near you Find a New Holland dealer near you

Mahindra 5100 vs New Holland TC45DA: Quick Answers

Which has more horsepower, the Mahindra 5100 or the New Holland TC45DA?: They are effectively tied: both machines are rated at 45 hp hp for engine hp.
Which has more PTO horsepower, the Mahindra 5100 or the New Holland TC45DA?: The Mahindra 5100 leads on pto hp at 38 hp hp, compared to 37.8 hp hp for the New Holland TC45DA.
Which is heavier, the Mahindra 5100 or the New Holland TC45DA?: The Mahindra 5100 leads on weight at 5,390 lb lb, compared to 3,565 lb lb for the New Holland TC45DA.
Which has more loader lift capacity, the Mahindra 5100 or the New Holland TC45DA?: The Mahindra 5100 leads on loader lift at 3,100 lb lb, compared to 2,000 lb lb for the New Holland TC45DA.
Which has more three-point hitch lift capacity, the Mahindra 5100 or the New Holland TC45DA?: The Mahindra 5100 leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,330 lb lb for the New Holland TC45DA.

More Head-to-Heads

Category Verdict

Spec	Mahindra 5100	New Holland TC45DA
Engine HP (hp)	45 hp	45 hp
PTO HP (hp)	▲ 38 hp	37.8 hp
Weight (lb)	▲ 5,390 lb	3,565 lb
Loader Lift (lb)	▲ 3,100 lb	2,000 lb
3-Pt Lift (24 in) (lb)	▲ 3,748 lb	2,330 lb
Lift Height (in)	▲ 122 in	106 in
Breakout Force (lbf)	▲ 5,200 lbf	3,540 lbf
Hydraulic Flow (gpm)	8.7 gpm	▲ 14.9 gpm

The headline numbers at a glance.

Mahindra 5100New Holland TC45DA

Engine HPhp

▲45 hp

PTO HPhp

▲38 hp

37.8 hp

Weightlb

▲5,390 lb

3,565 lb

Loader Liftlb

▲3,100 lb

2,000 lb

1,955 lb

250TL260TL

3-Pt Lift (24 in)lb

▲3,748 lb

2,330 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5100	New HollandTC45DA


Engine Manufacturer	Mahindra	Shibaura
Engine Model	Not Published	N844L
Engine Type	5145: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine; 5155: Four-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine	4-cylinder diesel
No. of Cylinders	4	4
Displacement	166.2 in³	135.2 in³
Rated Engine Speed	2300 rpm	2600 rpm
Engine Power (Gross)	45 hp	45 hp
PTO Power	38 hp	37.8 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Not Published	Dual dry element
Fuel System	Not Published	Not Published
Alternator	55 A, 12 V	40 A

Pump Type	Open center; adjustable lower links with stabilizer	Gear pump
Implement Flow	8.71 gpm	9.8 gpm
Steering Flow	4.62 gpm	5.1 gpm
Total Hydraulic Flow	Not Published	14.9 gpm
Overall Hydraulic Pump Flow	Not Published	14.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	1 (optional second rear valve)	3 rear (optional); 2 mid (optional)

Fuel Tank Capacity	17.1 gal	13 gal
Coolant Capacity	Not Published	8.4 qt
Crankcase Capacity	Not Published	6.3 qt
Transmission / Hydraulic System Capacity	Not Published	38 qt
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm @ 2300 rpm; 540E @ 1725 rpm	540 rpm (1.375 in) at 2400 engine rpm
Mid-PTO Availability	Not Published	Optional (with hydrostatic transmission)
Category, 3-Point Hitch	CAT I & II w/ Telescopic Stabilizers & Flex Links	Category I
Hitch Lift Capacity	3748 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	2,330 lb
Lift Control Type	Not Published	Deluxe 3-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)

Transmission Type	Full Synchromesh with forward/reverse synchro shuttle & constant mesh range	2-range hydrostatic with DualPower Hi/Lo powershift
No. of Speeds	12F / 12R	Infinite (2 hydrostatic ranges, each with DualPower High/Low)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dual Dry with Cerametallic Lining	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Tilt, power-assisted steering	Hydrostatic power steering
Brakes	Fully-enclosed, 7-in Diameter, Dry Disc	Wet disc
Seat Suspension & Adjustability	Not Published	Accommodator seat on an inclined sliding track, 3 in of vertical suspension, swivels up to 20 degrees (5 positions); cab: cloth seat with weight-adjustable suspension
Front Axle Type	Not Published	FWD (standard); SuperSteer FWD with Sensitrak automatic 4WD engagement (optional); 2WD not available
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	Not Published	FWD: 125.2 in; SuperSteer FWD: 129.5 in
Overall Width	Not Published	66.6 in (ag tires)
Wheelbase	77.9 in	FWD: 73.5 in; SuperSteer FWD: 81.0 in
Ground Clearance	5145: 15.2 in; 5155: 16.4 in	Not Published
Min. Turn Radius without Brakes	10.8 ft	Not Published
Height to Top of ROPS	60.6 in	95 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	90.1 in (R4 tires)

Tractor Weight (Base)	5390 lb	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)
Weight with ROPS and Loader	Not Published	4,770 lb
Weight with Cab and Loader	Not Published	5,320 lb

Tire Size & Options	Not Published	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory
R1 Agricultural - Front	9.5 x 20	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16
R1 Agricultural - Rear	14.9 x 28	13.6-24 or 14.9-24
R3 Turf - Front	Not Published	2WD: 25x8.50-14; 4WD: 27x8.50-15
R3 Turf - Rear	Not Published	44x18-20
R4 Industrial - Front	10.5/80x18	10-16.5
R4 Industrial - Rear	16.9 x 24	17.5-24

Quick Attach Loader System	Not Published	Quick-Mount loader mounting; pin-on or quick-attach buckets
Loader Model	5155-4L	250TL (non SuperSteer); 260TL (with SuperSteer)
Loader Lift Height	5155-4L: 122 in	250TL: 105 in; 260TL: 106 in
Loader Lift Capacity (Full Height)	5155-4L: 3100 lb	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)
Loader Breakout Force	5155-4L: 5200 lb	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)

Warranty Length & Coverage	5-year, 3000-hour limited powertrain warranty	Not Published

Find a Mahindra dealer near you Find a New Holland dealer near you

Mahindra 5100 vs New Holland TC45DA: Quick Answers

Which has more horsepower, the Mahindra 5100 or the New Holland TC45DA?

They are effectively tied: both machines are rated at 45 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra 5100 or the New Holland TC45DA?

The Mahindra 5100 leads on pto hp at 38 hp hp, compared to 37.8 hp hp for the New Holland TC45DA.

Which is heavier, the Mahindra 5100 or the New Holland TC45DA?

The Mahindra 5100 leads on weight at 5,390 lb lb, compared to 3,565 lb lb for the New Holland TC45DA.

Which has more loader lift capacity, the Mahindra 5100 or the New Holland TC45DA?

The Mahindra 5100 leads on loader lift at 3,100 lb lb, compared to 2,000 lb lb for the New Holland TC45DA.

Which has more three-point hitch lift capacity, the Mahindra 5100 or the New Holland TC45DA?

The Mahindra 5100 leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,330 lb lb for the New Holland TC45DA.
