Bad Boy Tractors 4035 Cab vs New Holland TC45DA

Across 8 measurable specs, the New Holland TC45DA leads 5 categories to 3. Machine pages: Bad Boy Tractors 4035 Cab and New Holland TC45DA.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	New HollandTC45DA

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1700N4-BUTC_4	N844L
Engine Type	Vertical, 4-stroke, water-cooled diesel	4-cylinder diesel
No. of Cylinders	3	4
Displacement	104.7 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	45 hp
PTO Power	29.5 hp	37.8 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dual dry element
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Not Published	Gear pump
Implement Flow	8.2 gpm	9.8 gpm
Steering Flow	4.4 gpm	5.1 gpm
Total Hydraulic Flow	12.6 gpm	14.9 gpm
Overall Hydraulic Pump Flow	12.6 gpm	14.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	3 rear (optional); 2 mid (optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	13 gal
Coolant Capacity	1.32 gal	8.4 qt
Crankcase Capacity	1.14 gal	6.3 qt
Transmission / Hydraulic System Capacity	9.77 gal	38 qt
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm (1.375 in) at 2400 engine rpm
Mid-PTO Availability	Not Published	Optional (with hydrostatic transmission)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2,330 lb
Lift Control Type	Position control	Deluxe 3-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	2-range hydrostatic with DualPower Hi/Lo powershift
No. of Speeds	3 range (HST)	Infinite (2 hydrostatic ranges, each with DualPower High/Low)
Max Travel Speed (Forward)	18.21 mph	Not Published
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Accommodator seat on an inclined sliding track, 3 in of vertical suspension, swivels up to 20 degrees (5 positions); cab: cloth seat with weight-adjustable suspension
Front Axle Type	Selectable 4WD	FWD (standard); SuperSteer FWD with Sensitrak automatic 4WD engagement (optional); 2WD not available
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	FWD: 125.2 in; SuperSteer FWD: 129.5 in
Overall Width	56.3 in	66.6 in (ag tires)
Wheelbase	65.7 in	FWD: 73.5 in; SuperSteer FWD: 81.0 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	95 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	90.1 in (R4 tires)
▶Weight
Tractor Weight (Base)	3,551 lb	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)
Weight with ROPS and Loader	Not Published	4,770 lb
Weight with Cab and Loader	Not Published	5,320 lb
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory
R1 Agricultural - Front	7-16	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16
R1 Agricultural - Rear	11.2-24	13.6-24 or 14.9-24
R3 Turf - Front	Not Published	2WD: 25x8.50-14; 4WD: 27x8.50-15
R3 Turf - Rear	Not Published	44x18-20
R4 Industrial - Front	28x8.50-15	10-16.5
R4 Industrial - Rear	43x16.00-20	17.5-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick-Mount loader mounting; pin-on or quick-attach buckets
Loader Model	BBL400	250TL (non SuperSteer); 260TL (with SuperSteer)
Loader Lift Height	104 in	250TL: 105 in; 260TL: 106 in
Loader Lift Capacity (Full Height)	2,200 lb	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)
Loader Breakout Force	3,660 lb	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

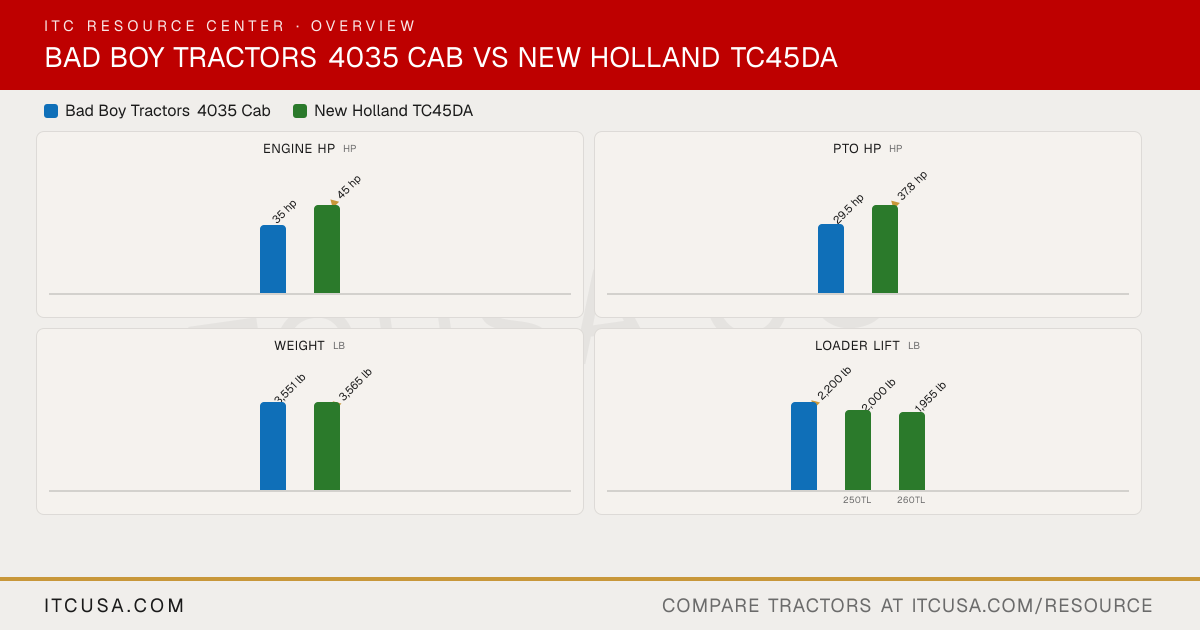

Bad Boy Tractors 4035 Cab vs New Holland TC45DA: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the New Holland TC45DA?

The New Holland TC45DA leads on engine hp at 45 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the New Holland TC45DA?

The New Holland TC45DA leads on pto hp at 37.8 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the New Holland TC45DA?

The New Holland TC45DA leads on weight at 3,565 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland TC45DA?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 2,000 lb lb for the New Holland TC45DA.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland TC45DA?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,330 lb lb for the New Holland TC45DA.
